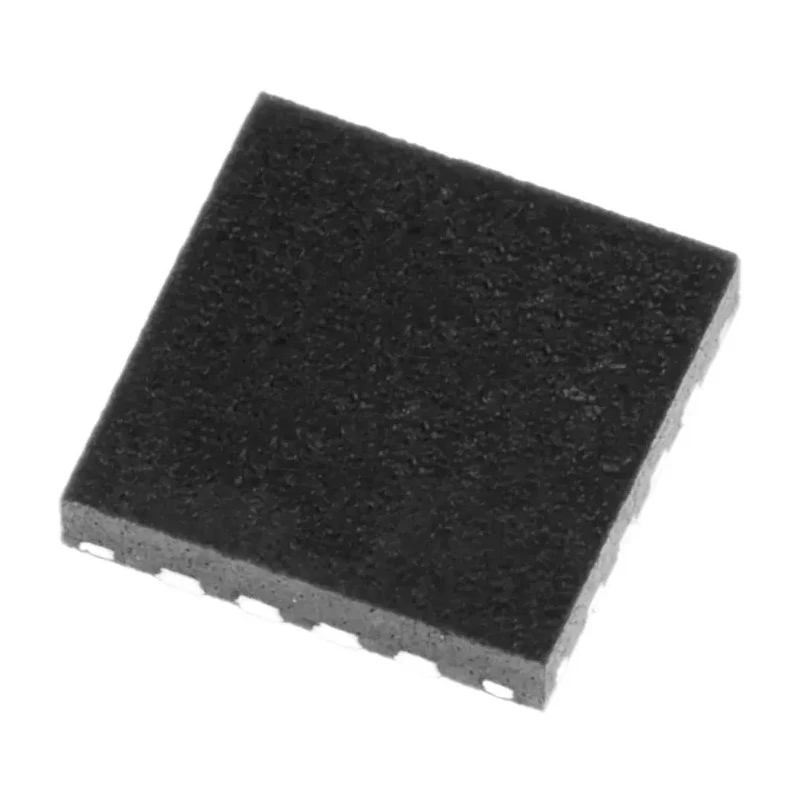

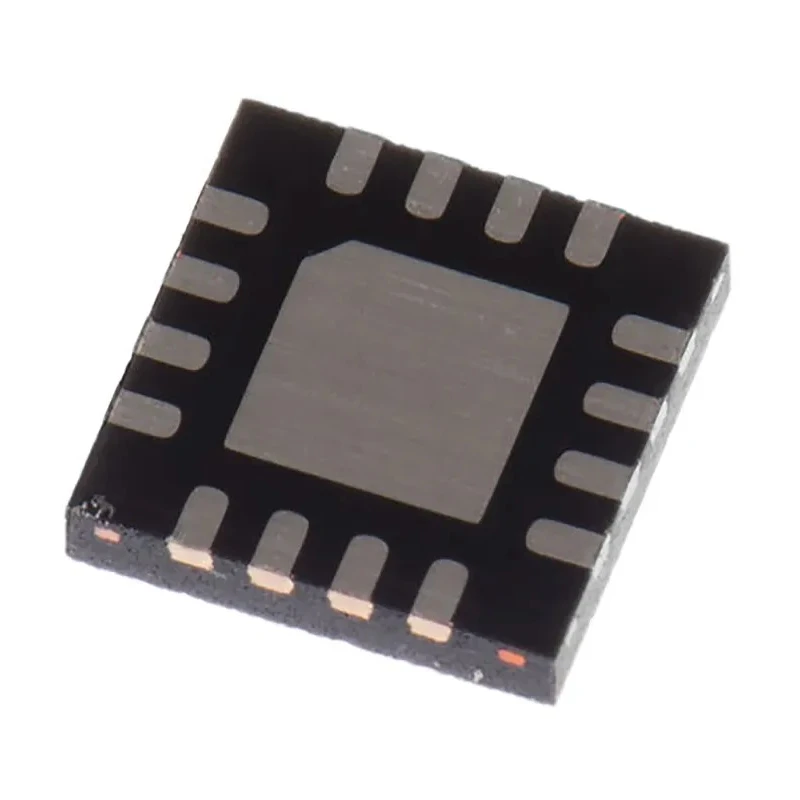

Texas Instruments Differential Amplifier 850 MHz 16-Pin QFN THS4541IRGTT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.92mm |
| Length | 3.15mm |
| Model | THS4541IRGTT |
| Mount Type | Surface |
| Series | THS4541 |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.4V |
| Minimum Supply Voltage | 3V |
| Supply Current | 20mA |
| GBP - Gain Bandwidth Product | 850MHz |
| Slew Rate | 1500V/μs |
| CMRR - Common Mode Rejection Ratio | 85dB |
Key Features
- Operates with supply voltages from 3V to 5.4V.
- Achieves a gain bandwidth product of 850 MHz.
- Has an input offset voltage of 850 μV for precision amplification.
- Features a slew rate of 1500 V/μs for fast signal response.
- Supports operation over temperatures from -40°C to 125°C.
- Provides a common mode rejection ratio (CMRR) of 85 dB for noise reduction.
- Comes in a compact 0.92 mm height and 3.15 mm length QFN surface mount package.
- Single channel design suitable for differential signal applications.
Product Description
Texas Instruments model THS4541IRGTT is a premium differential amplifier designed for high frequency applications with a gain bandwidth product of 850 MHz. It is packaged in a 16-pin QFN surface mount package with compact dimensions of 0.92 mm height and 3.15 mm length, making it suitable for space-constrained electronic systems.
This differential amplifier operates over a supply voltage range of 3 V to 5.4 V and supports operation in harsh temperature environments from -40°C up to 125°C, making it ideal for industrial, automotive, and laboratory electronics applications.
Key electrical features include an input offset voltage of 850 μV for accurate signal amplification, a high slew rate of 1500 V/μs enabling rapid signal transitions, and a common mode rejection ratio of 85 dB ensuring reliable noise suppression for sensitive circuits.
The device is compliant with RoHS directive and meets the AEC-Q100 automotive standard, verifying its robustness and suitability for automotive electronic systems. Operates with supply voltages from 3V to 5.4V. Gain bandwidth product of 850 MHz ensures high-frequency performance.
Input offset voltage of 850 μV for precision amplification. Slew rate of 1500 V/μs supports fast signal changes. Operates safely over a wide temperature range from -40°C to 125°C. Common mode rejection ratio of 85 dB reduces noise impact.
Compact 16-pin QFN surface mount packaging with height of 0.92 mm and length of 3.15 mm. Meets RoHS and automotive AEC-Q100 standards. Single channel device consuming 20 mA supply current.
This differential amplifier is widely used in industrial electronics, automotive circuits, telecommunications, and laboratory instrumentation where high precision and high frequency amplification are essential.
Explore other semiconductor amplifiers and electronic components in the Electronics & Electricals > Semiconductor > Differential Amplifier category at EnvMart for your advanced circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is 850 MHz, ensuring high-frequency performance for various applications.
It operates with supply voltages ranging from 3V to 5.4V, making it versatile for different circuit designs.
The input offset voltage for this unit is 850 μV, which contributes to its precision amplification capabilities.
The maximum operating temperature for this model is 125°C, allowing it to function in harsh environments.
This differential amplifier has a slew rate of 1500 V/μs, enabling rapid signal transitions.
The common mode rejection ratio (CMRR) is 85 dB, which helps reduce noise impact in sensitive circuits.
The QFN package has a height of 0.92 mm and a length of 3.15 mm, making it suitable for space-constrained applications.
This model is a single channel device, designed for differential signal applications.
It meets the RoHS directive and the AEC-Q100 automotive standard, verifying its suitability for automotive electronic systems.
The supply current for the THS4541IRGTT is 20 mA, which is typical for its performance specifications.
The minimum operating temperature for this model is -40°C, allowing it to be used in a wide range of environments.
This differential amplifier is widely used in industrial electronics, automotive circuits, telecommunications, and laboratory instrumentation where high precision and high frequency amplification are essential.
