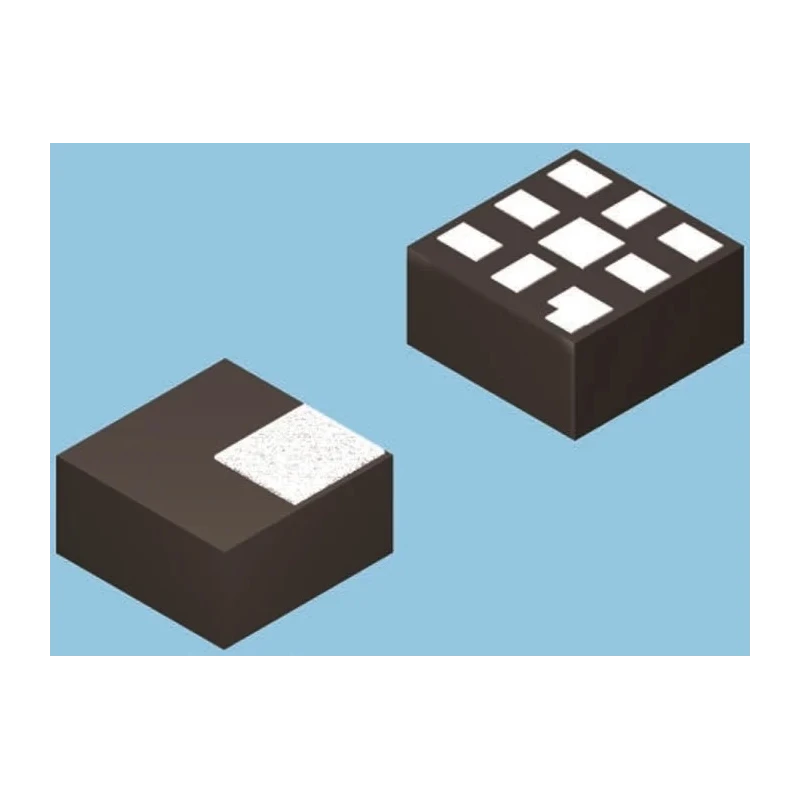

onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage, 8-Pin UMLP FXMAR2102UMX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 525μm |
| Length | 1.4mm |
| Model | FXMAR2102UMX |
| Mount Type | Surface |
| Output type | 3 State |
| Series | FXMAR2102 |
| Maximum Operating Temperature | 85°C |
| Package Type | UMLP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | FXMA |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -50mA |
| Maximum Propagation Delay Time @ CL | 7ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 50mA |
| Translation | Voltage |
Key Features
- Bi-directional voltage level translation for flexible interfacing.
- Low maximum propagation delay time of 7 nanoseconds at capacitive load.
- Surface mount device with compact 8-pin UMLP package type.
- Supports operating voltage range from 1.65V to 5.5V for diverse applications.
- Maximum low level output current of 50mA and high level output current of -50mA.
- Operates reliably within temperature range from -40°C to 85°C.
- Single logic element per chip optimized for voltage translation tasks.
- Three-state output type allowing effective bus sharing and control.
Product Description
onsemi FXMAR2102UMX is a Voltage Level Shifter Voltage Level Translator featuring 1 logic element with an 8-pin UMLP package. It supports bi-directional voltage translation and is suitable for applications requiring interfacing between different voltage domains.
This device provides a maximum propagation delay time of 7 nanoseconds at specified capacitive loads, ensuring high-speed signal translation. It is designed for surface mounting with a compact form factor, measuring 1.4 mm in length and 525 μm in height, making it suitable for space-constrained PCB layouts.
Operating voltages range from a minimum supply voltage of 1.65V up to a maximum of 5.5V. The device delivers a maximum low-level output current of 50mA and a maximum high-level output current of -50mA, supporting robust signal driving capability.
The FXMAR2102UMX operates across a wide temperature range of -40°C to +85°C, making it suitable for industrial and commercial electronics environments. It features a 3-state output type for efficient bus control and supports a single logic element per chip, optimizing it for voltage level translation tasks.
This translator IC is not designed to meet automotive standard requirements but offers reliable performance in semiconductor and power electronics applications. It is part of the FXMA logic family series by onsemi.
Bi-directional voltage level translation feature. Low propagation delay ensuring quick signal transfer. Compact 8-pin UMLP surface mount package. Wide supply voltage range from 1.65V to 5.5V. Operates between -40°C and +85°C ambient temperatures.
3-state output facilitating multiple device interfacing. Single element per chip dedicated to voltage level translation. Small package dimensions supporting compact designs. Maximum output current of ±50mA for signal integrity.
Designed for general semiconductor applications without automotive compliance.
This voltage level shifter is ideal for use in industrial, electronic, and power management systems where stable voltage interfacing is essential. Explore EnvMart’s Semiconductor and Logic IC categories for additional compatible components and advanced electronics solutions.
Explore more products in our Translator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates reliably within a temperature range of -40°C to +85°C.
This model contains a single logic element per chip, optimized for voltage translation tasks.
The maximum propagation delay time is 7 nanoseconds at specified capacitive loads.
It features a 3-state output type, allowing effective bus sharing and control.
This model measures 1.4 mm in length and 525 μm in height, making it suitable for compact PCB layouts.
The maximum low-level output current is 50mA.
The minimum supply voltage is 1.65V.
This voltage level translator is not designed to meet automotive standard requirements.
It is designed as a surface mount device.
This model is part of the FXMA logic family series.
It supports bi-directional voltage translation for flexible interfacing between different voltage domains.
