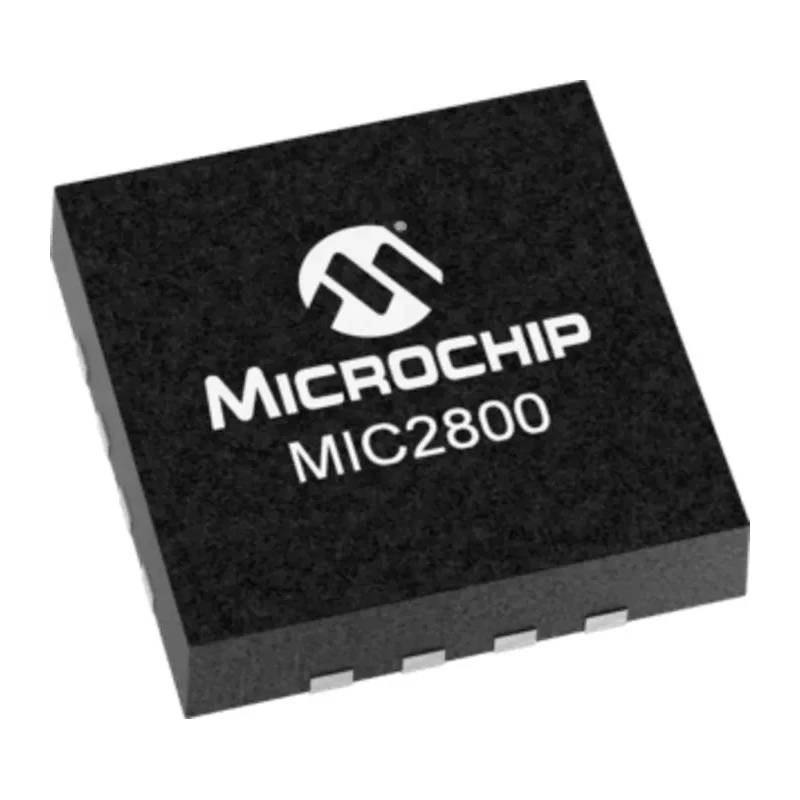

Microchip 16-Pin Voltage Controller 2.7 V to 5.5 V Input, 3 Channels, Surface Mount MIC2800-G1JJYML-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.85mm |
| Length | 3mm |
| Model | MIC2800-G1JJYML-TR |
| Mount Type | Surface |
| Series | MIC2800 |
| Maximum Operating Temperature | 125°C |
| Number Of Channels | 3 |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| LDO1 | Low input voltage is powered directly from DC/DC converter for highest efficiency |
| LowQ® Mode | no noise light load mode |
| LDO2 | 300mA output current capable |
Key Features
- Includes a DC/DC converter operating at 2 MHz and two standalone low dropout regulators.
- Provides stable output current up to 600 mA in PWM mode with over 90% efficiency.
- Features LowQ® mode with only 30 μA total IQ and minimal noise of 75 μVRMS.
- Implements integrated power-on reset and adjustable delay time for reliable operation.
- Surface mount package with 16 pins and compact dimensions of 3 mm length and 0.85 mm height.
- Thermal shutdown and current limit protection enhance device safety.
- Ideal for embedded MPU/MCU power, portable and wearable devices, low-power RF systems, and backup power applications.
- Operating temperature up to 125°C for robust industrial use.
Product Description
Microchip MIC2800-G1JJYML-TR is a high-efficiency voltage controller designed for embedded and portable electronics. This 16-pin surface-mounted device integrates a 2 MHz DC/DC converter alongside two standalone low dropout regulators (LDOs) to effectively manage power supply needs.
The DC/DC converter supports output currents up to 600 mA in PWM mode with outstanding efficiency greater than 90%. The device also features a LowQ® mode that reduces quiescent current to 30 μA and provides minimal noise of 75 μVRMS, essential for sensitive low-power and RF applications.
The LDO1 regulator is powered directly from the DC/DC converter to maximize efficiency and supports voltage conversion from 1.8 V down to 0.8 V, delivering up to 300 mA output current. The second LDO2 also supports a 300 mA output current, suitable for various subsystem power requirements.
Additional integrated features include a power-on reset circuit, adjustable delay timings, thermal shutdown, and current limit protections, ensuring reliable operation under various conditions. The device operates within a temperature range up to 125°C, making it well-suited for industrial, commercial, and automotive non-certified applications.
Common use cases include powering embedded microprocessors and microcontrollers, wearable technology, low-power RF systems, and backup power systems. The compact 16-pin package, measuring 3 mm by 0.85 mm, facilitates integration into space-constrained designs.
Includes a DC/DC converter operating at 2 MHz and two standalone LDOs for versatile power management. Supports output currents up to 600 mA in PWM mode with over 90% efficiency. LowQ® mode provides ultra-low quiescent current and minimal noise ideal for sensitive loads.
Equipped with thermal shutdown and current limit protection for device safety. Low dropout regulators deliver efficient voltage conversion with up to 300 mA output each. Surface mount package with compact dimensions for space-efficient PCB design.
Operates reliably in temperatures up to 125°C for industrial applications. Suitable for embedded MPUs, MCUs, portable/wearable devices, RF systems, and backup power.
This Microchip Voltage Controller is an excellent choice for engineers developing advanced power supply solutions in industrial, commercial, and portable electronics sectors. Explore robust semiconductor solutions from Microchip and other leading brands on EnvMart for your power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
The minimum supply voltage supported by the MIC2800-G1JJYML-TR is 2.7V.
This unit features three channels for versatile power management.
In PWM mode, the DC/DC converter can provide output currents up to 600 mA with over 90% efficiency.
The device has a length of 3 mm and a height of 0.85 mm, making it compact for space-constrained designs.
The MIC2800-G1JJYML-TR operates reliably in temperatures up to 125°C.
This model uses a surface mount type for easy integration onto PCBs.
It includes a power-on reset circuit, adjustable delay timings, thermal shutdown, and current limit protections for reliable operation.
LowQ® mode reduces quiescent current to 30 μA and minimizes noise to 75 μVRMS, making it ideal for sensitive low-power applications.
Each LDO in the MIC2800-G1JJYML-TR can deliver up to 300 mA output current.
This voltage controller complies with RoHS standards.
It is suitable for powering embedded microprocessors, portable devices, low-power RF systems, and backup power applications.
