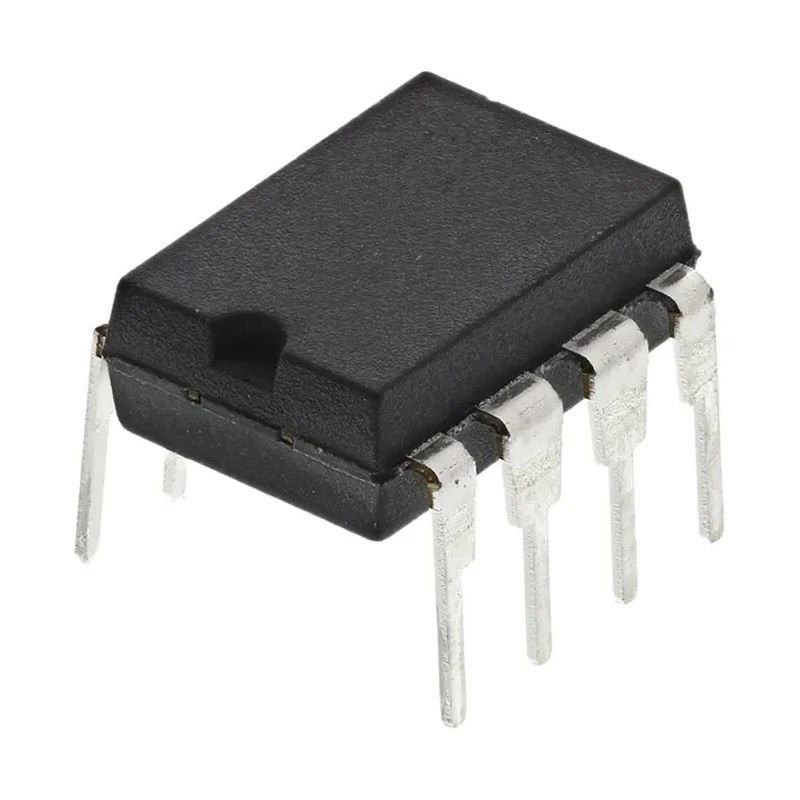

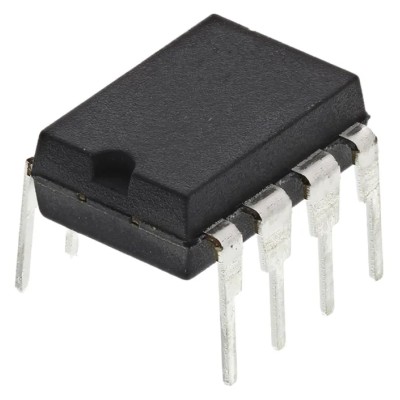

Texas Instruments 2-Channel Differential Line Driver, Non-Inverting, 8-Pin PDIP SN75ALS191P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 10.16mm |
| Model | SN75ALS191P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN75ALS191 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Differential Line Driver |
| Number Of Channels | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 732-0774PBrand: Texas InstrumentsManufacturers Part No.: SN75ALS191P |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -50mA |
| Maximum Propagation Delay Time @ CL | 7ns |
| Supply Current | 40mA |
| Maximum Low Level Output Current | 50mA |
Key Features
- Operates with a supply voltage range of 4.75V to 5.25V ensuring stable performance.
- Features a non-inverting differential output for precise signal integrity.
- Designed for through-hole mounting with an 8-pin PDIP package type.
- Supports two channels to handle multiple differential signal lines.
- Maximum propagation delay time is 7ns at capacitive load, optimizing signal timing.
- Operates within temperature range of 0°C to 70°C suitable for various applications.
- Has a supply current of 40mA to maintain efficient power consumption.
- Pin count is 8 for easy integration into electronic circuits.
Product Description
Texas Instruments SN75ALS191P is a 2-channel differential line driver designed for use in electronic applications requiring differential signal transmission and reception. Featuring a non-inverting output, this device operates at supply voltages from 4.75V to 5.25V, making it suitable for standard digital logic levels.
The device is housed in a through-hole 8-pin PDIP package, allowing easy mounting on printed circuit boards in industrial, laboratory, and manufacturing environments. Its compact form factor with dimensions of 10.16mm length, 6.6mm width, and 5.08mm height supports space-constrained designs.
With a maximum propagation delay time of just 7ns at capacitive load, the SN75ALS191P ensures timely transmission of signals with minimal distortion. It supports dual differential channels, making it ideal for RS-422 line transmitters and similar communication standard applications where noise immunity and signal integrity are vital.
The driver offers maximum output currents of -50mA for high-level signals and 50mA for low-level signals, providing robust drive capability. Its operational temperature range from 0°C to 70°C suits a wide variety of industrial and commercial environments.
This differential line driver is widely used in electronics, communications, automation, and data acquisition systems, especially for transmitting balanced signals over long cables. Its through-hole mounting package facilitates easy repair and prototyping in lab and production settings.
Operates reliably across industrial temperature range from 0 to 70 degrees Celsius. Supports differential signaling for noise reduction and signal integrity. Compact 8-pin PDIP package for through-hole PCB mounting. Provides two independent channels for dual line driving applications.
Low propagation delay ensures timely signal transmission. Meets RS-422 specifications for line transmitter applications. Consistent supply voltage requirement between 4.75V and 5.25V. Efficient power consumption with 40mA maximum supply current.
Robust current output capabilities for high and low states. Well-suited to a variety of electronic and communication industrial applications. Explore more Texas Instruments semiconductor products in the Differential Line Driver category at EnvMart for your industrial and electronics design needs.
