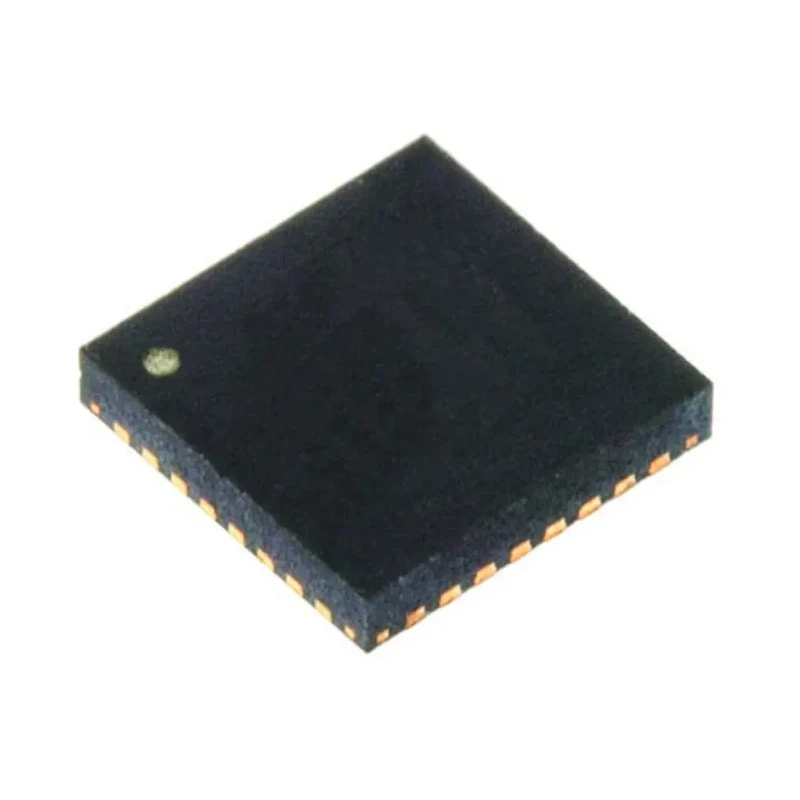

Texas Instruments Audio Codec IC 2-Channel 32-Pin QFN Surface Mount TLV320AIC3204IRHBT
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 32 bit |
| Brand | Texas Instruments |
| Height | 1mm |
| Length | 5.1mm |
| Model | TLV320AIC3204IRHBT |
| Mount Type | Surface |
| Sampling rate | 192ksps |
| Series | RHB0032E |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Audio Codec IC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Signal to Noise Ratio | 100dB |
| Interface Type | Serial-SPI, Serial-I2C |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Number of DACs | 2 |
| Number of ADCs | 2 |
Key Features
- Provides a high signal-to-noise ratio of 100 dB for clear audio performance.
- Operates with a supply voltage range from 1.8 V minimum to 3.6 V maximum.
- Supports serial SPI and I2C interface protocols for flexible control.
- Contains 2 DACs and 2 ADCs supporting 192 ksps sampling rate.
- Compact size with 5.1 mm length and 1 mm height in QFN package.
- Wide operating temperature range from -40°C to 85°C for industrial use.
- Offers 32-bit resolution ensuring precise audio signal conversion.
- Designed without automotive certification, suitable for general electronic applications.
Product Description
Texas Instruments TLV320AIC3204IRHBT Audio Codec IC is a highly integrated audio codec designed for two-channel audio applications. It comes in a 32-pin QFN surface mount package with a compact footprint measuring 5.1 mm in length and 1 mm in height, allowing for space-saving PCB designs.
Featuring a high signal-to-noise ratio of 100 dB, this codec ensures clear and high-fidelity audio conversion, suitable for consumer electronics, communication devices, and industrial systems. The device integrates 2 digital-to-analog converters (DACs) and 2 analog-to-digital converters (ADCs), supporting sampling rates up to 192 ksps and a resolution of 32 bits, facilitating detailed audio signal processing.
Powering the codec requires a single supply voltage operating between 1.8 V and 3.6 V, making it compatible with a range of power systems. It supports flexible serial interfaces, including Serial Peripheral Interface (SPI) and Inter-Integrated Circuit (I2C), enabling easy integration with microcontrollers and digital signal processors.
The operating temperature range spans from -40°C to 85°C, allowing the device to function reliably under harsh environmental conditions commonly encountered in industrial and commercial applications. Although it does not have automotive standard approval, it is well-suited for audio and video encoding and decoding tasks in various electronic products.
Key applications include industrial audio processing, communication equipment, consumer electronics, and audio-video systems where precise audio signal conversion and efficiency are critical.
Provides high-fidelity stereo audio codec functions with 2 channels. Ensures robust audio quality with 100 dB signal-to-noise ratio. Supports versatile digital control interfaces: SPI and I2C. Capable of handling 192ksps sampling rate with 32-bit resolution.
Compact and surface mount ready 32-pin QFN package. Wide temperature range support enhances reliability in industrial environments. Low power operation compatible with 1.8 to 3.6 V supply voltages.
Explore more semiconductor and audio codec IC solutions from Texas Instruments and other leading electronic component manufacturers on EnvMart for your industrial, commercial, and laboratory audio processing needs.
Explore more products in our Audio & Video Encoders & Decoders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The audio codec has a signal-to-noise ratio of 100 dB, ensuring clear audio performance.
The maximum supply voltage for this model is 3.6 V.
It supports Serial Peripheral Interface (SPI) and Inter-Integrated Circuit (I2C) protocols for flexible control.
This codec supports a sampling rate of up to 192 ksps.
The operating temperature range spans from -40°C to 85°C, making it suitable for industrial use.
The QFN package measures 5.1 mm in length and 1 mm in height.
It contains 2 digital-to-analog converters (DACs) and 2 analog-to-digital converters (ADCs).
The resolution for audio signal conversion is 32 bits.
This model uses surface mount technology.
No, this codec is designed without automotive certification and is suitable for general electronic applications.
The country of origin for this audio codec is India.
This audio codec belongs to the RHB0032E series.
