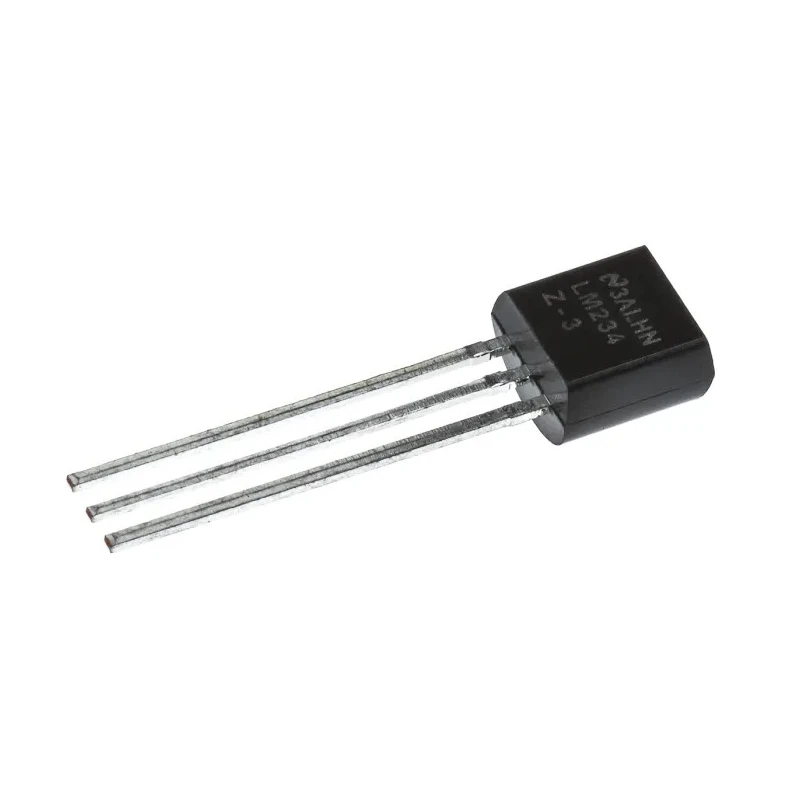

Texas Instruments 10 mA Programmable Current Source 3-Pin TO-92 40V LM234Z-3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±3 % |
| Brand | Texas Instruments |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | LM234Z-3/NOPB |
| Mount Type | Through Hole |
| Series | LM234 |
| Maximum Operating Temperature | 100°C |
| Package Type | TO-92 |
| Sub Type | Current Regulator |
| Minimum Operating Temperature | -25°C |
| Sensing Method | Current |
| Pin Count | 3 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 1V |
| Supply Current | 10mA |
Key Features
- Operates with supply voltage from 1V up to 40V.
- Provides precise 10 mA current output with ±3% accuracy.
- Compact 3-pin TO-92 through-hole package measuring 5.2 mm length and height.
- Designed for wide operating temperature from -25°C to 100°C.
- Utilizes current sensing method suitable for regulated current applications.
- LM234 series device designed for adjustable constant current supply.
- Ideal for use in electronic circuits as a current regulator and programmable current source.
- Non-compliant with automotive standards and lacks specific approvals.
Product Description
Texas Instruments LM234Z-3/NOPB is a programmable constant current source IC in a 3-pin TO-92 package. It provides a regulated 10 mA current output with ±3% accuracy, operating over a supply voltage range from 1V up to 40V. The compact form factor, measuring 5.2 mm in both length and height, supports easy through-hole mounting for a variety of electronic designs.
With an operating temperature spanning from -25°C to 100°C, this current regulator is suited for a wide range of industrial and commercial electronic applications. The device employs a current sensing method to maintain consistent output current, making it valuable for circuits requiring precise current control and temperature-based current sensing.
The LM234 series includes adjustable current sources ideal for use in instrumentation, laboratory devices, and semiconductor circuits. This particular model, LM234Z-3/NOPB, does not meet automotive standards and has no specific certifications or approvals, focusing its use on general electronics and power management.
Applications include electronic instrumentation, laboratory equipment, and power regulation within electronic components. Its sturdy TO-92 packaging facilitates integration into printed circuit boards with through-hole mounting, ensuring design flexibility and durability.
Operates reliably within -25°C to 100°C temperature range. Provides stable current regulation at 10 mA supply current. Compact and easy to mount TO-92 3-pin package. Adjustable output suited for current regulation needs.
Explore a diverse range of semiconductor current control components and programmable current sources in EnvMart’s electronic components category to meet your industrial, laboratory, and manufacturing requirements.
Explore more products in our Constant Current Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 1V up to 40V.
It provides a current output with an accuracy of ±3%.
The LM234Z-3/NOPB operates reliably within a temperature range from -25°C to 100°C.
This current source is housed in a TO-92 package, measuring 5.2 mm in both length and height.
It features a 3-pin configuration suitable for through-hole mounting.
This model is ideal for use in electronic instrumentation, laboratory equipment, and power regulation within electronic components.
It provides a stable current regulation at 10 mA supply current.
It employs a current sensing method to maintain consistent output current.
No, this model does not meet automotive standards and lacks specific certifications or approvals.
This model belongs to the LM234 series of adjustable current sources.
It supports through-hole mounting, facilitating easy integration into printed circuit boards.
The country of origin for this model is India.
