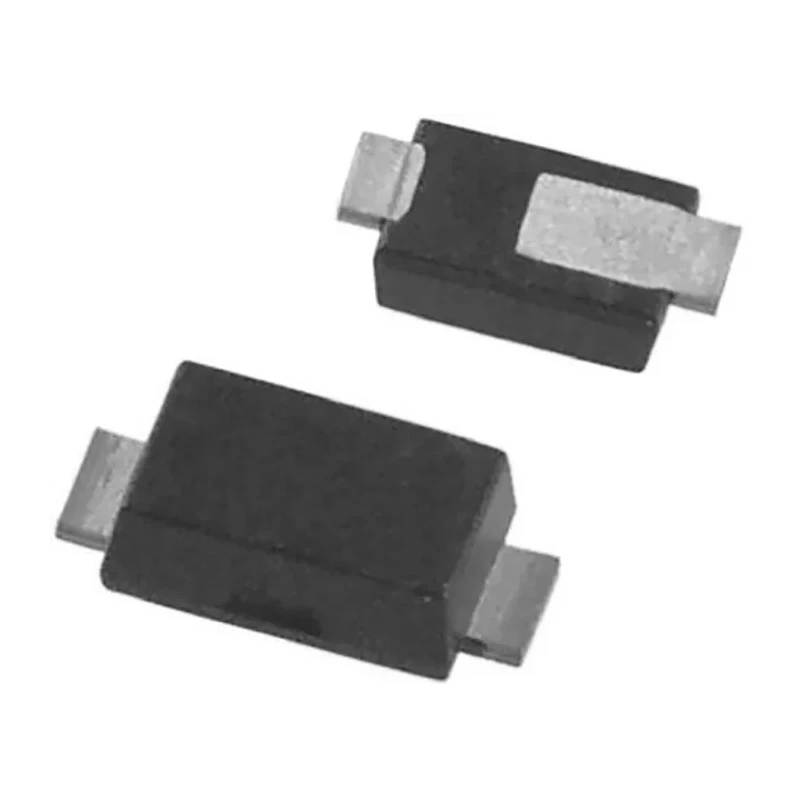

DiodesZetex 150 mA Constant Current Diode 2-Pin Surface Mount PDI123 Package AL5809-120QP1-7
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±5 % |
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | AL5809-120QP1-7 |
| Mount Type | Surface |
| Series | AL5809 |
| Maximum Operating Temperature | 150°C |
| Package Type | PDI123 |
| Sub Type | 2-Terminal Constant Current LED Driver |
| Minimum Operating Temperature | -40°C |
| Sensing Method | Low Side, High Side |
| Pin Count | 2 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 150mA |
Key Features
- Provides ±5% accuracy ensuring stable LED current output.
- Operates within a voltage range of 2.5V minimum to 60V maximum.
- Compact dimensions of 3 mm length and 1 mm height enable space-efficient PCB layouts.
- Supports both low side and high side sensing methods for versatile circuit integration.
- Rated for continuous supply current of 150 mA.
- Designed for operating temperature range from -40°C to 150°C for reliable performance.
- Package type PDI123 optimized for surface mounting technology.
Product Description
DiodesZetex AL5809-120QP1-7 is a high precision 150 mA constant current diode supplied in a 2-pin PDI123 surface mount package. It delivers consistent LED current regulation with ±5% accuracy, operating over wide voltage limits from 2.5V to 60V. The compact diode dimensions of 3 mm length by 1 mm height allow efficient use of PCB real estate in complex electronic assemblies.
This constant current diode supports both low side and high side sensing methods, providing application flexibility for LED drivers and other constant current circuit implementations. It is designed to withstand operating temperatures from -40°C to 150°C, ensuring reliable performance in demanding industrial and commercial environments.
The device is ideal for use in industrial, electronic components manufacturing, power and semiconductor applications where precision LED current drivers are needed. Offers ±5% current accuracy for effective LED brightness control.
Wide supply voltage tolerance of 2.5V to 60V suits multiple environments. Compact 3 mm x 1 mm size supports high-density PCB layouts. Low side and high side sensing compatible for circuit versatility. Rated continuous current of 150 mA for typical LED driver applications.
Operational temperature span from -40°C up to 150°C. Surface mount PDI123 package supports modern assembly techniques. Manufactured in China by DiodesZetex.
This constant current diode is a key component for electronics manufacturers and design engineers requiring precise, reliable LED current sources in industrial, electronic, and power semiconductor applications. Available in reel packaging suitable for automated PCB assembly, it enhances production efficiency.
Explore more semiconductor and diode components in EnvMart's extensive industrial electronics catalog for your project and manufacturing needs.
Explore more products in our Constant Current Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides an accuracy of ±5%, ensuring stable LED current output.
This model operates within a voltage range of 2.5V minimum to 60V maximum.
The diode has compact dimensions of 3 mm in length and 1 mm in height, making it suitable for space-efficient PCB layouts.
It is rated for a continuous supply current of 150 mA, which is typical for LED driver applications.
The diode is designed for an operating temperature range from -40°C to 150°C, allowing reliable performance in various environments.
It supports both low side and high side sensing methods, providing versatility for circuit integration.
It is supplied in a 2-pin PDI123 surface mount package, optimized for modern assembly techniques.
It is ideal for use in industrial, electronic components manufacturing, and power semiconductor applications where precise LED current drivers are needed.
This constant current diode features a pin count of 2.
It is manufactured in China by DiodesZetex.
It is available in reel packaging suitable for automated PCB assembly, which enhances production efficiency.
This model is part of the AL5809 series of constant current diodes.
