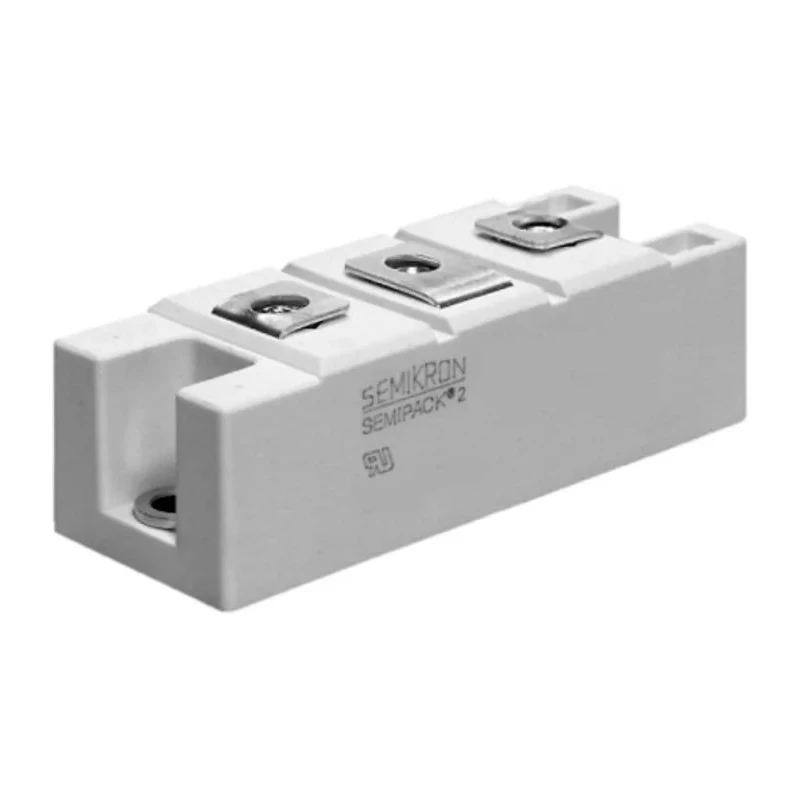

Semikron Danfoss High Voltage Diode Module 1600 V 150 A 3-Pin A-23 SKKD 162/16

Semikron Danfoss SKKD 162/16 high voltage diode module is engineered for demanding electronics applications requiring reliable high voltage and current performance. This diode module features a panel mounting type with a sturdy 3-pin configuration and compact A-23 package. It supports a continuous forward current of 150 A and a peak reverse repetitive voltage of 1600 V, making it suitable for robust semiconductor and power rectification roles.

With a maximum operating temperature of 135°C and minimum operating temperature of -40°C, the SKKD 162/16 module offers resilient operation under diverse thermal conditions. The diode operates with a series configuration and a low peak reverse current of 9 mA. It also withstands peak non-repetitive forward surge currents up to 6 kA, providing high transient tolerance.

The device incorporates a heat transfer design utilizing an aluminum oxide ceramic isolated metal baseplate, ensuring efficient thermal management for sustained use in industrial equipment. Its compact physical dimensions of 94 mm length, 34 mm width, and 30 mm height allow integration in space-constrained assemblies.

This high voltage diode module by Semikron Danfoss is well-suited for industrial manufacturing, power electronics, test instrumentation, and other electronic component applications requiring high voltage rectification efficiency and durability. It is manufactured in Slovakia under strict quality controls.

Supports maximum continuous forward current of 150 A. Rated for peak reverse repetitive voltage of 1600 V. Compact 3-pin A-23 package design for panel mounting. Wide operating temperature range from -40°C to 135°C. Series diode configuration with 9 mA peak reverse current.

High surge tolerance up to 6 kA. Maximum forward voltage of 1.5 V ensures efficiency. Aluminum oxide ceramic baseplate for thermal isolation. Manufactured in Slovakia meeting UL recognition standards. Explore more Semiconductor Diode Modules like the SKKD 162/16 within the Electronics & Electricals category at EnvMart, your trusted source for industrial electronic components.
