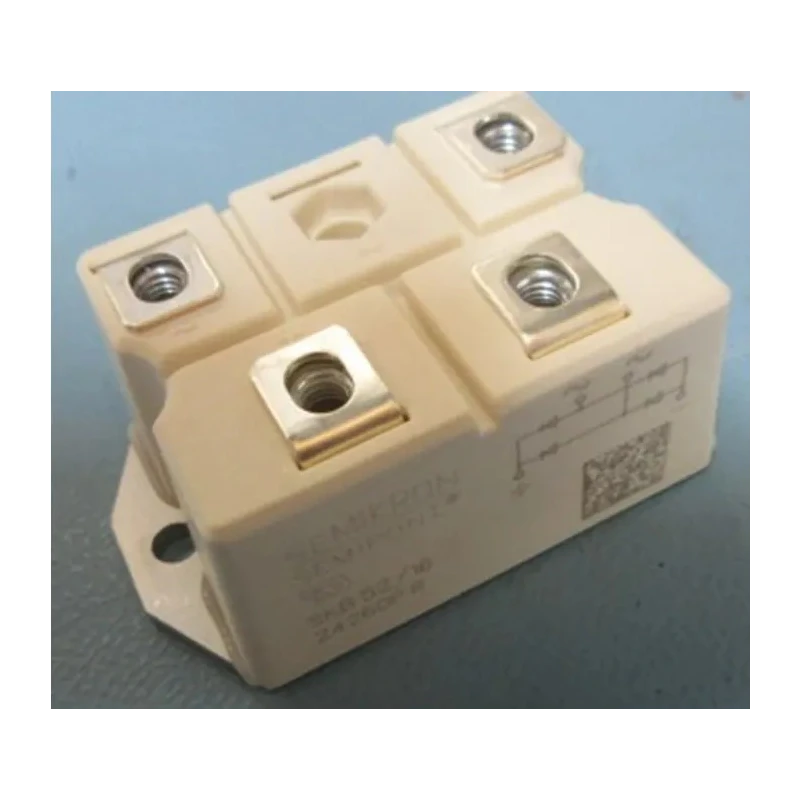

Semikron Danfoss Bridge Rectifier Module 1600 V 1.6 kA 7-Pin Single SKB 52/16

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Bridge Rectifier Module 1600 V 1.6 kA 7-Pin Single SKB 52/16

Name: Semikron Danfoss Bridge Rectifier Module 1600 V 1.6 kA 7-Pin Single SKB 52/16
Brand: Semikron Danfoss
SKU: 386942
Price: 73.45 USD
Availability: InStock



Category Bridge Rectifier Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Italy
Brand	Semikron Danfoss
Height	30mm
Length	93mm
Model	SKB 52/16
Width	20mm
Mount Type	Panel
Series	SKB 52
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	A-46
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	7
Peak Reverse Repetitive Voltage Vrrm	1600V
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.6kA
Forward Current If	150A
Peak Forward Voltage Vf	1.8V
Semikron Danfoss Bridge Rectifier Module, 1200 V 1 kA, 4-Pin SingleBrand	Semikron Danfoss

Key Features

Designed for efficient conversion of AC to DC in power applications.
Robust panel mount type with screw terminals for easy installation.
Operating temperature range from -40°C to 125°C for versatile environments.
Compact dimensions of 93 mm length, 30 mm height, and 20 mm width.
Supports continuous forward current of 150 A with low forward voltage drop.
Isolated metal case ensures safe chassis mounting and system isolation.
Suitable for industrial, manufacturing, and electronic power systems requiring reliable rectification.

Product Description

The Semikron Danfoss SKB 52/16 Bridge Rectifier Module is a high-performance semiconductor device designed for power conversion applications. It features a peak reverse repetitive voltage of 1600 V and can handle a peak non-repetitive forward surge current of 1.6 kA, making it suitable for demanding electrical environments. This single-phase module with 7 pins is housed in a robust isolated metal case that allows easy panel mounting with screw terminals for secure mechanical and electrical stability.

This bridge rectifier efficiently converts alternating current (AC) input into direct current (DC) output by utilizing an arrangement of diodes in a bridge configuration, ensuring consistent polarity output regardless of input polarity. The module operates reliably within a temperature range from -40°C to 125°C, suitable for harsh industrial conditions.

With dimensions of 93 mm length, 30 mm height, and 20 mm width, the compact design facilitates integration into power electronic assemblies with space constraints. The forward voltage drop is minimized, at 1.8 V peak, allowing efficient current conduction at a forward current of up to 150 A continuous load.

This module does not carry automotive standards but is engineered and manufactured in Italy, ensuring high quality and reliability. It is ideal for use in industrial automation, power management, HVAC systems, manufacturing equipment, and other electrical power control systems requiring robust and efficient rectification solutions.

Efficient conversion of AC to DC with high voltage and current ratings. Isolated metal case featuring easy chassis mounting and safety. Wide operating temperature range accommodates diverse industrial environments. Compact form factor allows flexible installation in power assemblies.

Reliable 7-pin configuration ensures stable electrical connections. High peak surge current capacity protects against transient overloads. Manufactured to precise standards in Italy guaranteeing quality and performance. Explore more semiconductor modules on EnvMart for your power electronics needs.
