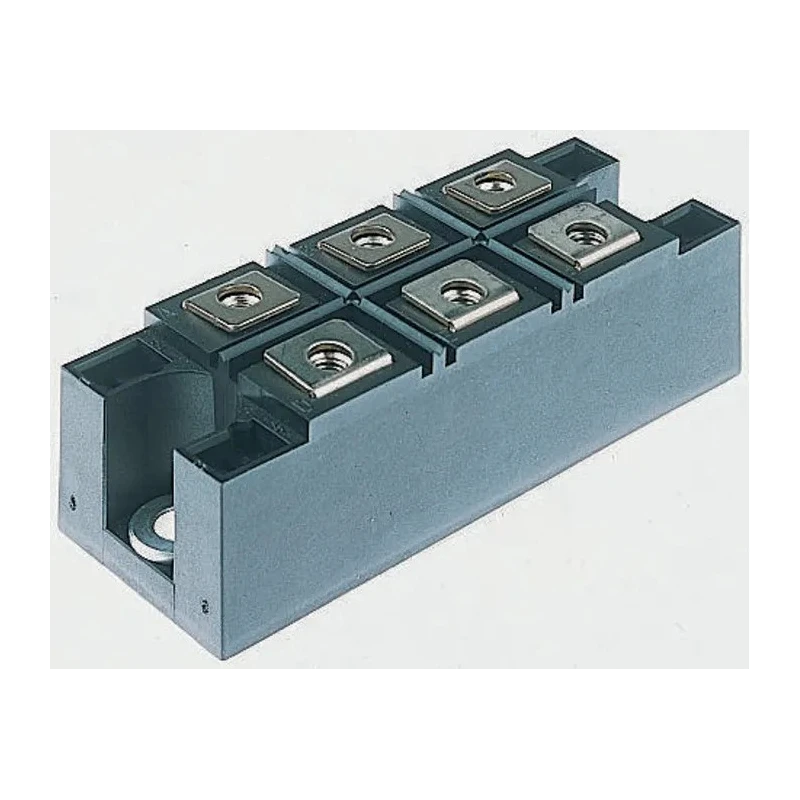

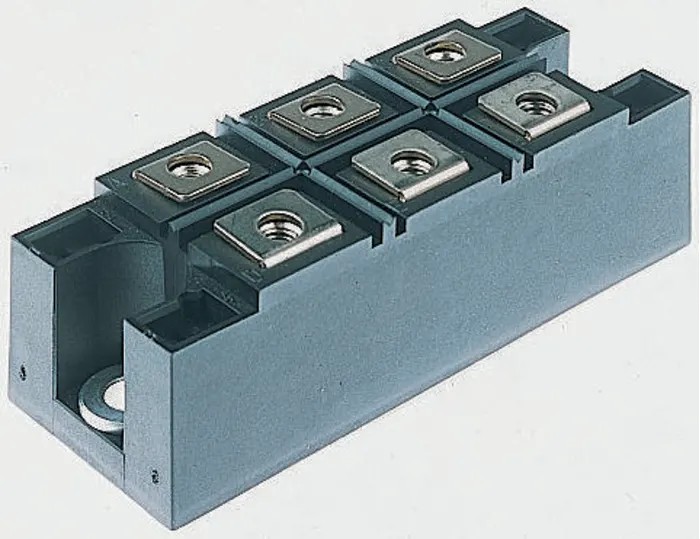

Vishay Controllable Bridge Rectifier Panel Mount 1600 V 1.18 kA 110 A INT-A-PAK VS-111MT160KPBF

Vishay VS-111MT160KPBF is a high-performance three-phase controllable Bridge Rectifier Module designed primarily for industrial and heavy-duty power conversion applications. This module features a robust INT-A-PAK six-pin package that ensures high thermal conductivity and an excellent power-to-volume ratio, making it ideal for panel mounting installations.

This bridge rectifier supports a repetitive peak reverse voltage of 1600 V and a surge current rating of 1.18 kA, suitable for demanding semiconductor power control tasks. It delivers a rated average on-state current of 110 A and features precise gate control with a maximum gate trigger current of 150 mA and a trigger voltage of 2.5 V.

The unit maintains a maximum holding current of 200 mA and a peak on-state voltage of 1.57 V, providing reliable operation with minimal losses. It has been engineered to operate effectively up to a maximum temperature of 125°C, accommodating the thermal demands of industrial environments.

Dimensional footprint is compact at 94 mm length, 35 mm width, and 30 mm height, allowing easy integration into power control panels. The INT-A-PAK package is fully compatible with other power modules in the series, delivering outstanding electrical isolation with a base plate isolating voltage of 4000 Vrms.

This rectifier module fits applications in industrial manufacturing equipment, power supplies, motor drives, and other power control circuits requiring controlled rectification. Its robust design and high current capacity make it well-suited for scenarios demanding dependable and efficient semiconductor components.

Three-phase controlled bridge power module for industrial power electronics. Panel mount INT-A-PAK six-pin package with high thermal conductivity. Rated for 1600 V repetitive peak reverse voltage and 110 A on-state current.

High surge current tolerance up to 1.18 kA for transient loads. Maximum operating temperature of 125°C for durable use. Compact size enables easy installation in constrained panel spaces. Applications include power supplies, motor controls, and industrial automation.
