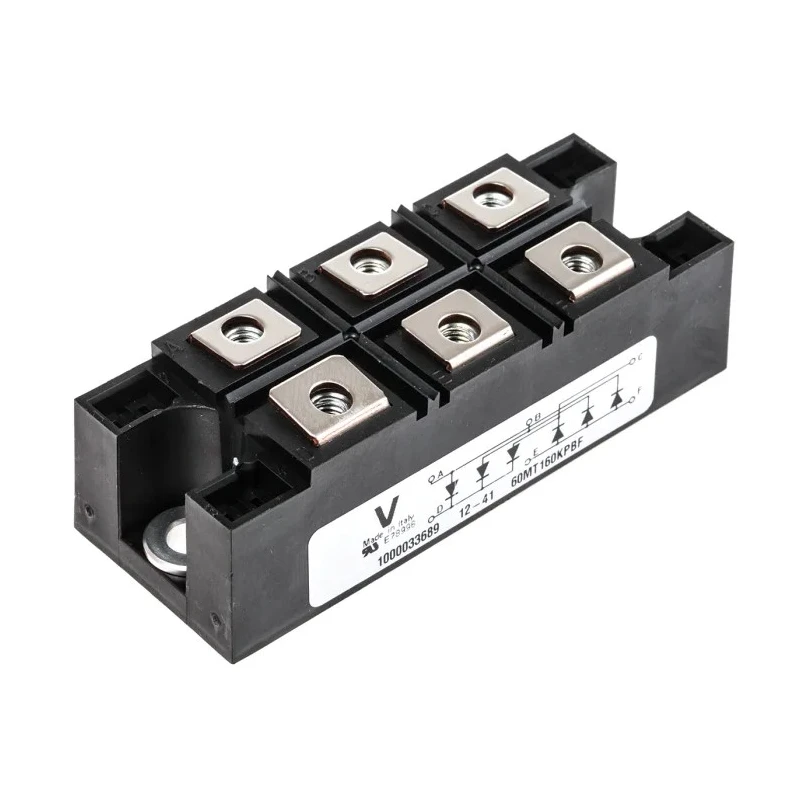

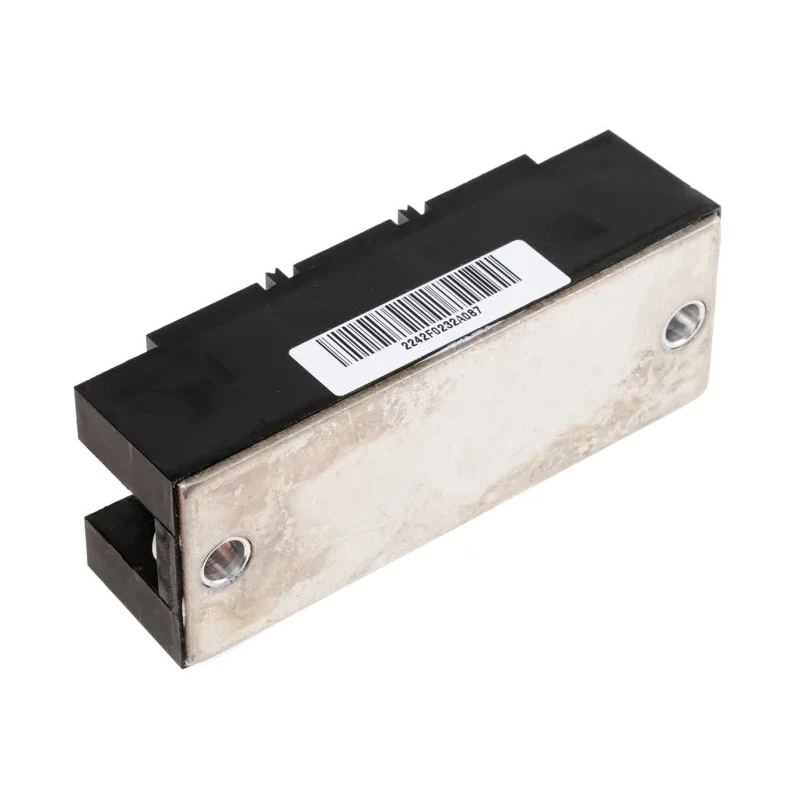

Vishay Bridge Rectifier Module 1600 V 500 A 6-Pin Single VS-60MT160KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-60MT160KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-60MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-2652Brand: VishayManufacturers Part No.: VS-60MT160KPBF |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 75A |
| Peak Forward Voltage Vf | 1.55V |
Key Features
- Three-phase bridge rectifier with screw terminal connections.
- Industry standard INT-A-PAK package with electrically insulated case.
- Maximum operating temperature of 150°C and minimum operating temperature of -40°C.
- Forward current rating of 75A and peak non-repetitive forward surge current of 500A.
- Compact dimensions of 94 mm length, 35 mm width, and 30 mm height.
- Peak reverse repetitive voltage rated at 1600 V and peak forward voltage of 1.55 V.
- Peak reverse current limited to 10 mA ensuring low leakage.
- Compatible with three-phase full-wave rectification applications.
Product Description
Vishay VS-60MT160KPBF Bridge Rectifier Module is a high-performance three-phase rectifier designed to convert Alternating Current (AC) input into Direct Current (DC) output using a six-diode bridge configuration.
This 6-pin single configuration bridge rectifier operates with a peak reverse repetitive voltage of 1600 V and can handle a forward current of 75 A continuously. The module withstands peak non-repetitive forward surge currents up to 500 A, making it robust for transient loads.
Encased in an industry standard INT-A-PAK package, the rectifier offers high thermal conductivity and an electrically insulated case, ensuring safe and reliable operation in compact electronic assemblies.
It supports operating temperatures ranging from -40°C to 150°C, suitable for demanding industrial electronic environments. The dimensions (94 mm length, 35 mm width, 30 mm height) facilitate easy panel mounting and integration.
The device features low forward voltage drop (Vf) of 1.55 V and low leakage peak reverse current (Ir) of 10 mA to enhance efficiency and minimize losses. Three-phase bridge rectifier with screw terminal connections. Robust INT-A-PAK package with electrical insulation.
Rated for 75 A forward current and 500 A surge current. Wide operating temperature range from -40°C to 150°C. Compact panel mountable design with dimensions 94 x 35 x 30 mm. High peak reverse voltage capacity of 1600 V. Low forward voltage and reverse leakage currents.
Excellent thermal conductivity for efficient heat dissipation. Designed for industrial, power electronics, and semiconductor applications.
This Vishay Bridge Rectifier Module is ideal for industrial electronics, power conversion, motor drives, and three-phase rectification tasks. It ensures dependable full-wave rectification performance with an excellent power to volume ratio.
Explore more semiconductor solutions and industrial electronic components on EnvMart for reliable power device applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this module is 150°C.
It has a peak reverse repetitive voltage rating of 1600 V.
The forward current rating is 75 A continuously.
The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height.
It uses an industry standard INT-A-PAK package.
The peak non-repetitive forward surge current is rated at 500 A.
The peak forward voltage drop is 1.55 V.
The minimum operating temperature is -40°C.
The peak reverse current is limited to 10 mA, ensuring low leakage.
This model has 6 pins.
It is suitable for three-phase full-wave rectification applications and industrial electronics.
The mounting type is panel mountable.
