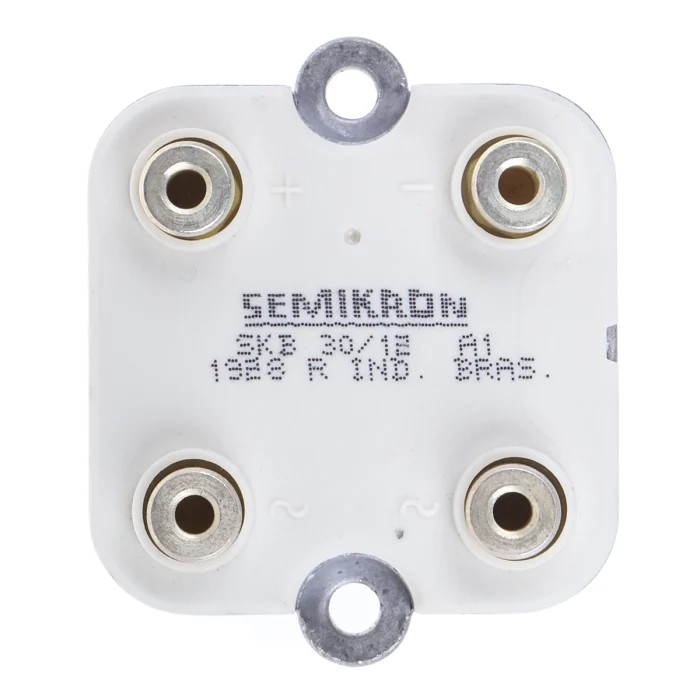

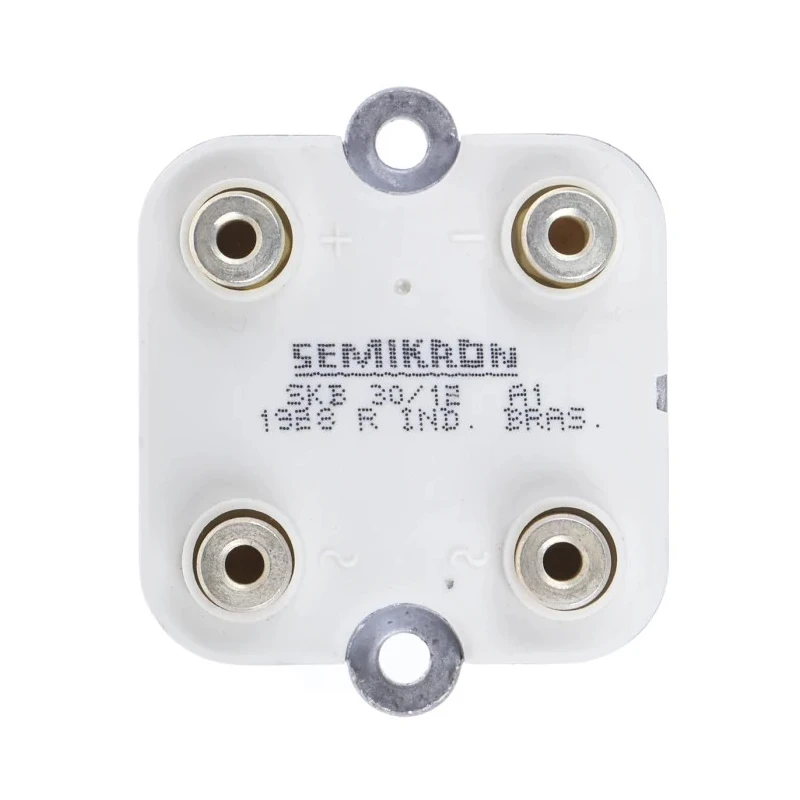

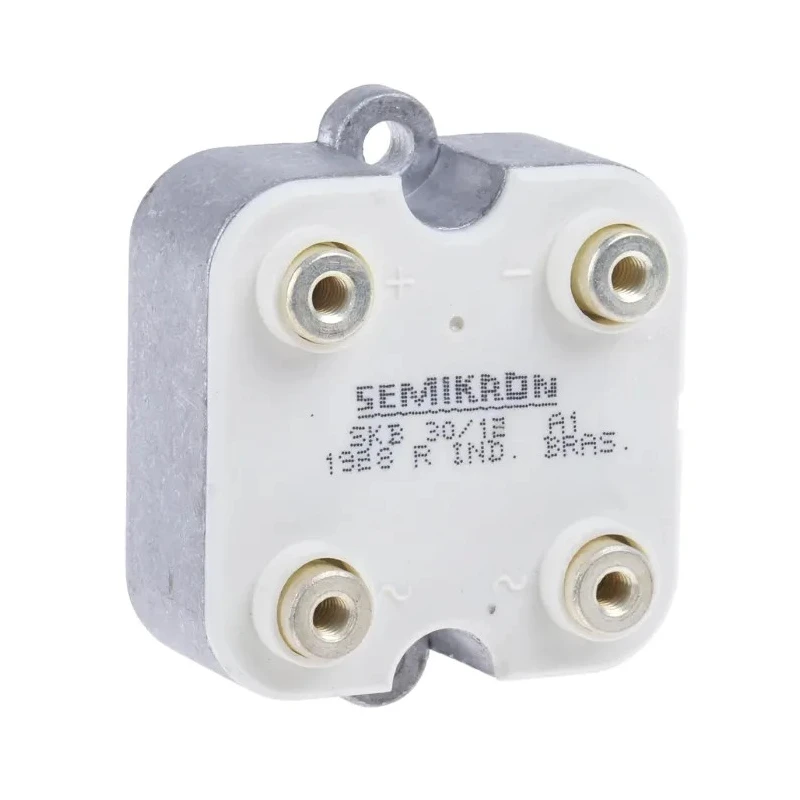

Semikron Danfoss Bridge Rectifier Module Panel Mount 4-Pin 1200 V 500 A SKB 30/12 A1

Semikron Danfoss SKB 30/12 A1 Bridge Rectifier Module is a robust single-phase semiconductor device designed for converting AC input to DC output in various industrial and electronic applications. With a peak repetitive reverse voltage rating of 1200 V and a forward current capacity of 15 A, it ensures reliable operation for power management tasks.

The module features a 4-pin single configuration suitable for panel mounting, enclosed in a durable plastic case with screw terminals and a large, isolated base plate for effective heat dissipation and easy chassis attachment. Its compact dimensions (55 mm length, 45 mm width, and 24 mm height) facilitate integration into diverse systems.

Designed to operate over a wide temperature range from -40°C to 150°C, this bridge rectifier module is engineered to withstand demanding environments while maintaining high efficiency with a low peak forward voltage of 1.8 V and minimal reverse current leakage of 5 mA. It can handle peak non-repetitive surge currents up to 500 A, allowing it to cope with transient electrical surges safely.

This power module is part of the SKB 30 series and is manufactured in Brazil, meeting quality and reliability standards necessary for industrial power electronics, laboratory equipment, renewable energy systems, and automotive electronics applications.

This bridge rectifier module operates with a peak repetitive reverse voltage of 1200 V. It features a maximum forward current of 15 A and a peak surge current of 500 A. The device is equipped with a 4-pin single-phase configuration for panel mounting.

The operating temperature range spans from -40°C to 150°C for durability under harsh conditions. The module includes a robust plastic case with screw terminals and an isolated base plate for easy chassis mounting. Dimensions measure 55 mm length, 45 mm width, and 24 mm height.

It provides a peak forward voltage of 1.8 V and a peak reverse current of 5 mA ensuring efficient rectification. Manufactured in Brazil, this model belongs to the SKB 30 series.

Ideal for use in industrial automation, power supplies, and systems requiring efficient AC to DC conversion, the Semikron Danfoss SKB 30/12 A1 offers dependable performance and ease of installation. Explore more products from Semikron Danfoss and related Bridge Rectifier Modules on EnvMart to optimize your electrical components inventory.
