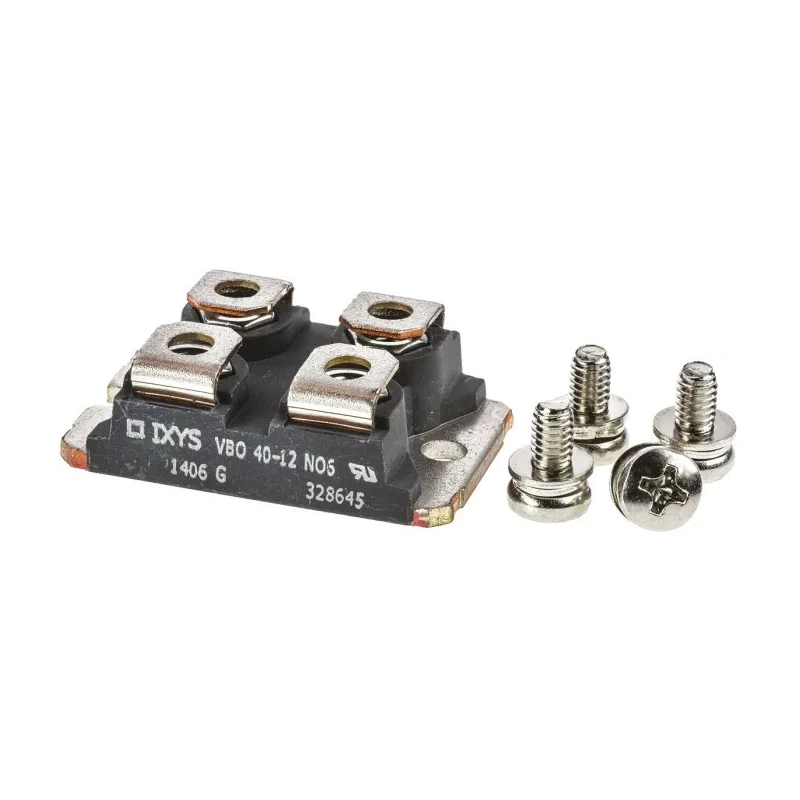

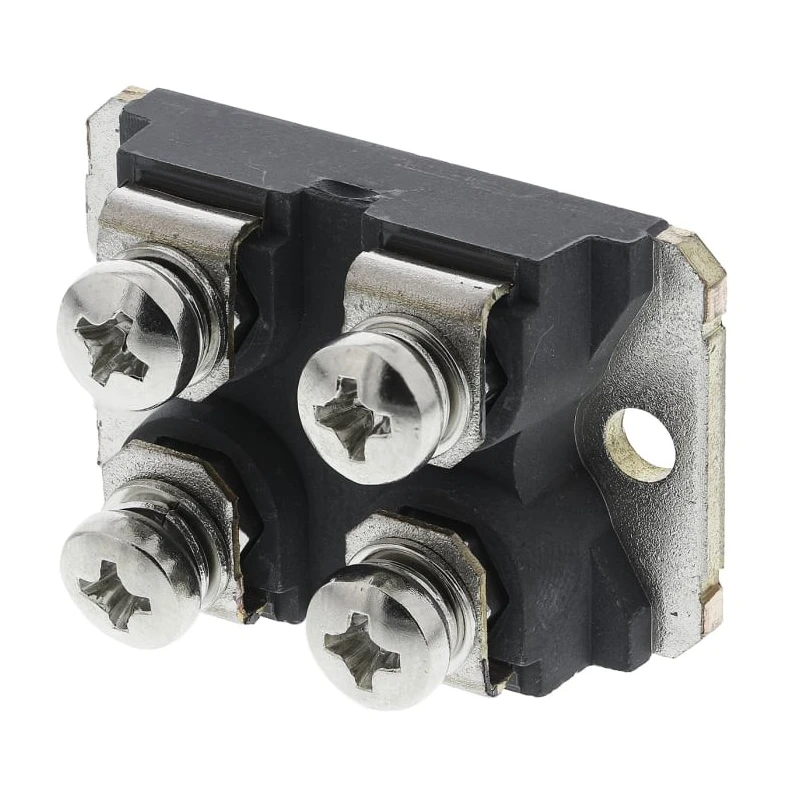

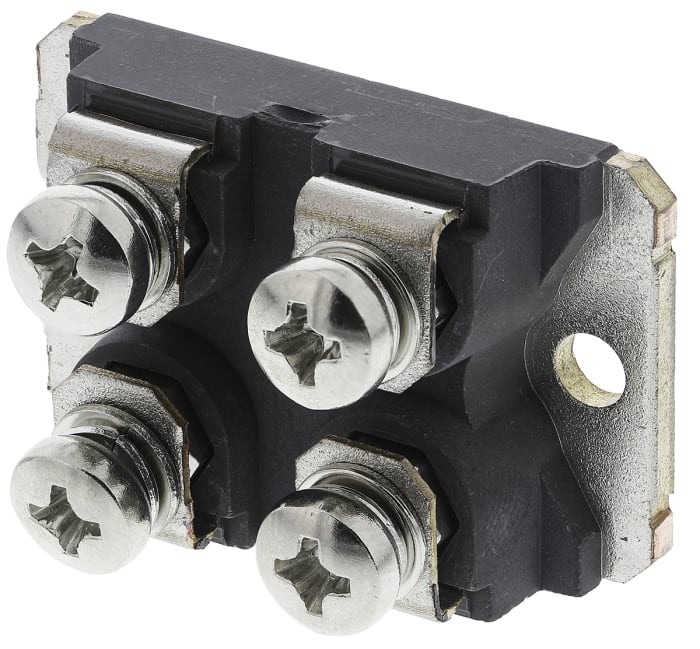

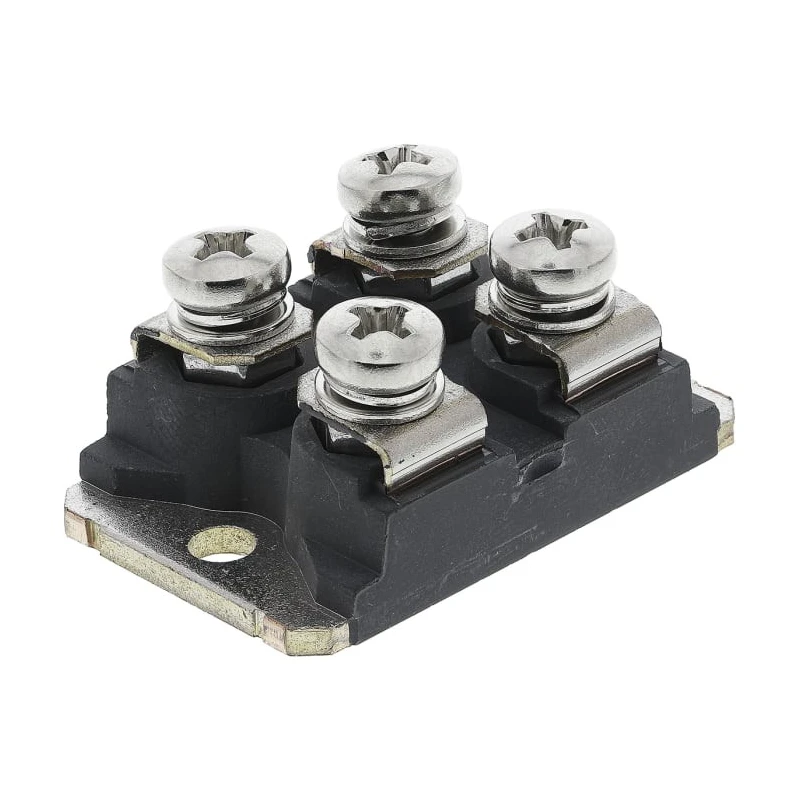

IXYS Bridge Rectifier Module 1200 V 320 A 4-Pin Single VBO40-12NO6
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.6mm |
| Length | 38.3mm |
| Model | VBO40-12NO6 |
| Width | 25.07mm |
| Mount Type | Panel |
| Series | VBO40 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Forward Current If | 40A |
| Peak Forward Voltage Vf | 1.15V |
| IXYS Bridge Rectifier Module, 800 V 320 A, 4-Pin SingleBrand | IXYS |
Key Features
- Compact SOT-227 package with panel mount type.
- Operating temperature range from -40°C to 150°C.
- Low forward voltage drop of 1.15 V ensures efficient conduction.
- Maximum forward current rating of 40 A suitable for power applications.
- Low leakage current with peak reverse current of 300 μA.
- Robust construction with improved thermal behavior using Direct Copper Bonding technology.
- Designed for converting AC input to DC output effectively in industrial and electronic circuits.
- Four-pin configuration simplifies panel mounting and installation.
Product Description
IXYS VBO40-12NO6 Bridge Rectifier Module is a high-performance semiconductor device designed for converting alternating current (AC) into direct current (DC). Featuring a 4-pin single phase configuration, it operates reliably under a peak reverse voltage of 1200 V and a forward current rating of 40 A, making it suitable for demanding power electronic and industrial applications.
This module uses a compact SOT-227 package with panel mounting, enhancing installation ease and efficiency. It supports a wide operating temperature range from -40°C to 150°C, ensuring stable performance in harsh environments.
Equipped with Direct Copper Bonding (DCB) technology, the device offers low forward voltage drop (1.15 V) and very low leakage current (300 μA), contributing to improved thermal management and energy efficiency. The peak non-repetitive forward surge current capability is high at 320 A, providing robustness to transient overloads.
Ideal for use in power supplies, industrial automation systems, and electronic converters, this bridge rectifier module ensures consistent DC output from AC sources. Its four-pin design facilitates easy integration in electrical panels and circuit assemblies.
Compact SOT-227 package with panel mount design for easy installation. Wide operating temperature range from -40°C to 150°C. Low forward voltage drop and leakage current for enhanced efficiency. High surge current capacity of 320 A for transient protection.
Direct Copper Bonding improves thermal behavior and device reliability. Operates under 1200 V peak reverse voltage and 40 A forward current. Suitable for industrial, electronic, and power conversion applications. Four-pin single-phase configuration for versatile usage.
This IXYS Bridge Rectifier Module belongs to the VBO40 series, renowned for durability and performance in semiconductor power components. It is sourced directly to meet industrial-grade standards in electronics manufacturing and maintenance.
Explore additional IXYS semiconductor modules and bridge rectifiers at EnvMart to find compatible and complementary products for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the IXYS VBO40-12NO6 bridge rectifier module is 150°C.
It has a peak reverse voltage rating of 1200 V, making it suitable for high-voltage applications.
The forward current rating of this bridge rectifier module is 40 A, which is appropriate for power applications.
This model can handle a peak non-repetitive forward surge current of 320 A, providing robustness against transient overloads.
The dimensions of this bridge rectifier module are 38.3 mm in length, 25.07 mm in width, and 9.6 mm in height.
It uses a compact SOT-227 package type, which is designed for panel mounting.
The forward voltage drop is 1.15 V, which ensures efficient conduction during operation.
The minimum operating temperature is -40°C, allowing it to function in harsh environments.
This bridge rectifier module features a 4-pin configuration, simplifying installation.
The peak reverse current is 300 μA, indicating low leakage current during operation.
It is suitable for power supplies, industrial automation systems, and electronic converters, effectively converting AC to DC.
It employs Direct Copper Bonding (DCB) technology, enhancing thermal management and device reliability.
