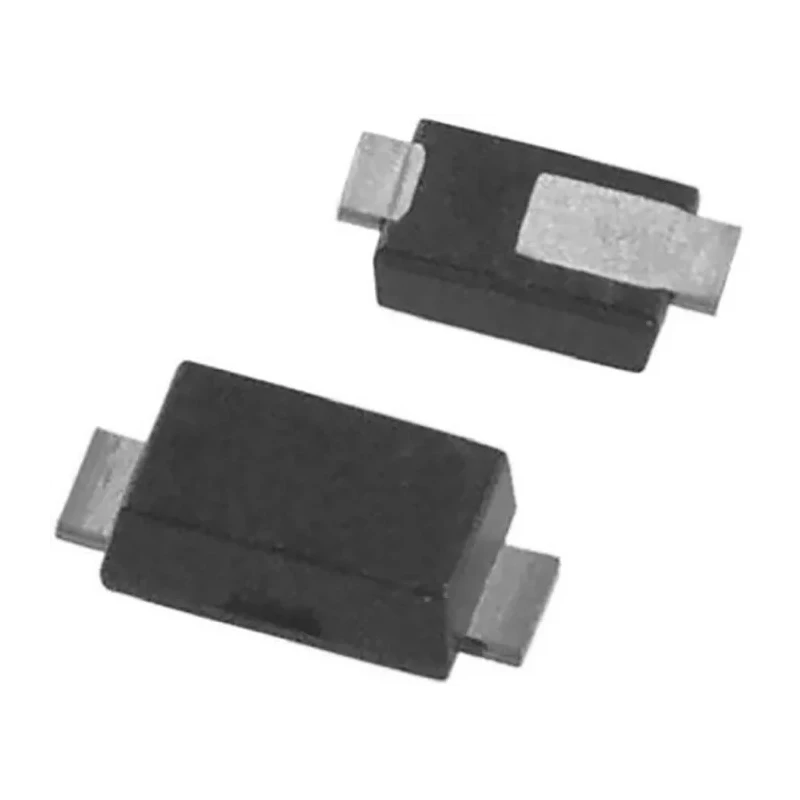

DiodesZetex 150 mA 2-Pin Surface Mount Constant Current Diode PDI123 60V AL5809-30QP1-7

DiodesZetex AL5809-30QP1-7 is a high-precision constant current diode designed for reliable operation in industrial, electronic component, and power semiconductor applications. This 2-terminal constant current LED driver delivers a stable supply current of 150 mA with ±5% accuracy, ensuring consistent performance in LED driving and current regulation roles.

Its surface-mount PDI123 package with a minimal footprint (3 mm length, 1 mm height) allows easy integration into compact PCB designs. The diode supports a wide voltage range, operating safely from 2.5V minimum to a maximum of 60V, suitable for various power supply configurations.

Robust thermal characteristics enable operation within a wide temperature range from -40°C up to 150°C, making it well-suited for demanding industrial and automotive environments (although this particular model does not comply with automotive standards).

The diode supports both low-side and high-side sensing methods, providing flexibility in circuit design for advanced LED driving and power management solutions. Maintains ±5% accuracy over operating range. Surface mount compatible 2-pin PDI123 package.

Supply current fixed at 150 mA for linear LED driving. Wide operating voltage range from 2.5V to 60V. Compact dimensions facilitate space-efficient PCB layout. High maximum operating temperature of 150°C for durability. Low temperature operation down to -40°C.

Ideal for use in industrial, power electronics, and LED driving applications.

This DiodesZetex series AL5809-30QP1-7 constant current diode meets requirements for robust semiconductor components used in electronics manufacturing, PCB assembly, and LED driver circuits. It combines precision current control with high reliability in a compact, surface mount package.
