ROHM Schottky Barrier Diode 30 V 200 mA Surface Mount SOT-23 Package BAT54AHYFHT116

ROHM BAT54AHYFHT116 is a Schottky Barrier Diode designed for small current rectification with a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V. It employs a Schottky rectifier type offering low forward voltage drop to improve efficiency in electronic circuits.

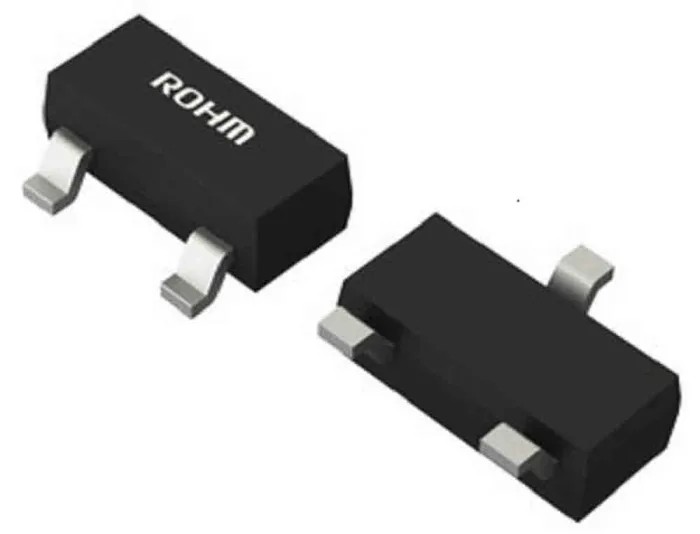

This diode is fabricated in a compact SOT-23 surface mount package, measuring 3.1 mm in length, 1.5 mm in width, and 1.15 mm in height, making it suitable for space-constrained printed circuit board (PCB) designs. It features a fast peak reverse recovery time of only 50 ns, significantly reducing switching loss, which is critical in high-frequency applications.

The device also meets the demanding automotive quality standards per AEC-Q101, ensuring high reliability in automotive electronics environments. It has a peak non-repetitive forward surge current rating of 600 mA to withstand transient overloads.

This Schottky diode is RoHS compliant, reflecting its conformance to environmental regulations and suitability for green manufacturing practices. Low forward voltage drop optimizes energy efficiency. Compact SOT-23 surface mount package for high-density PCB designs.

AEC-Q101 qualified for automotive grade applications. Robust reverse voltage protection up to 30 V. Fast switching performance with 50 ns reverse recovery time. Capable of handling surge currents up to 600 mA. Dimensions support minimal board space utilization.

Environmentally friendly RoHS compliance.

This product is widely used in industrial electronics, automotive systems, consumer electronics, and power management circuits where reliable low-voltage rectification is essential. The BAT54AHYFHT116 is an excellent choice for engineers seeking efficient and durable surface mount Schottky diodes.
