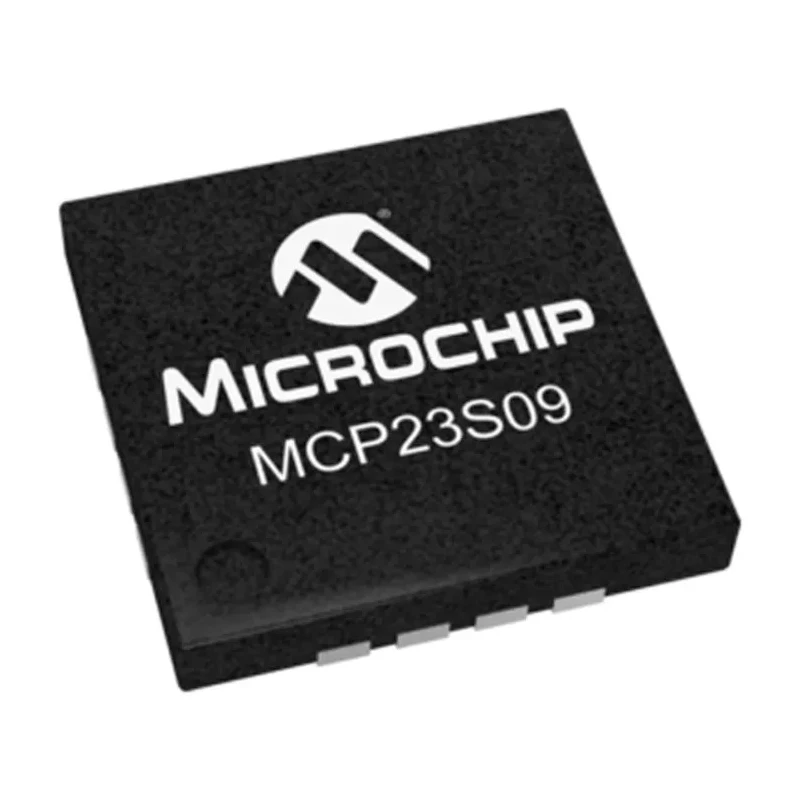

Microchip 8-Channel I/O Expander Serial-SPI QFN 16 MCP23S09-E/MG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 0.9mm |
| Length | 3mm |
| Model | MCP23S09-E/MG |
| Mount Type | Surface |
| Series | MCP23S09 |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-SPI |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Clock frequency | 10MHz |
| Number of I/O Channels | 8 |
Key Features
- Provides 8 independent input/output channels for digital signal expansion.
- Employs a Serial Peripheral Interface (SPI) for simplified communication.
- Features a low-profile 16-pin Quad Flat No-lead (QFN) package with 0.9mm height.
- Operates within a supply voltage range of 1.8V to 5.5V for versatile power compatibility.
- Clock frequency supports up to 10 MHz for fast data transfer.
- Designed for surface mount technology, suitable for compact PCB layouts.
- Functions across a wide temperature range from -40°C to 125°C for industrial applications.
- Pin count of 16 enables easy integration in electronic designs.
Product Description
Microchip MCP23S09-E/MG is a high-performance 8-channel input/output expander designed for use in embedded systems requiring additional digital I/O lines. This device utilizes a Serial Peripheral Interface (SPI) for efficient serial communication with microcontrollers, allowing expansion of digital I/O capabilities without increasing processor pin count.
Packaged in a compact 16-pin Quad Flat No-lead (QFN) surface mount package with dimensions of 3mm length and 0.9mm height, this IC is ideal for space-constrained applications. It supports operating voltages ranging from 1.8V to 5.5V and a clock frequency up to 10 MHz, enabling fast and flexible connectivity in various electronic devices and systems.
The MCP23S09-E/MG can endure harsh operating conditions, functioning between -40°C and 125°C, making it suitable for automotive, industrial, and consumer electronics environments. Its 8 I/O channels facilitate parallel interface peripherals, enhancing design flexibility for system engineers and developers.
Applications include industrial automation, embedded control systems, consumer electronics, and communication equipment where additional digital I/O expansion is necessary without compromising board space or power efficiency. The product's surface mount design supports automated assembly processes, improving manufacturing throughput.
Provides 8 independent input/output channels for digital signal expansion. Employs a Serial Peripheral Interface (SPI) for simplified communication. Features a low-profile 16-pin Quadrature Flat No-lead (QFN) package. Operates within a supply voltage range of 1.8V to 5.5V.
Supports clock frequencies up to 10 MHz. Designed for surface mount installation suitable for compact PCB layouts. Temperature range from -40°C to 125°C supports industrial-grade applications. Pin count of 16 pins to facilitate integration in electronic systems.
Manufactured in Thailand under stringent quality controls. Explore more semiconductor solutions and I/O Expander ICs at EnvMart to enhance your electronic design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 1.8V to 5.5V, providing versatile power compatibility for various applications.
The MCP23S09-E/MG provides 8 independent input/output channels for digital signal expansion.
It supports a maximum clock frequency of up to 10 MHz for fast data transfer.
This model employs a Serial Peripheral Interface (SPI) for simplified communication with microcontrollers.
The device features a length of 3mm and a height of 0.9mm, making it suitable for compact PCB layouts.
It functions across a wide temperature range from -40°C to 125°C, suitable for industrial applications.
This unit is packaged in a low-profile 16-pin Quad Flat No-lead (QFN) package.
Yes, it is designed for surface mount installation, making it ideal for automated assembly processes.
Applications include industrial automation, embedded control systems, consumer electronics, and communication equipment.
This model has a pin count of 16, facilitating easy integration into electronic designs.
It is manufactured in Thailand under stringent quality controls.
This model belongs to the MCP23S09 series, which includes various I/O expander options.
