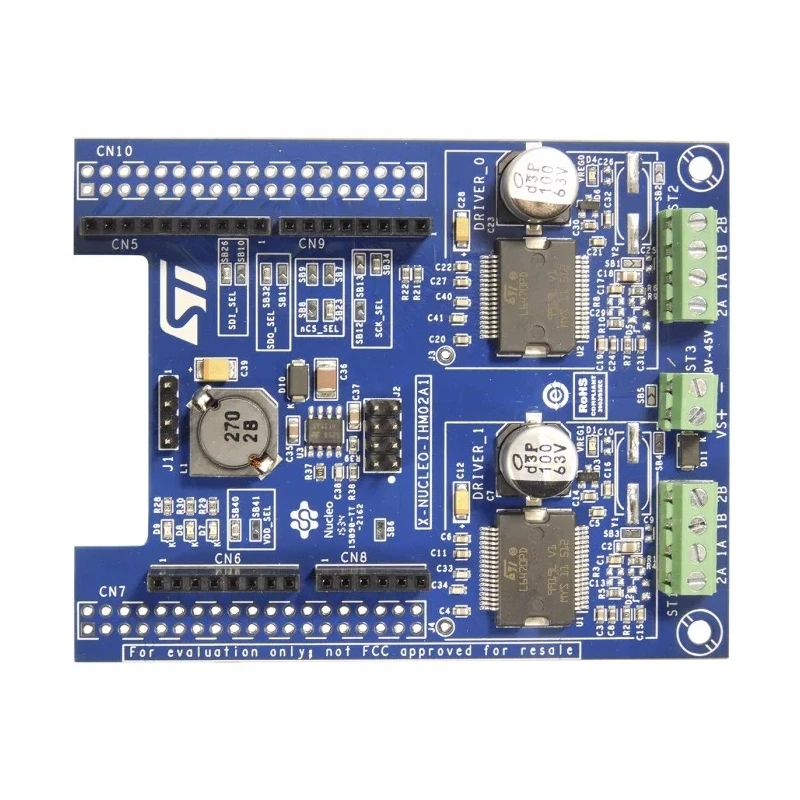

STMicroelectronics Two Axis Stepper Motor Driver Expansion Board for STM32 Nucleo X-NUCLEO-IHM02A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IHM02A1 |
| Interfaces | USB cable already used to supply the STM32 Nucleo board |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | X-NUCLEO-IHM02A1 |
| Kit Name | Two Axis Stepper Motor Driver Expansion Board |
Key Features
- Based on dual L6470 micro stepping motor drivers for precise stepper motor control.
- Enables driving one or two stepper motors with integrated high-end commands via SPI.
- Supports USART communication for PC command reception and status sending.
- Compatible with Arduino UNO R3 connectors and ST morpho connectors for versatile integration.
- Uses standard Type A to Mini-B USB cable, eliminating the need for dedicated cables.
- Includes five LEDs for clear operational status indication.
- Ideal for low voltage motor control applications in embedded systems.
Product Description
The STMicroelectronics X-NUCLEO-IHM02A1 is a two axis stepper motor driver expansion board designed for STM32 Nucleo development boards, providing an affordable and user-friendly solution for precision low voltage motor control. This evaluation board employs two L6470 fully-integrated micro stepping motor drivers, enabling effective control of one or two stepper motors through high-level motion commands received via SPI interface.
The expansion board supports USART communication, allowing seamless command exchange and status feedback with a PC. It requires no dedicated cables, utilizing the existing Type A to Mini-B USB cable employed to power the STM32 Nucleo board, simplifying connectivity.
With layout compatibility for Arduino UNO R3 connectors and ST morpho connectors, the X-NUCLEO-IHM02A1 ensures broad compatibility across embedded development platforms. Five onboard LEDs provide clear visual feedback on board operation status.
This board is highly suited for embedded applications in robotics, automation, and motor control research, offering precise micro stepping control and multi-axis operation within compact hardware.
Based on twin L6470 micro stepping motor drivers providing advanced motion control. Supports SPI daisy chain configurations for expandable motor control setups. USART interface enables efficient communication with PC for command input and monitoring.
Eliminates need for dedicated communication cables by sharing USB connection with STM32 Nucleo board. Compatible with Arduino UNO R3 and ST morpho connectors for extended hardware interoperability. Five onboard LEDs indicate power and motor driver statuses clearly.
Controls one or two stepper motors with precision micro stepping technology.
This product is ideal for industrial automation, robotics development, educational electronics, and prototype applications requiring precision motor driver evaluation. STMicroelectronics supports this evaluation board with comprehensive documentation and development resources.
Explore more motor driver and evaluation solutions in the Electronics & Electricals category at EnvMart to fulfill your embedded development needs.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model serves as a two axis stepper motor driver expansion board designed for STM32 Nucleo development boards, enabling precise control of one or two stepper motors through high-level commands via SPI interface.
It can control one or two stepper motors using dual L6470 micro stepping motor drivers for advanced motion control.
The board supports SPI for motor control commands and USART for communication with a PC, allowing for command reception and status feedback.
It uses a standard Type A to Mini-B USB cable, which is also used to power the STM32 Nucleo board, eliminating the need for dedicated cables.
Yes, it is compatible with Arduino UNO R3 connectors and ST morpho connectors, allowing for versatile integration across different platforms.
The board includes five onboard LEDs that provide clear visual feedback on power and motor driver statuses during operation.
The X-NUCLEO-IHM02A1 is manufactured in India.
It complies with RoHS standards, ensuring that it meets environmental and safety regulations.
This product is classified as an evaluation board, specifically designed for testing and development purposes.
It is ideal for applications in robotics, automation, educational electronics, and prototype development requiring precision motor control.
The board features SPI daisy chain configurations for expandable setups and eliminates the need for dedicated communication cables by sharing the USB connection with the STM32 Nucleo board.
STMicroelectronics provides comprehensive documentation and development resources to support users in utilizing this evaluation board effectively.
