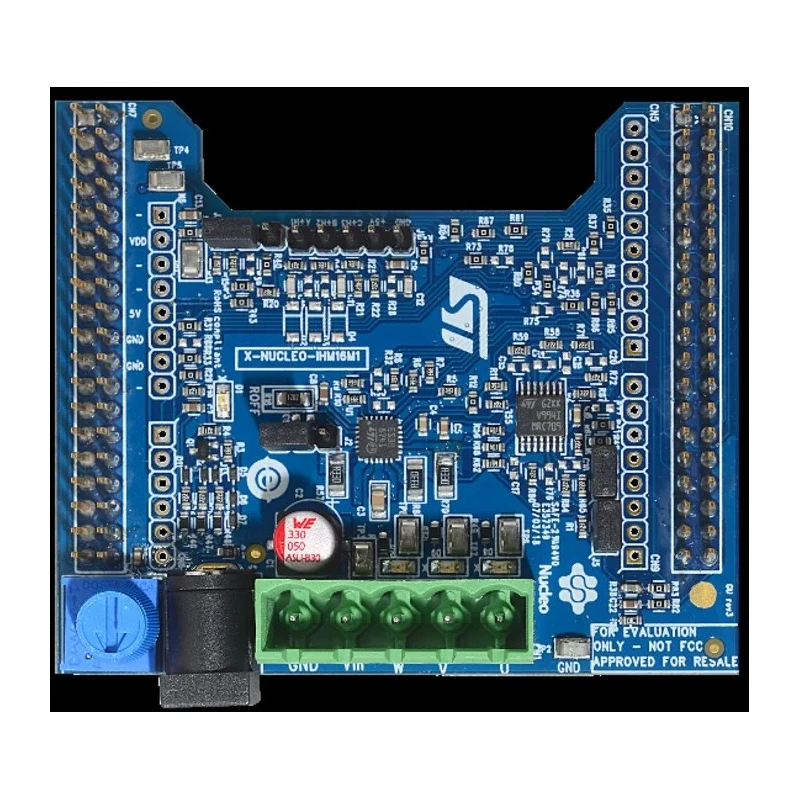

STMicroelectronics Three-Phase Brushless DC Motor Driver Expansion Board Based on STSPIN830 for STM32 Nucleo X-NUCLEO-IHM16M1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-IHM16M1 |
| For Use With | STM32 Nucleo |
| Kit Classification | Evaluation Board |
| Featured Device | STSPIN830 |
| Kit Name | Three-Phase Brushless DC Motor Driver Expansion Board Based on STSPIN830 for STM32 Nucleo |
Key Features
- Operates over a voltage range of 7 to 45 V for versatile applications.
- Supports output current up to 1.5 Arms suitable for medium power motor control.
- Offers flexible direct driving modes configurable between 3 or 6 PWM inputs.
- Includes current limiter with adjustable reference for protection.
- Incorporates overcurrent, short-circuit, interlocking protections and thermal shutdown features.
- Built-in BEMF sensing and bus voltage monitoring for efficient control.
- Equipped with input connectors compatible with Hall effect sensors and encoders.
- Compact and reliable solution ideal for robotics, industrial automation, and motor development.
Product Description
STMicroelectronics X-NUCLEO-IHM16M1 is a new three-phase brushless DC motor driver expansion board based on the STSPIN830 driver IC, designed for use with STM32 Nucleo development boards. The board operates with a supply voltage range from 7 V to 45 V and can deliver an output current up to 1.5 Arms, making it suitable for various motor control applications.
This board supports both single shunt and three-shunt sensing, providing flexible current feedback options. The direct driving method is configurable with either 3 or 6 PWM input signals, adapting to different control strategies.
For safety and protection, the X-NUCLEO-IHM16M1 includes features such as an adjustable current limiter, protection against overcurrent, short-circuit and interlocking conditions, thermal shutdown, and undervoltage lockout to ensure reliable operation in challenging industrial environments.
Further, it incorporates back electromotive force (BEMF) sensing circuitry and bus voltage and PCB temperature monitoring, enabling efficient real-time motor status feedback and system diagnostics.
The expansion board is also equipped with connectors designed for Hall effect sensors and rotary encoders, facilitating closed-loop control and precise motor positioning applications. Its compact form factor and robust design make it an ideal solution for embedded robotics, automation, HVAC, manufacturing, and power electronics development tasks.
Operates over 7 to 45 V voltage supply range. Delivers up to 1.5 Arms output current. Supports configurable 3 or 6 PWM input driving. Includes comprehensive protection functions. Integrates BEMF sensing and bus voltage monitoring.
Compatible with Hall sensors and encoders. Designed for efficient brushless DC motor control development. Supports robust industrial and educational applications.
This product is made in Italy and is part of the Power Management Development Kit category for STM32 Nucleo-based motor control solutions. EnvMart offers extensive categories and high-quality products from STMicroelectronics and other leading manufacturers to support your industrial development needs.
Explore more products in our Motor Driver Boards category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a voltage range of 7 to 45 V, making it suitable for versatile applications.
It can deliver an output current of up to 1.5 Arms, suitable for medium power motor control applications.
The board supports configurable direct driving modes with either 3 or 6 PWM input signals, allowing for different control strategies.
It includes an adjustable current limiter, overcurrent protection, short-circuit protection, thermal shutdown, and undervoltage lockout for reliable operation.
Yes, it is equipped with input connectors that are compatible with Hall effect sensors and rotary encoders for closed-loop control applications.
It is designed for efficient brushless DC motor control development, making it suitable for robotics, industrial automation, HVAC, and manufacturing applications.
This product is made in Italy.
It supports both single shunt and three-shunt sensing, providing flexible current feedback options for motor control.
It incorporates BEMF sensing circuitry and bus voltage monitoring, enabling efficient real-time motor status feedback and system diagnostics.
It is intended for use with STM32 Nucleo development boards as part of a motor control solution.
The model number is X-NUCLEO-IHM16M1, based on the STSPIN830 driver IC.
It is classified as an evaluation board, specifically designed for three-phase brushless DC motor driver applications.
