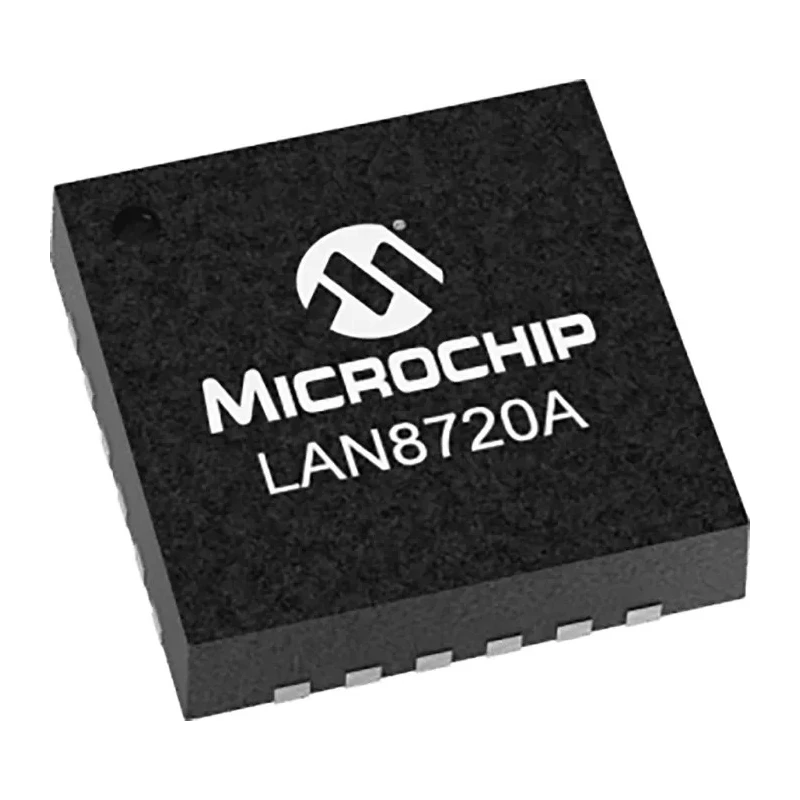

Microchip 24-Pin QFN Ethernet Transceiver IC 3.3 V 100 Mbps RMII Full Duplex/Half Duplex LAN8720A-CP
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 4.1mm |
| Model | LAN8720A-CP |
| Width | 4.1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | 0°C |
| Interfaces | LAN8720A: 4x4mm 24 pin QFN and VQFN package (RMII only) |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | RMII |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 28mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3 |
| Number of Transceivers | 1 |
| LAN8720A | 4x4mm 24 pin QFN and VQFN package (RMII only) |
Key Features
- Features a compact 24-pin QFN package measuring 4.1mm by 4.1mm.
- Operates at a maximum supply voltage of 3.3 V with low supply current of 28 mA.
- Supports internal loopback mode for testing and diagnostics.
- Meets IEEE 802.3 Ethernet standards for reliable communication.
- Designed for industrial and consumer electronics with temperature range from 0°C to 85°C.
- Incorporates flexPWR® technology for power efficiency and an integrated 1.2 V linear regulator.
- Ideal for applications such as digital video recorders, HDTVs, personal video recorders, and set-top boxes.
- Features extremely low energy detect standby mode for power savings.
Product Description
Microchip LAN8720A-CP Ethernet Transceiver IC is a high-performance 100 Mbps solution housed in a small 24-pin QFN surface-mount package measuring 4.1 mm square with a height of 1 mm. It operates on a 3.3 V supply and features an RMII interface supporting both full duplex and half duplex communication modes. This transceiver meets the IEEE 802.3 standard, making it suitable for a variety of Ethernet applications.
Engineered for low power consumption, the device incorporates flexPWR® technology reducing power usage by up to 40% compared to previous Microchip products. It includes an integrated 1.2 V linear regulator and features an extremely low energy detect standby mode to conserve power during inactivity.
The LAN8720A-CP supports internal loopback functionality, aiding in system diagnostics and testing. It is specified to operate reliably within industrial and extended commercial temperature ranges from 0°C up to 85°C.
This Ethernet transceiver is widely used in consumer electronics like digital video recorders (DVRs), high-definition televisions (HDTVs), personal video recorders (PVRs), and set-top boxes (STBs). Its small footprint and low power make it ideal for compact and portable Ethernet-enabled devices.
Manufactured in Taiwan, Province Of China, the device is supplied new and is RoHS compliant. The 24-pin QFN package facilitates surface mounting on printed circuit boards, ensuring robust physical and electrical performance for industrial, commercial, and consumer applications.
Features a compact 24-pin QFN package measuring 4.1mm x 4.1mm and 1 mm height. Operates at 3.3 V supply with low current consumption of 28 mA. Supports both full duplex and half duplex Ethernet communication. Includes internal loopback mode for easy diagnostics.
Complies with IEEE 802.3 Ethernet standards. Incorporates power-saving flexPWR® technology and an integrated linear regulator. Designed for diverse applications including DVRs, HDTVs, PVRs, and set-top boxes. Operates reliably from 0°C to 85°C for industrial-grade usage.
Explore the Microchip Ethernet Transceiver IC range and related semiconductor products at EnvMart for your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LAN8720A-CP supports a maximum data rate of 100 Mbps.
It operates with a maximum supply voltage of 3.3 V.
This model supports both full duplex and half duplex communication modes.
It operates reliably within a temperature range from 0°C to 85°C.
It is housed in a compact 24-pin QFN package measuring 4.1 mm x 4.1 mm and 1 mm in height.
Yes, it features an internal loopback mode for testing and diagnostics.
The supply current is 28 mA during operation.
It complies with the IEEE 802.3 Ethernet standards.
The LAN8720A-CP is manufactured in Taiwan.
It is suitable for applications such as digital video recorders, HDTVs, personal video recorders, and set-top boxes.
It uses an RMII interface for communication.
It incorporates flexPWR® technology, which reduces power usage by up to 40% compared to previous Microchip products.
