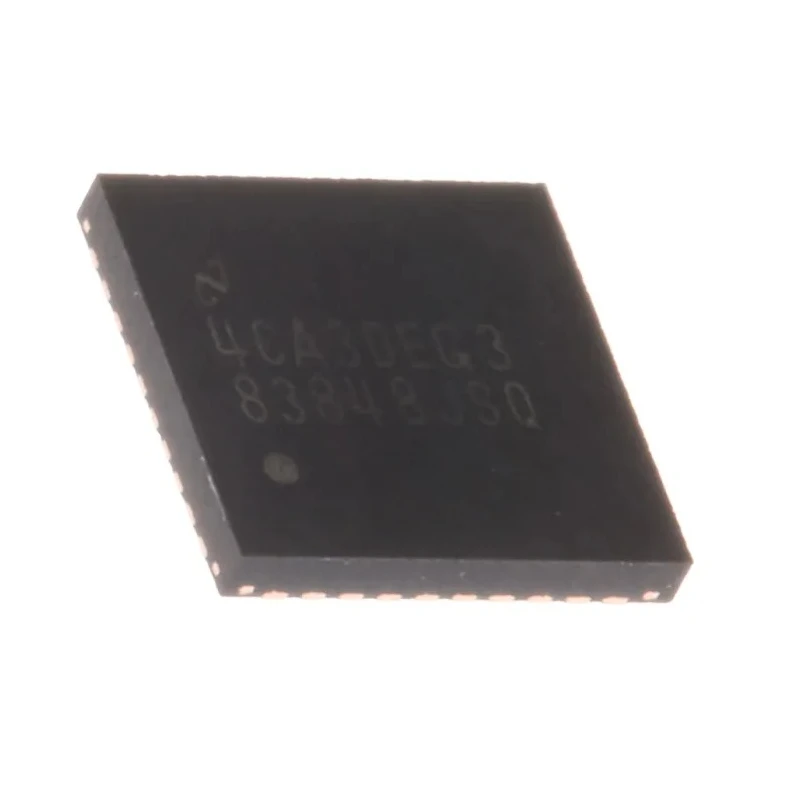

Texas Instruments 40-Pin LLP Ethernet Transceiver 3.3 V 100 Mbps RMII Full Duplex/Half Duplex DP83848JSQ/NOPB

Texas Instruments DP83848JSQ/NOPB is a highly integrated 40-pin LLP Ethernet transceiver optimized for 100 Mbps RMII interface communication. Operating at 3.3 V supply voltage, it supports both Full Duplex and Half Duplex communication modes as per IEEE 802.3u standards.

Designed for surface mount assembly, its compact size (6.1 mm x 6.1 mm x 800 μm) makes it ideal for dense PCB applications. It supports an internal loopback mode useful for diagnostic and testing purposes during development and production.

This transceiver operates efficiently within a temperature range of 0°C to 70°C, ensuring dependable performance in industrial and commercial electronics and Ethernet communications infrastructure.

It is suitable for use in network communication controllers, embedded Ethernet devices, and other interface electronics requiring reliable 100 Mbps data rate transmission. This device supports internal loopback mode for testing and diagnostics.

Compliant with IEEE 802.3u standard for fast Ethernet operations. Surface mount type with compact dimensions of 6.1 mm length and width, and 800 μm height. Operates reliably in temperature range from 0°C to 70°C. Maximum supply voltage rated at 3.3 V ensuring low power consumption.

Supports Full Duplex and Half Duplex communication modes. Optimized for 40-pin LLP package for efficient PCB footprint.

This Ethernet transceiver from Texas Instruments is widely used in electronic communication systems, industrial automation, and embedded network devices. It combines high performance with compact packaging for effective integration.
