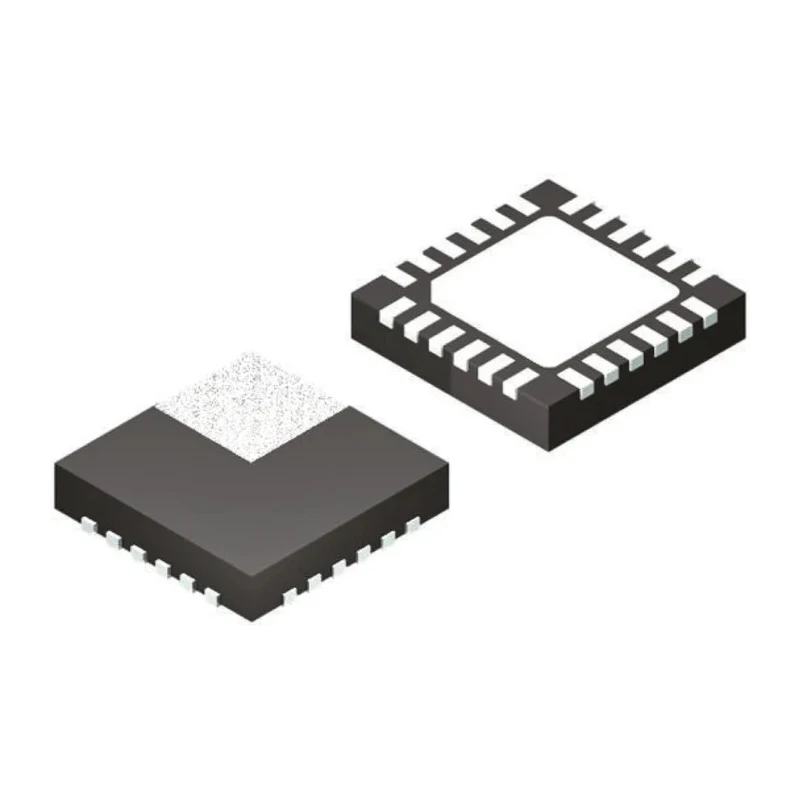

Microchip 24-Pin SQFN Transceiver IC 1.62 V to 3.3 V 100 Mbps RMII Full Duplex/Half Duplex LAN8742AI-CZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 4.1mm |
| Model | LAN8742AI-CZ |
| Width | 4.1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SQFN |
| Minimum Operating Temperature | -40°C |
| Communication Mode | Full Duplex/Half Duplex |
| Interface Type | RMII |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.62V |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Internal |
| Standard Supported | IEEE 802.3, IEEE 802.3u |
| Number of Transceivers | 1 |
Key Features
- Supports data transmission up to 100 Mbps with RMII interface.
- Operates with supply voltage ranging from 1.62 V minimum to 3.3 V maximum.
- Full duplex and half duplex communication modes are supported.
- Compact 24-Pin SQFN surface mount package for efficient PCB integration.
- Wide operating temperature range from -40°C to 85°C suitable for industrial applications.
- Internal loopback mode facilitates testing and diagnostics.
- Compliant with IEEE 802.3 and IEEE 802.3u standards for Ethernet communications.
- Designed for reliable Ethernet transceiver communication in embedded systems.
Product Description
Microchip LAN8742AI-CZ is a 24-Pin SQFN Ethernet transceiver IC operating with supply voltages from 1.62 V to 3.3 V, capable of delivering 100 Mbps maximum data rate using RMII interface protocol. It supports both full duplex and half duplex communication modes, making it versatile for varied networking requirements in industrial and commercial applications.
This transceiver IC is surface mounted in a compact 24-Pin SQFN package measuring 4.1 mm by 4.1 mm in length and width, and a height of 1 mm, contributing to space-efficient circuit board layout designs. It features an internal loopback mode to facilitate self-testing and diagnostic functionality, enhancing development and maintenance processes.
The device complies with Ethernet standards IEEE 802.3 and IEEE 802.3u ensuring compatibility with existing network infrastructures. Its robust operating temperature range from -40°C to 85°C makes it suitable for a wide array of environments, including harsh industrial and outdoor settings.
With a single transceiver and support for RMII (Reduced Media Independent Interface), the LAN8742AI-CZ simplifies connection to MAC controllers in embedded Ethernet applications, making it highly suitable for industrial automation, communication systems, and other embedded network devices.
Supports data transmission up to 100 Mbps with RMII interface. Operates with supply voltage ranging from 1.62 V minimum to 3.3 V maximum. Full duplex and half duplex communication modes are supported. Compact 24-Pin SQFN surface mount package for efficient PCB integration.
Wide operating temperature range from -40°C to 85°C suitable for industrial applications. Internal loopback mode facilitates testing and diagnostics. Compliant with IEEE 802.3 and IEEE 802.3u standards for Ethernet communications.
Dimensions include length and width of 4.1 mm and height of 1 mm for low-profile mounting. Designed for reliable Ethernet transceiver communication in embedded systems. This Microchip transceiver IC is ideal for industrial, commercial, and embedded networking applications requiring efficient, standard-compliant Ethernet interface solutions.
Explore more Ethernet Transceiver ICs and related semiconductor components at EnvMart for advanced electronics integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LAN8742AI-CZ supports a maximum data rate of 100 Mbps using the RMII interface.
It operates with a supply voltage ranging from 1.62 V to 3.3 V.
This transceiver IC supports both full duplex and half duplex communication modes.
The transceiver comes in a compact 24-Pin SQFN package with dimensions of 4.1 mm by 4.1 mm and a height of 1 mm.
It has a wide operating temperature range from -40°C to 85°C, suitable for industrial applications.
Yes, it features an internal loopback mode that facilitates testing and diagnostics.
This transceiver is compliant with IEEE 802.3 and IEEE 802.3u standards for Ethernet communications.
It is designed for surface mounting, allowing for efficient PCB integration.
The LAN8742AI-CZ includes a single transceiver.
It utilizes the RMII (Reduced Media Independent Interface) for communication.
The LAN8742AI-CZ is manufactured in India.
This model is suitable for industrial automation, communication systems, and other embedded network devices.
