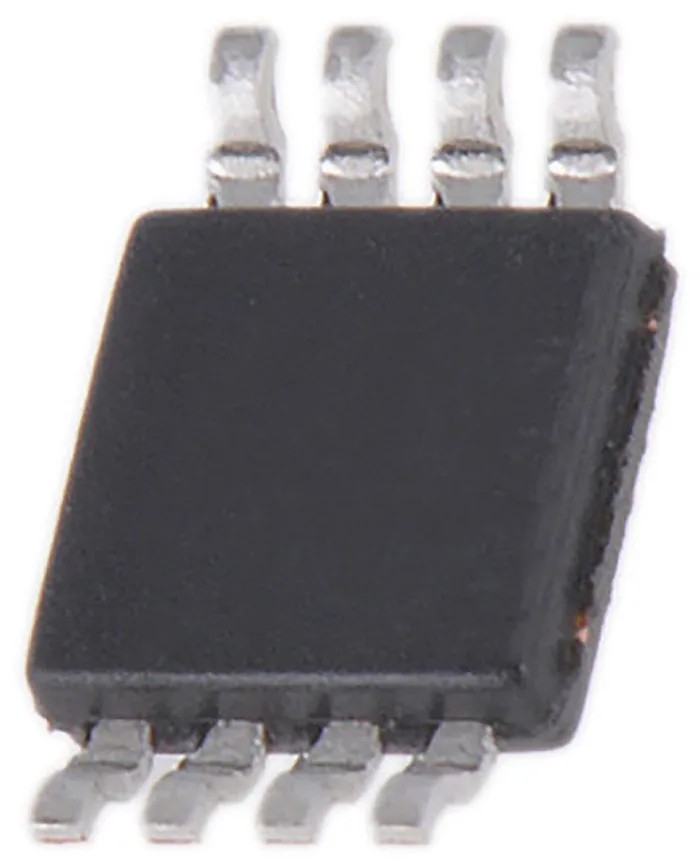

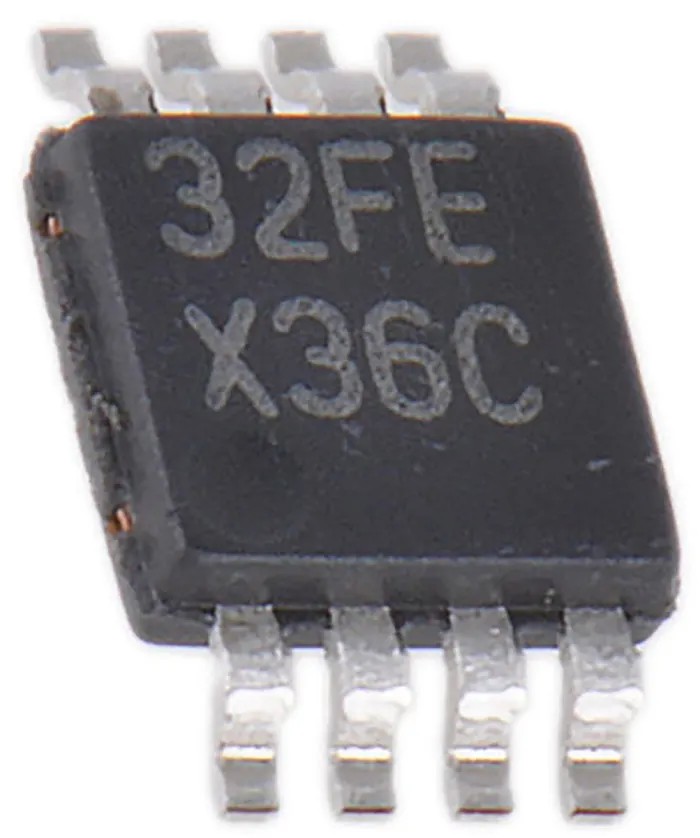

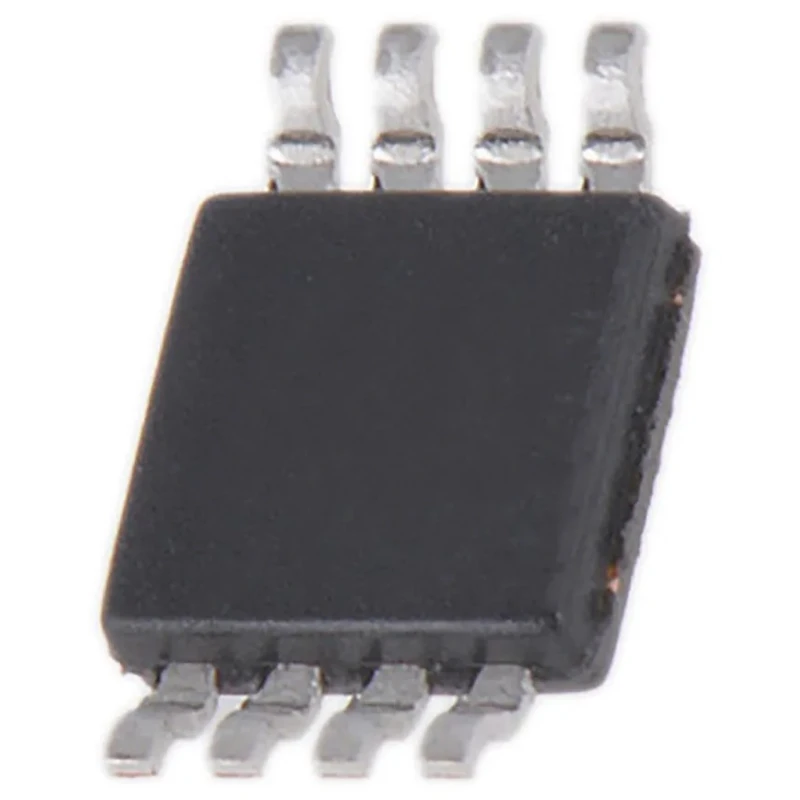

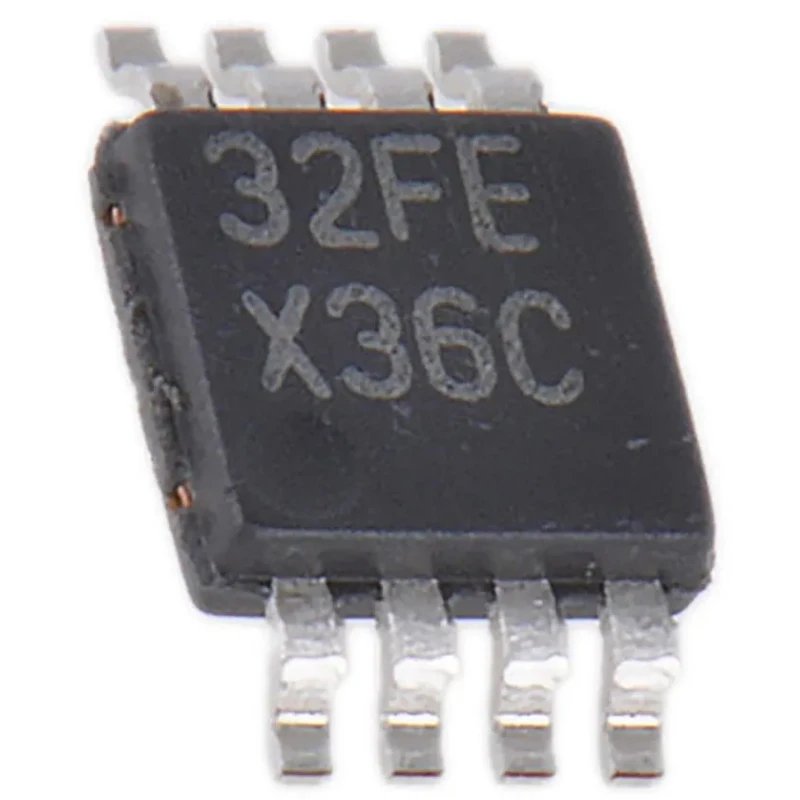

Texas Instruments Smart Ideal Diode Controller 5-Channel Surface Mount VSSOP 8-Pin LM74610QDGKTQ1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 950μm |
| Length | 3.1mm |
| Model | LM74610QDGKTQ1 |
| Width | 3.1mm |
| Mount Type | Surface |
| Maximum Duty Cycle | 98% |
| Series | LM74610 |
| Maximum Operating Temperature | 125°C |
| Package Type | VSSOP |
| Sub Type | Ideal Diode Controller |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Maximum Input Voltage | 45V |
| Minimum Input Voltage | -3V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- This device improves power efficiency by acting as an ideal diode across power paths.
- Supports a maximum input voltage of 45 V and operates reliably between -40°C and 125°C.
- The compact 3.1mm x 3.1mm x 0.95mm package simplifies PCB design for power management circuits.
- Features a high maximum duty cycle of 98%, enabling efficient control of diode switching.
- Automotive grade compliant with AEC-Q100 standards for high reliability applications.
- Protects against reverse polarity with fast response to enhance power source and load safety.
- Ideal for use in power management ICs, voltage regulation, and smart diode applications.
- The LM74610 series is designed to reduce energy lost through diode forward voltage drop.
Product Description
Texas Instruments LM74610QDGKTQ1 is a 5-channel smart ideal diode controller available in an 8-pin VSSOP surface mount package, designed for advanced power management applications. With a maximum input voltage rating of 45 V and operation across wide temperature ranges from -40°C to 125°C, it ensures robust performance in industrial and automotive environments compliant with AEC-Q100 standards.
This Ideal Diode Controller acts as a logic OR-ing device and smart diode, allowing MOSFETs to function as ideal diodes. It significantly reduces energy losses normally associated with the forward voltage drop in conventional diodes, improving overall system efficiency. The device provides fast response to reverse polarity conditions, protecting power sources and loads from damage.
The compact VSSOP package measures 3.1 mm in length and width with a height of 950 μm, facilitating streamlined PCB designs in applications like voltage regulation and power supply designs. Its maximum duty cycle of 98% enables near-continuous conduction, optimizing power delivery efficiency.
Typical use cases for the LM74610QDGKTQ1 include industrial power management ICs, automotive power distribution systems, renewable energy inverters, and any electronic equipment requiring efficient diode emulation and protection.
This controller improves power efficiency by minimizing diode conduction losses. It safeguards connected loads and sources from reverse polarity events. The device's compact footprint suits dense PCB layouts. Designed to meet automotive reliability standards for harsh conditions.
Supports multiple channel outputs for complex system management. Incorporates advanced logic OR-ing functions for multi-source power systems. Robust temperature tolerance suits varied industrial and automotive environments.
Enhances energy savings and reduces thermal stress in power systems. Explore more high-quality voltage controller ICs and semiconductor components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the LM74610QDGKTQ1 is 45 V.
It operates reliably between -40°C and 125°C.
This model features 5 outputs.
The device comes in a VSSOP package, measuring 3.1 mm x 3.1 mm with a height of 950 μm.
It has a maximum duty cycle of 98%, enabling efficient control of diode switching.
Yes, it is compliant with AEC-Q100 standards for automotive applications.
The device provides fast response to reverse polarity conditions, enhancing safety for power sources and loads.
It is suitable for power management ICs, voltage regulation, and smart diode applications.
The minimum input voltage is -3 V.
The smart diode functionality allows MOSFETs to function as ideal diodes, reducing energy losses associated with forward voltage drop.
The country of origin for the LM74610QDGKTQ1 is India.
It is designed for surface mount applications.
