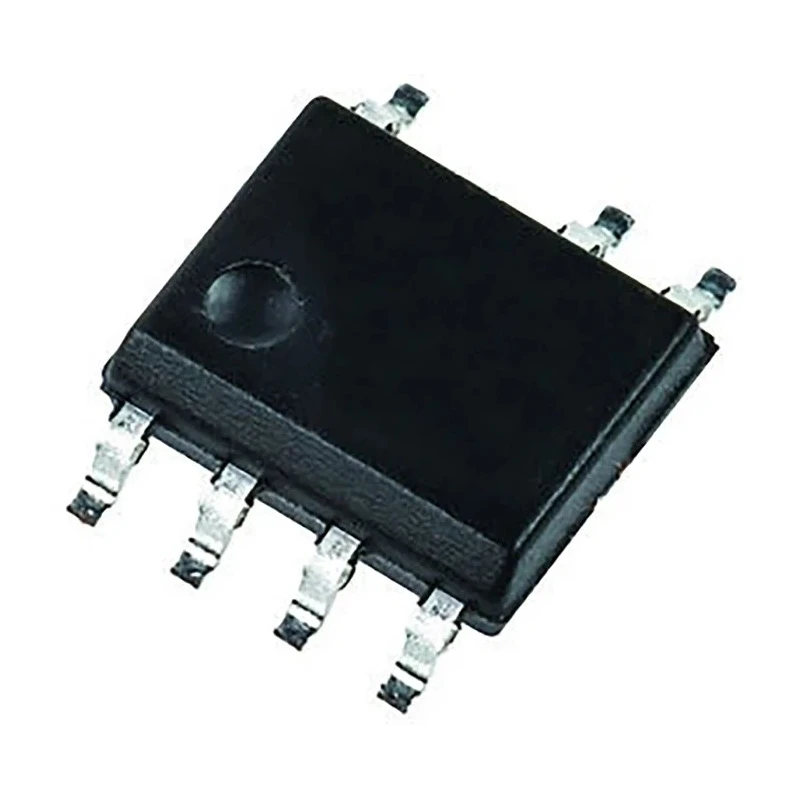

DiodesZetex Ideal Diode Controller 7-Pin SO Package Surface Mount 4V to 20V 150°C ZXGD3112N7TC
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | ZXGD3112N7TC |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SO |
| Minimum Operating Temperature | -50°C |
| Pin Count | 7 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 4V |
| Typical Switching Time | 400ns |
| FET Type | Type N |
Key Features
- The device replaces standard rectifiers to reduce forward voltage drop.
- Typical switching time is 400 nanoseconds for fast response.
- Operates within a supply voltage range of 4V to 20V.
- Designed for operating temperatures from -50°C to 150°C.
- Features a compact SO package measuring 4.9mm in length and 1.45mm in height.
- Utilizes Type N FETs without internal MOSFETs for external MOSFET control.
- Surface mount technology enables easy PCB assembly and reliable connections.
- Improves power transfer efficiency in power management applications.
Product Description
DiodesZetex ZXGD3112N7TC is a 7-pin Ideal Diode Controller packed in a surface mount SO package, operating from 4V minimum to a maximum of 20V supply voltage. It is engineered to drive an external low RDS(on) Power MOSFET such that it emulates an ideal diode, reducing power losses due to the lower forward voltage drop compared to standard rectifiers.
The device supports a typical switching time of 400 nanoseconds, contributing to fast, efficient power switching and improved system reliability. It covers a wide operating temperature range from -50°C to 150°C, making it suitable for demanding industrial and electronic applications.
Physically, the compact 4.9mm by 1.45mm SO package allows for easy integration on printed circuit boards using surface mount technology. The controller does not include internal MOSFETs, thus allowing it to control an external MOSFET with Type N configuration, enabling customization for power needs and scalability.
The controller replaces conventional rectifiers to enhance power efficiency by reducing voltage drop. Its fast switching capability improves the performance in dynamic load conditions. The product's design suits industrial electronics, power supplies, battery management, and other power control systems.
It adheres to no specific automotive or industrial standards, but its rugged operating temperature range supports a variety of environments. This surface mount device facilitates automated assembly and contributes to miniaturized electronic system designs.
Overall, the DiodesZetex ZXGD3112N7TC Ideal Diode Controller is essential for engineers seeking to optimize power conversion efficiency and system reliability in modern electronic and power management circuits. Explore the Electronics & Electricals category for more semiconductor power management ICs at EnvMart.
