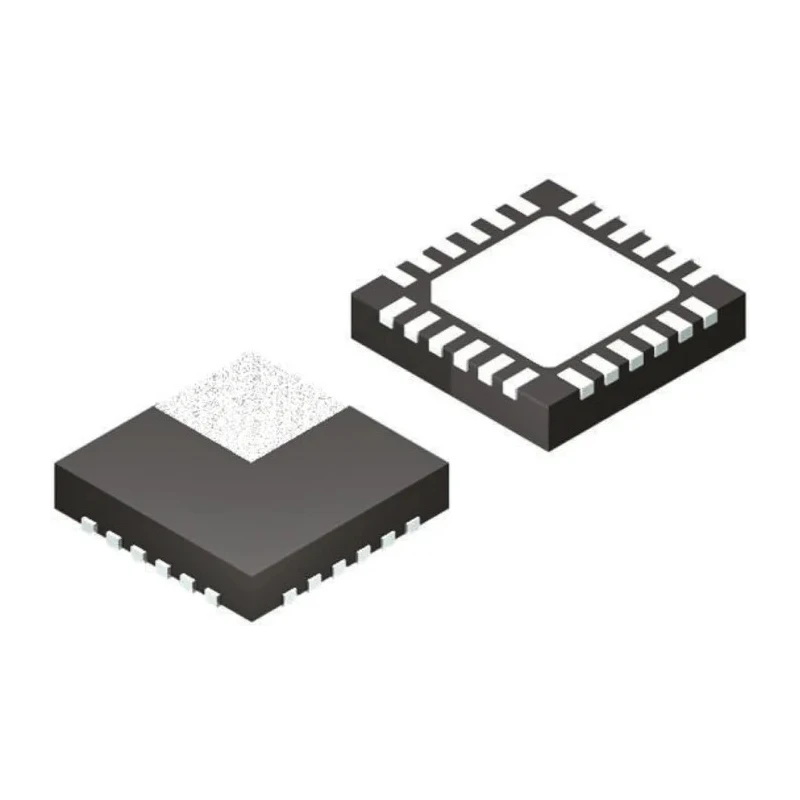

Skyworks Solutions Inc Surface Mount Function Generator IC 24-Pin QFN Package, 1.71V-3.63V Supply, -40°C to Si5338A-B-GM

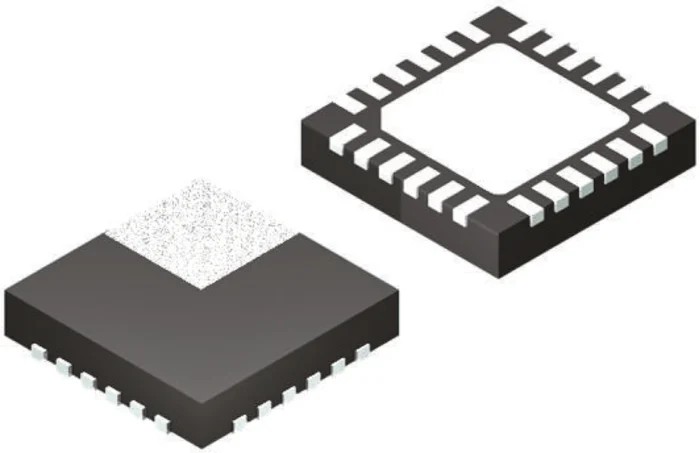

Skyworks Solutions Inc Si5338A-B-GM Function Generator IC is a high-performance surface mount integrated circuit designed for clock generation and frequency synthesis. Housed in a compact 24-pin QFN package measuring 4mm in length and 0.85mm in height, this device supports a wide operating voltage range from 1.71V to 3.63V and a broad operating temperature range from -40°C to 85°C, making it suitable for challenging environmental conditions.

This clock generator IC is capable of producing output frequencies up to 710MHz with sub 1 ps RMS phase jitter, providing exceptionally precise timing signals. It can replace multiple crystal oscillators and fixed-frequency clock generators by generating any combination of output frequencies with zero parts per million error, giving designers flexibility in timing applications.

The Si5338A-B-GM supports various output signal formats, including LVPECL, LVDS, HCSL, and LVCMOS, with integrated level translation features. Its surface mount QFN package ensures efficient assembly on printed circuit boards for industrial, communications, and electronic semiconductor equipment.

Applications for this function generator IC include industrial automation, telecommunications equipment, data communication systems, and other electronics requiring accurate timing and clock distribution.

The device features a 24-pin QFN surface mount package designed for easy PCB integration. It operates over a wide temperature range from -40°C to 85°C. Supports supply voltage between 1.71V and 3.63V. Output frequency up to 710MHz with excellent phase jitter performance.

Multiple configurable output signal formats for versatile application use.
