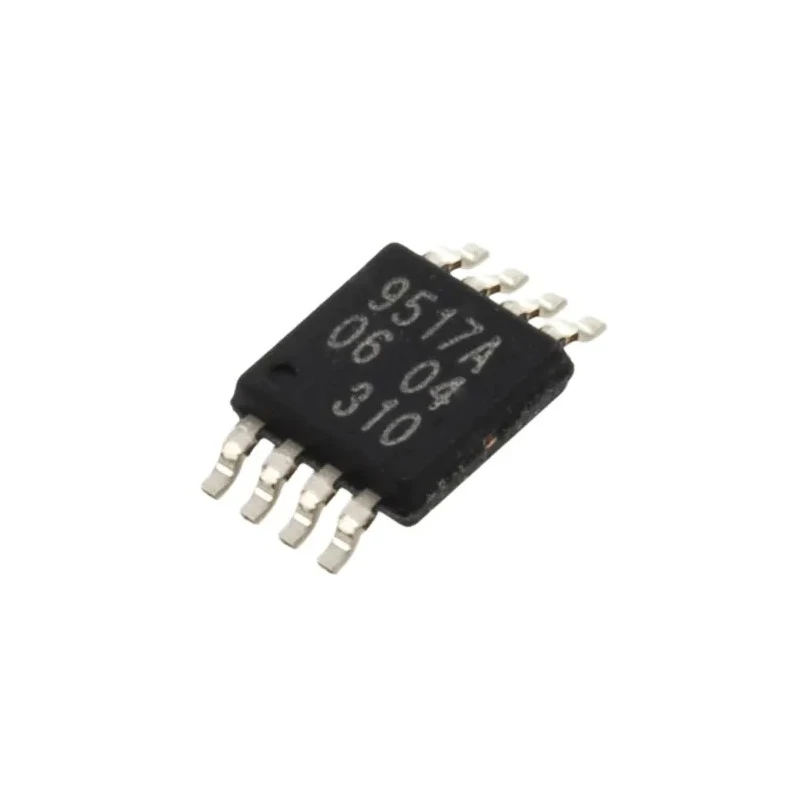

NXP Bus Repeater Bi-Directional 8-Pin TSSOP Surface Mount 400 kHz Clock Frequency PCA9517ADP,118

Free Delivery in India | Lowest Global Shipping Charges

NXP Bus Repeater Bi-Directional 8-Pin TSSOP Surface Mount 400 kHz Clock Frequency PCA9517ADP,118



Category Clock, Timing & Frequency ICs Brand NXP Condition New

Specifications

Country of Origin	India
Brand	NXP
Height	950μm
Length	3.1mm
Model	PCA9517ADP,118
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	725-8745PBrand: NXPManufacturers Part No.: PCA9517ADP,118
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	900mV
Maximum Clock Frequency	400kHz
Direction Type	Bi-Directional
Maximum Propagation Delay Time	250ns

Key Features

Operates with a minimum supply voltage of 0.9 V and maximum of 5.5 V.
Maximum propagation delay time is 250 nanoseconds ensuring signal integrity.
Designed to operate reliably between -40°C and 85°C ambient temperatures.
Compact 3.1 mm length and 950 µm height surface mount package.
Supports bi-directional communication for serial I/O peripherals.
Complies with no specific industry standards or automotive requirements.
Pin count is 8, suitable for integration in clock timing circuits.
Packaged for surface mount applications with TSSOP package type.

Product Description

NXP PCA9517ADP,118 is a high-performance bus repeater designed for bi-directional data transmission with low propagation delay and reliable clock frequencies up to 400 kHz. It features an 8-pin TSSOP surface mount package, making it suitable for compact circuit board design.

This semiconductor component operates on a wide voltage range from 0.9 V to 5.5 V and performs optimally in harsh industrial temperature environments from -40°C up to 85°C, ensuring durability in multiple industrial, electronic, and communication applications.

The device is ideal for serial input/output peripherals requiring signal buffering and extension while maintaining signal integrity with a maximum propagation delay of 250 ns. It supports bi-directional data flow, facilitating efficient bus repeater functions in timing and frequency circuits.

The compact form factor with 3.1 mm length and 950 μm height TSSOP package type facilitates integration into dense PCB layouts prevalent in electronics manufacturing, instrumentation, and telecommunications equipment.

Operates at a maximum clock frequency of 400 kHz. Supports voltage levels between 0.9 V (minimum) and 5.5 V (maximum). Reliable operation under industrial temperature extremes from -40°C to 85°C. Compact 8-pin TSSOP surface mount package.

Bi-directional communication capabilities ideal for serial I/O peripherals. No specific automotive or other industry standard certifications. This product is suitable for use in industrial electronics, electronic component assemblies, industrial instrumentation, and clock distribution in embedded systems.
