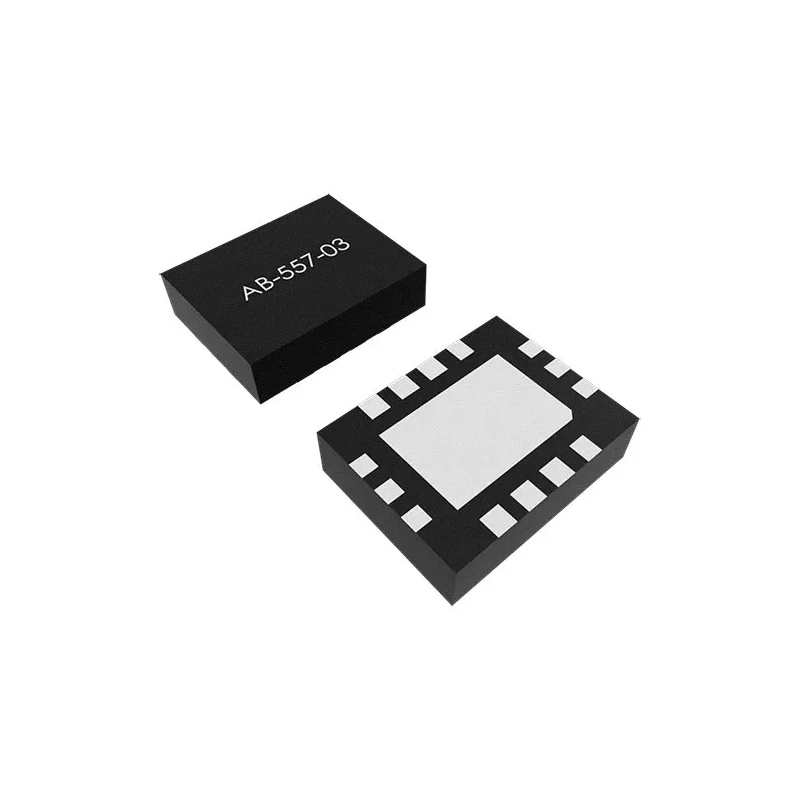

Abracon Frequency Synthesiser 5 Outputs 14-Pin Surface Mount TSSOP-16 2.25V-3.6V AB-557-03-HCHC-F-L-C-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon Frequency Synthesiser 5 Outputs 14-Pin Surface Mount TSSOP-16 2.25V-3.6V AB-557-03-HCHC-F-L-C-T

Name: Abracon Frequency Synthesiser 5 Outputs 14-Pin Surface Mount TSSOP-16 2.25V-3.6V AB-557-03-HCHC-F-L-C-T
Brand: Abracon
SKU: 298188
Price: 7.23 USD
Availability: InStock



Category Clock, Timing & Frequency ICs Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	3.2mm
Model	AB-557-03-HCHC-F-L-C-T
Width	2.5mm
Mount Type	Surface
Series	AB
Maximum Operating Temperature	85°C
Package Type	TSSOP-16
Sub Type	Frequency Synthesiser
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Output Frequency	460MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	14
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.25V
Wide temperature range	-40° to 105° C
Wide Supply Range	2.25V to 3.6 V
Available Mixed Output Formats	HCSL, LVPECL, LVDS or LVCMOS

Key Features

High-performance frequency synthesiser with maximum output frequency of 460MHz.
Surface mount design for compact PCB integration.
Wide operating temperature range from -40°C to 85°C ensures robust performance.
Supports multiple output formats including HCSL, LVPECL, LVDS, or LVCMOS.
Small footprint with dimensions of 3.2mm length, 2.5mm width, and 0.85mm height.
Low power consumption for efficient operation in various electronic applications.
Complies with RoHS and RoHS II environmental standards.
Meets PCI Express Gen1, Gen2, and Gen3 specifications.

Product Description

Abracon AB-557-03-HCHC-F-L-C-T is a precision frequency synthesiser designed for high-performance clock generation in multiple electronic systems. Featuring 5 outputs in a compact 14-pin TSSOP-16 surface-mount package, this device operates efficiently across a wide supply voltage range of 2.25V to 3.6V and a robust temperature range from -40°C to 85°C. It supports various output formats including HCSL, LVPECL, LVDS, and LVCMOS, making it suitable for diverse applications.

This frequency synthesiser delivers a maximum output frequency of 460MHz, complying with PCI Express Gen1 to Gen3 standards. Its miniature size (3.2mm length, 2.5mm width, and 0.85mm height) and low power consumption enable compact and energy-efficient designs.

The product is fully RoHS and RoHS II compliant, ensuring environmentally safe usage. It finds industrial applications in solid-state storage networks, passive optical networks, Ethernet 1G and 10GBASE-T/KR/LR/SR, Fibre Channel over Ethernet (FCoE), consumer electronics, medical devices, scanners, and printers.

High-performance frequency synthesiser with maximum output frequency of 460MHz. Wide operating temperature range from -40°C to 85°C ensures reliable performance. Compact surface mount TSSOP-16 package for space-efficient applications.

Supports multiple output formats including HCSL, LVPECL, LVDS, or LVCMOS. Complies with RoHS and RoHS II environmental standards. Meets PCI Express Gen1, Gen2, and Gen3 specifications. Wide supply voltage range from 2.25V to 3.6V.

Low power consumption suitable for industrial and consumer electronic devices. Excellent shock and vibration immunity enhances durability. Ideal for use in storage, networking, medical, and consumer electronic systems.
