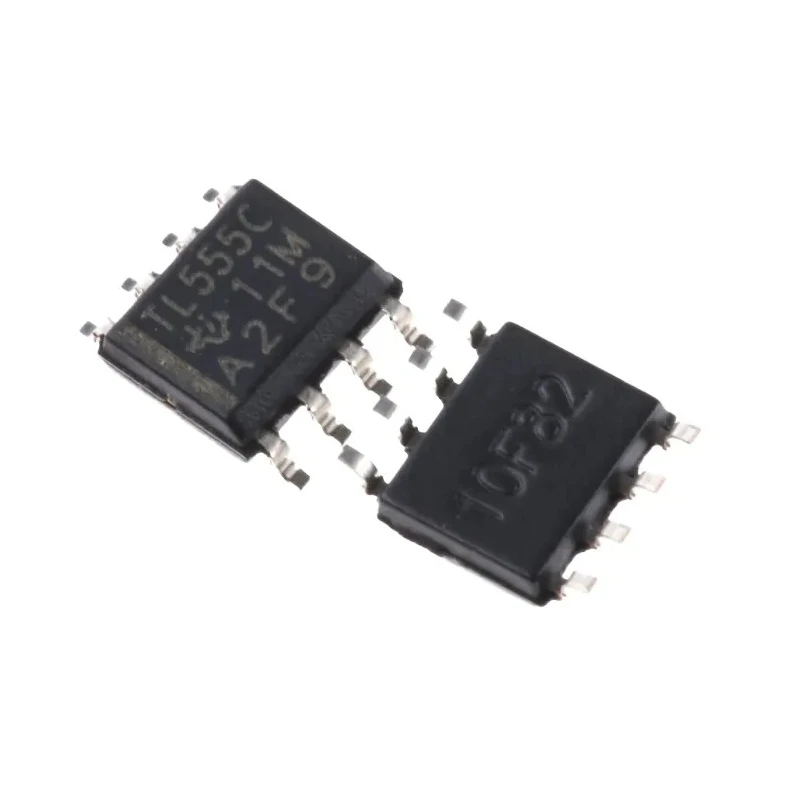

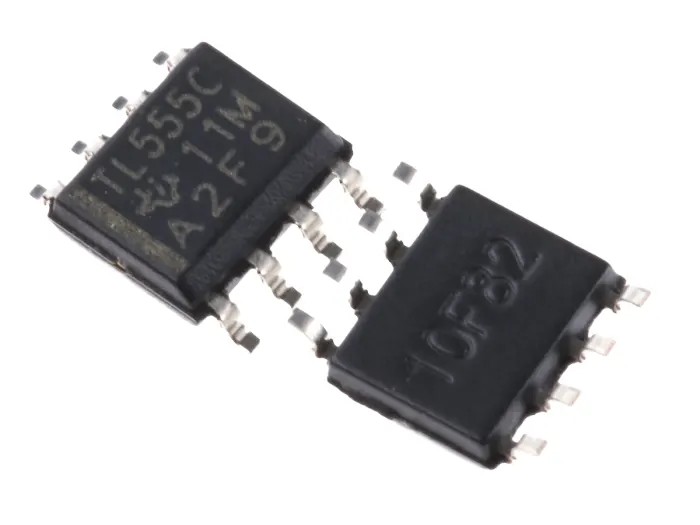

Texas Instruments Timer Circuit 1 Internal Timer 8-Pin SOIC 2V-15V Supply TLC555CDR

Texas Instruments TLC555CDR Timer Circuit is a highly stable precision 8-pin SOIC surface mount IC designed for generating accurate time delays and timing pulses across industrial and electronic applications. It supports operation within a 2V to 15V supply voltage range, providing flexibility for various circuit designs.

This timer features a single internal timer capable of functioning in monostable (one-shot) or astable (oscillator) modes with timing periods spanning less than a microsecond to several minutes. Its maximum propagation delay time of 75 ns measured at 10 pF ensures fast response suitable for precision timing tasks.

Designed for reliable performance in temperature ranges from 0°C to 70°C, the device is built to withstand typical environmental conditions encountered in electronics manufacturing and industrial use. The compact SOIC package measures 4.9 mm in length and 1.58 mm in height, facilitating integration into densely populated circuit boards.

The TLC series technology delivers low power consumption and improved timing accuracy, making it suitable for applications such as timing control, pulse generation, and oscillator circuits within electronic, industrial, and laboratory environments.

Operates with supply voltages from 2V to 15V. Monostable and astable timing operation modes supported. Single internal precision timer in an 8-pin SOIC surface mount package. Maximum propagation delay time: 75 ns at 10 pF load.

Operating temperature range: 0°C to 70°C. Compact dimensions facilitating PCB layout efficiency. Suitable for industrial, laboratory, and electronic circuit timing applications.

This timer IC is a fundamental component for engineers requiring precise timing control in digital and analog circuits. Available from EnvMart, it supports enhanced design productivity and durability.
