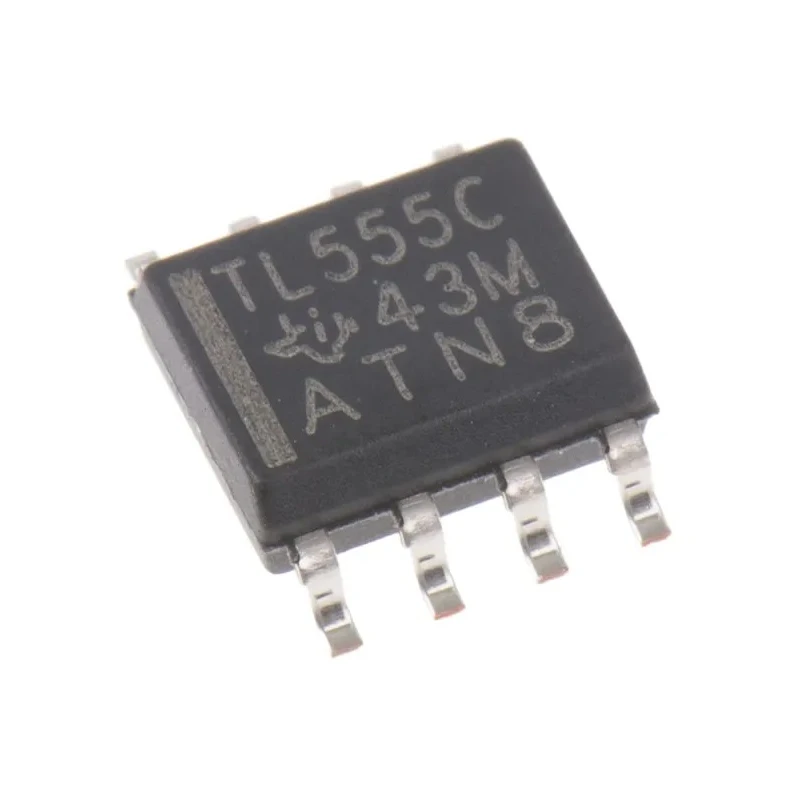

Texas Instruments Timer Circuit 1 Internal Timer 8-Pin SOIC Surface Mount TLC555CD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | TLC555CD |
| Mount Type | Surface |
| Series | TLC |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 2V |
| Number of Internal Timers | 1 |
| Maximum Propagation Delay Time @ M | 75ns |
| Propagation Delay Test Condition | 10pF |
Key Features
- This timer operates with a minimum supply voltage of 2 volts and a maximum of 15 volts.
- The device features a maximum propagation delay of 75 nanoseconds at 10 pF test conditions.
- Its operating temperature ranges from 0°C to 70°C, suitable for standard industrial environments.
- The compact SOIC package measures 4.9 mm in length and 1.58 mm in height, enabling space-efficient PCB designs.
- The TLC555CD can function in monostable or astable modes for accurate timing delay generation.
- It is part of the TLC series of timers from Texas Instruments, known for low-power CMOS technology.
- This component has no specific automotive or industrial standard approvals.
- The surface mount type ensures efficient assembly on printed circuit boards.
Product Description
Texas Instruments TLC555CD is a highly stable precision timer circuit designed for generating accurate time delays or oscillations. It features one internal timer within a compact 8-pin SOIC surface mount package, making it ideal for modern electronics requiring reliable timing components.
This timer operates with a supply voltage range from 2 V to 15 V and offers a propagation delay of just 75 ns under a 10 pF load. It performs reliably within a temperature range of 0°C to 70°C. The small form factor of 4.9 mm length and 1.58 mm height suits densely packed circuit layouts.
The TLC555CD can be used in either monostable (one-shot) or astable (oscillator) modes to create time delays from microseconds to several minutes, offering flexible timing solutions. The low-power CMOS design ensures minimal power consumption compared to traditional bipolar timers.
This device does not carry automotive or industrial approvals but is widely used in industrial automation, consumer electronics, communication systems, and laboratory instrumentation due to its versatility and precision.
This timer supports surface mount technology (SMT) for automated PCB assembly. Applications include pulse generation, timers, oscillators, and waveform generation. The TLC series offers both single and dual timer IC variants, with this model being a single timer.
The 8-pin SOIC package facilitates easy integration into compact electronic devices. Explore other semiconductor and Timer Circuit products at EnvMart for diverse electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLC555CD operates with a supply voltage range from 2 volts to 15 volts.
This timer features a maximum propagation delay of 75 nanoseconds at 10 pF test conditions.
The compact SOIC package of the TLC555CD measures 4.9 mm in length and 1.58 mm in height.
It operates reliably within a temperature range of 0°C to 70°C.
The TLC555CD can function in monostable (one-shot) or astable (oscillator) modes, allowing for flexible timing solutions.
This model features one internal timer.
The TLC555CD supports surface mount technology (SMT) for efficient assembly on printed circuit boards.
It is suitable for applications such as pulse generation, timers, oscillators, and waveform generation.
The TLC555CD has a pin count of 8.
This device does not carry automotive or industrial approvals but is widely used in various applications.
The TLC555CD is part of the TLC series of timers from Texas Instruments.
The propagation delay of 75 ns is specified under a load condition of 10 pF, which is important for timing accuracy.
