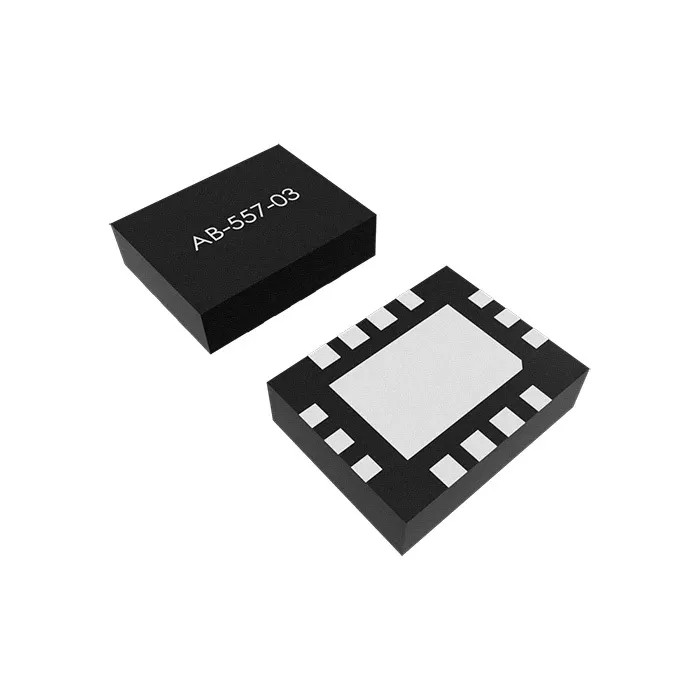

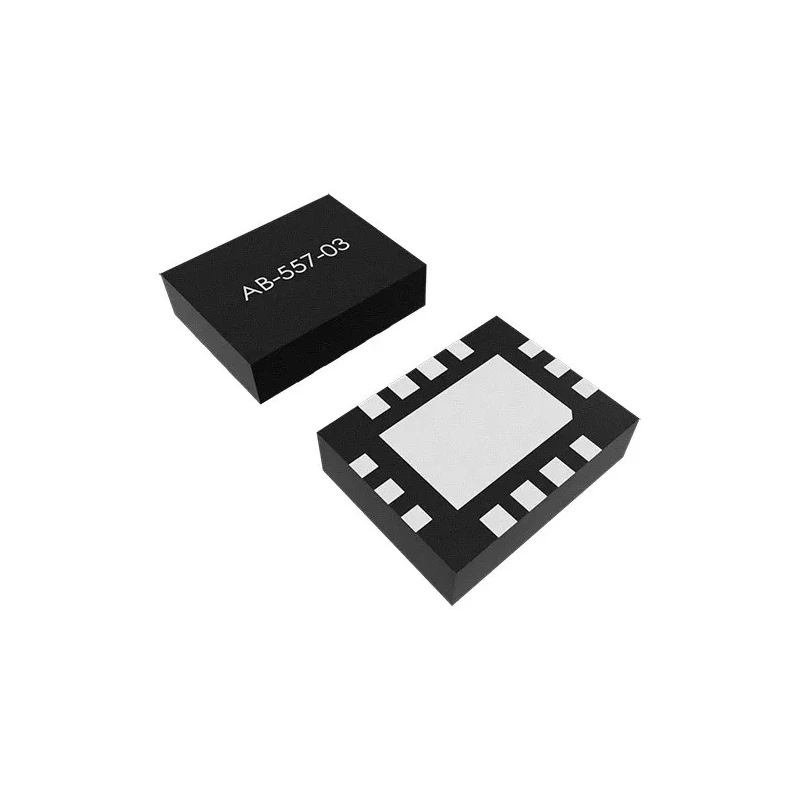

Abracon Frequency Synthesiser 5 Outputs 14-Pin Surface Mount TSSOP-16 3.6V AB-557-03-HCHC-F-L-C-T

The Abracon AB-557-03-HCHC-F-L-C-T is a high-performance frequency synthesiser designed for advanced clock generation applications. This dual output, 5-output configuration device is packaged in a compact 14-pin TSSOP-16 surface mount form factor measuring 3.2mm in length, 2.5mm in width, and 0.85mm in height. It operates on a supply voltage ranging from 2.25V up to 3.6V, making it highly adaptable for a variety of power sensitive designs.

This device features a maximum output frequency of 460 MHz and supports a wide range of mixed output formats including HCSL, LVPECL, LVDS, and LVCMOS. It is capable of operating reliably across a wide temperature range from -40°C to 85°C, ensuring suitability for harsh industrial, medical, and consumer electronics environments.

The synthesiser is compliant with RoHS and RoHS II standards, confirming its environmental compatibility and high manufacturing quality. Thanks to the crystal-less design employing cutting-edge MEMS technology provided by Discera, the device delivers ultra-miniature form factor solutions ideal for embedded systems.

Applications include PCI Express (PCIe) generation 1, 2, and 3 clocking, solid state storage area networks, passive optical networks, and high-speed Ethernet interfaces such as 1G and 10GBASE-T/KR/LR/SR, along with Fibre Channel over Ethernet (FCoE) systems. It also serves well in scanners, printers, and diverse consumer electronics requiring precise frequency control.

The device offers excellent shock and vibration immunity combined with low power consumption, enhancing durability and energy efficiency in demanding environments. Operates with a maximum output frequency of 460 MHz. Compact 14-pin TSSOP-16 package suitable for surface mount technology.

Wide operating temperature range from -40°C to 85°C for industrial applications. Wide supply voltage range from 2.25V to 3.6V ensuring flexibility. Multiple output formats including HCSL, LVPECL, LVDS, and LVCMOS for diverse signal compatibility.

RoHS and RoHS II compliant for environmental safety. Utilizes high-performance MEMS technology ensuring crystal-less clock generation. Ideal for PCIe Gen1, Gen2, and Gen3 compliant clock generation. Suitable for consumer, industrial, and medical electronic applications.

Robust shock and vibration resistance with low power usage. Explore more high-quality components in the Clock, Timing & Frequency ICs category for your industrial and electronic design needs at EnvMart.
