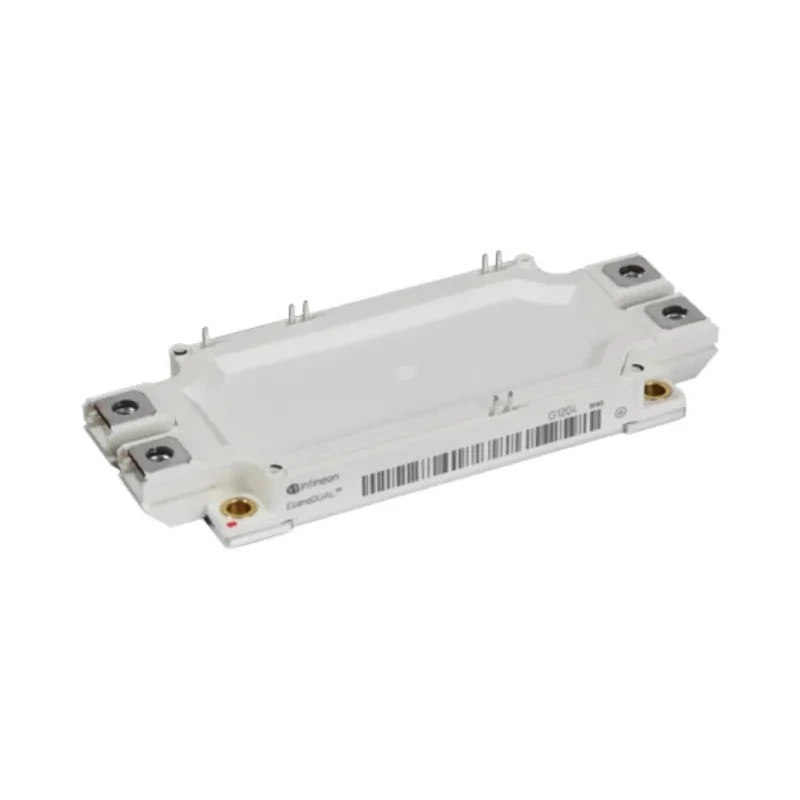

Infineon Inverter 300 A 1200 V 11-Pin AG-ECONOD Through Hole FF300R12ME7B11BPSA1

Infineon FF300R12ME7B11BPSA1 is a high-performance inverter module designed for demanding power electronics applications requiring robust operation. This device supports a maximum continuous collector current of 300 A and withstands collector emitter voltages up to 1200 V, making it suitable for high power industrial and automotive control systems.

The inverter features a durable 11-pin AG-ECONOD package with a through-hole mount type, ensuring secure installation and excellent mechanical reliability. It incorporates advanced TRENCHSTOP™ IGBT7 technology with a dual transistor configuration and emitter controlled 7 diode. This technology enhances switching speed, reduces losses, and improves overall efficiency.

Operating comfortably across a wide temperature range from -40°C to 175°C, this inverter module is built to perform reliably in harsh environments. With dimensions of 152mm length, 62.5mm width, and 20.5mm height, the compact design facilitates integration into various power control assemblies.

The Infineon inverter module features PressFIT contact technology and an integrated NTC sensor for temperature monitoring, enhancing safety and longevity. The isolated base plate design provides high power density while ensuring electrical isolation for safe operation.

Compliant with international standards including 60068, 60749, and IEC 60747, this product meets rigorous quality and performance criteria for industrial use. Its compatibility with both press-in and soldering processes adds flexibility during assembly and manufacturing.

This inverter is ideal for use in industrial machinery, power supply modules, HVAC systems, motor drives, and automotive electrical equipment. Its reliable electrical characteristics and rugged design make it a preferred choice for demanding electronic and power control applications.

This inverter module supports a maximum continuous collector current of 300 A. Rated for a maximum collector emitter voltage of 1200 V to handle high-power applications. Constructed with two transistors and uses TRENCHSTOP™ IGBT7 technology for high performance.

Equipped with an 11-pin AG-ECONOD package designed for through-hole mounting. Operates between -40°C and 175°C, supporting a wide temperature range for industrial use. Measures 152mm in length, 62.5mm in width, and 20.5mm in height for compact integration.

Features emitter controlled 7 diode, NTC sensor and PressFIT contact technology for reliable connections. Complies with standards including 60068, 60749, and IEC 60747 for quality assurance. This module offers high power density with an isolated base plate for safe operation.

Suitable for press-in and soldering processes in industrial, automotive, and power electronics applications. Explore a wide range of Inverter modules and power devices at EnvMart to find the best solutions for your electronics projects and industrial applications.
