Cinch Automotive Connector Female Green Panel 20 Way Crimp Termination JA778510000E000

Free Delivery in India | Lowest Global Shipping Charges

Cinch Automotive Connector Female Green Panel 20 Way Crimp Termination JA778510000E000

Name: Cinch Automotive Connector Female Green Panel 20 Way Crimp Termination JA778510000E000
Brand: Cinch
SKU: 138918



Category Automotive Connector Brand Cinch Condition New

Specifications

Country of Origin	United Kingdom
Brand	Cinch
Colour	Green
Current	5A
Height	35mm
Model	JA778510000E000
Depth	41mm
IP Rating	IP67
Width	35mm
Gender	Female
Mount Type	Panel
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Termination Type	Crimp
Maximum Operating Temperature	100°C
Sub Type	Automotive Connector
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Contact Plating	Silver
Number of Contacts	20

Key Features

Female connector designed for panel mounting applications with 20 contact points.
Termination type is crimp, ensuring secure and stable wiring connections.
Operates safely up to 5A current with maximum working voltages of 636Vac and 900Vdc when enclosed.
Housing is green thermoplastic material providing corrosion resistance and IP67 ingress protection.
Suitable for operating temperatures ranging from -40°C to 100°C.
Contacts are made from copper alloy plated with silver for enhanced conductivity and corrosion resistance.
Meets RoHS environmental compliance standards.
Compatible with interchangeable moulded cover shells and retaining clips for cable mounting sold separately.

Product Description

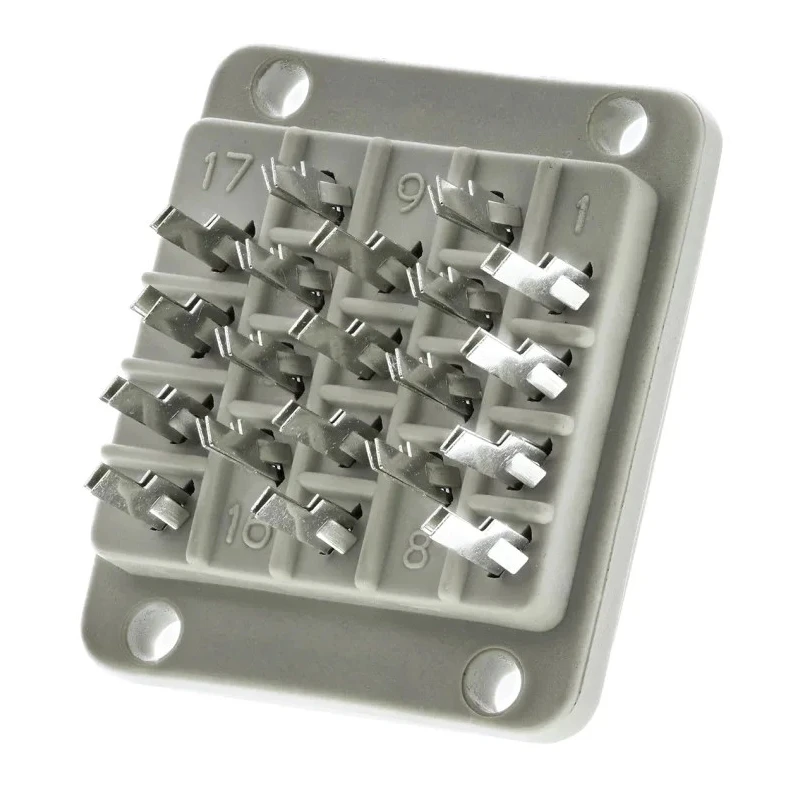

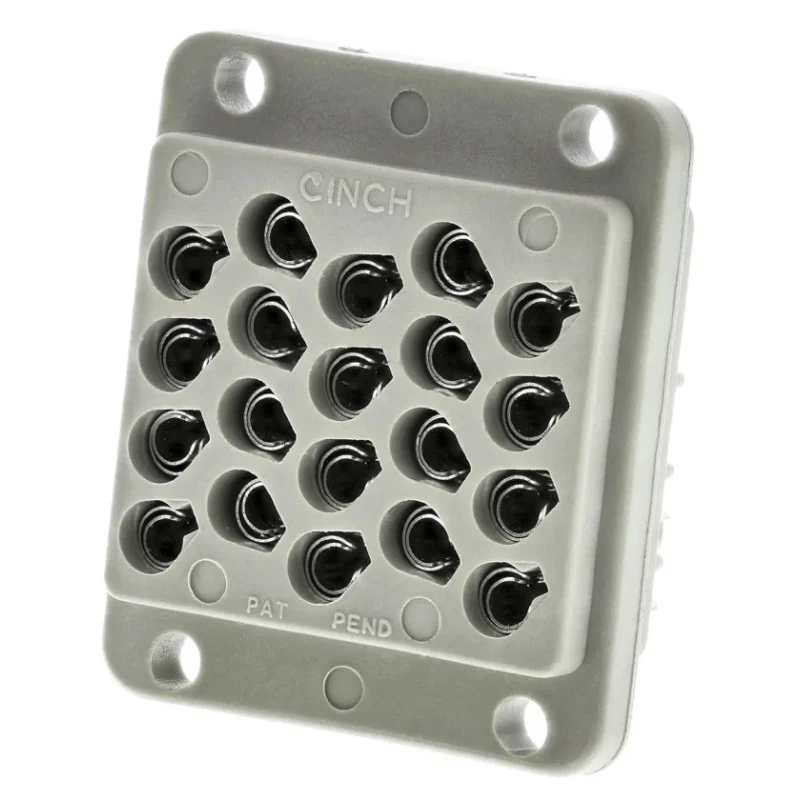

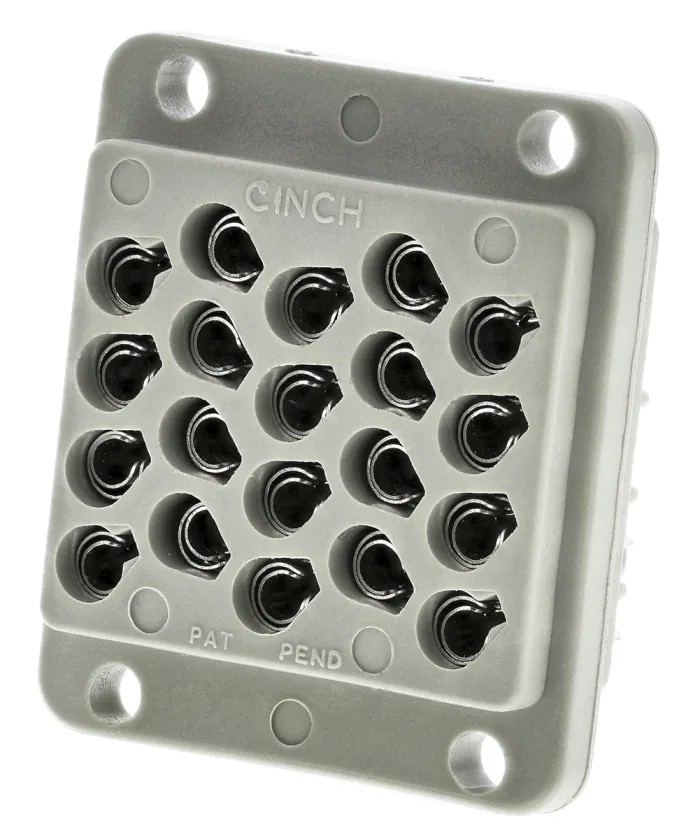

Cinch JA778510000E000 Automotive Connector is a high-quality female panel-mount Automotive Connector featuring 20 contacts with crimp termination. It is engineered for robust and reliable electrical connectivity in automotive and industrial applications.

This connector incorporates a green thermoplastic housing that offers corrosion resistance and IP67 rated protection against dust and water ingress, suitable for harsh environments. The contacts are crafted from copper alloy with silver plating to ensure optimal electrical conductivity and resistance to oxidation.

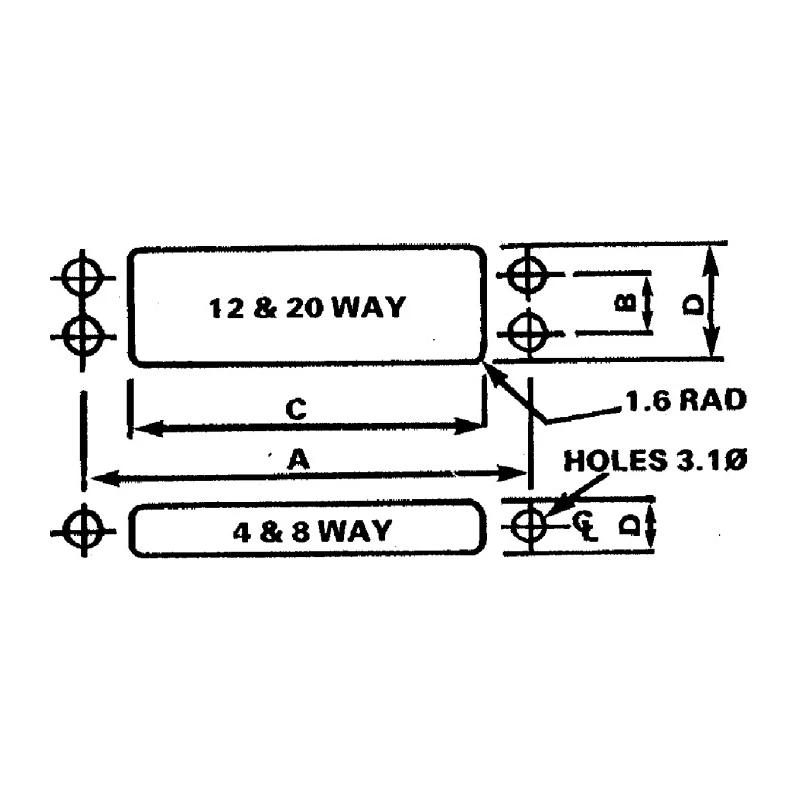

Designed to handle a current of 5A, the connector supports a maximum working voltage of 636Vac or 900Vdc when enclosed. For safety in accessible conditions, derating applies to 35Vac rms and 50Vdc. The connector mounts securely on panels with its compact dimensions of 35mm width, 35mm height, and 41mm depth facilitating integration into various setups.

This product meets RoHS compliance, affirming its adherence to environmental standards. Cover shells for cable mounting are available separately, complete with fixing screws, cable clamps, and retaining springs for secure installation. All metal parts, excluding contacts, provide corrosion resistance for longer service life.

Female panel mount connector with 20 crimp contacts. Green thermoplastic housing with IP67 rating. Copper alloy contacts plated with silver. 5A current capacity with a maximum of 636Vac/900Vdc enclosed voltage rating. Operating temperature range from -40°C to 100°C.

RoHS compliant environmentally friendly design. Interchangeable cover shells and retaining clips available. Dimensions: 35mm width, 35mm height, 41mm depth. Manufactured in the United Kingdom for quality assurance.

This connector is ideal for automotive electrical systems, industrial control panels, and machinery requiring secure, efficient, and weatherproof electrical connections. Its versatility and robust construction make it suitable for automotive repair shops, manufacturing plants, water-resistant installations, and other high-demand industrial environments.
