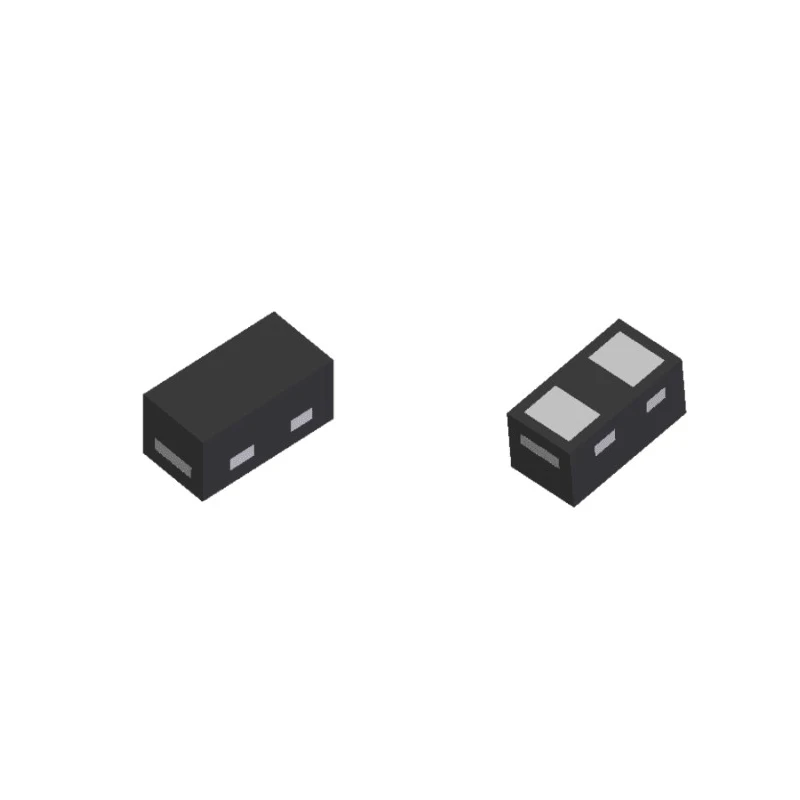

DiodesZetex 1-Element Bi-Directional TVS Diode 96 W Peak Pulse Power 2-Pin X3-DFN Package D3V3L1B2LP3-7

DiodesZetex D3V3L1B2LP3-7 is a 1-Element Bi-Directional TVS Diode featuring a peak pulse power dissipation of 96 W designed for surface mount applications. It provides robust transient voltage suppression to protect sensitive electronics from electrostatic discharge (ESD) and voltage spikes.

This TVS diode is housed in a compact X3-DFN package with 2 pins, suitable for integration in modern PCBs where space and performance are priorities. With a minimum breakdown voltage of 3.8 V and a maximum reverse stand-off voltage of 3.3 V, it offers effective voltage clamping at 8 V and can handle peak pulse currents up to 12 A.

Operating across a wide temperature range of -65°C to 150°C, this device is reliable in various industrial, automotive, and consumer electronics environments. It complies with the AEC-Q101 automotive standard ensuring high quality and durability. The diode has a maximum reverse leakage current of 200 nA, enhancing its efficiency.

Its dimensions of 0.64 mm length, 0.34 mm width, and 0.32 mm height allow compact implementation in portable electronics, digital cameras, cellular phones, LCD TVs, computers, and peripheral devices. The device is particularly effective in suppressing ESD surges up to ±30 kV for both air and contact discharge.

This diode features a bi-directional configuration for effective protection against voltage spikes. The compact surface mount X3-DFN package supports easy PCB integration with a 2-pin count. Its minimum breakdown voltage is 3.8 V with a maximum reverse stand-off voltage of 3.3 V.

Capable of handling a maximum peak pulse current of 12 A with an 8 V clamping voltage. Designed for broad operating temperature range from -65°C to 150°C. Offers excellent ESD protection compliant with AEC-Q101 automotive standard.

Dimensions: length 0.64 mm, width 0.34 mm, height 0.32 mm support compact electronic designs. Ideal for sensitive devices such as LCD TVs, computers, and portable electronics.

This product is manufactured in China under precise quality controls to ensure performance and reliability. The DiodesZetex D3V3L1B2LP3-7 TVS diode is a suitable choice for engineers and designers requiring dependable ESD protection in compact form factors.
