ROHM Digital Transistor 50 V NPN 500 mA Surface Mount SOT-346 3-Pin DTD113ZKT146

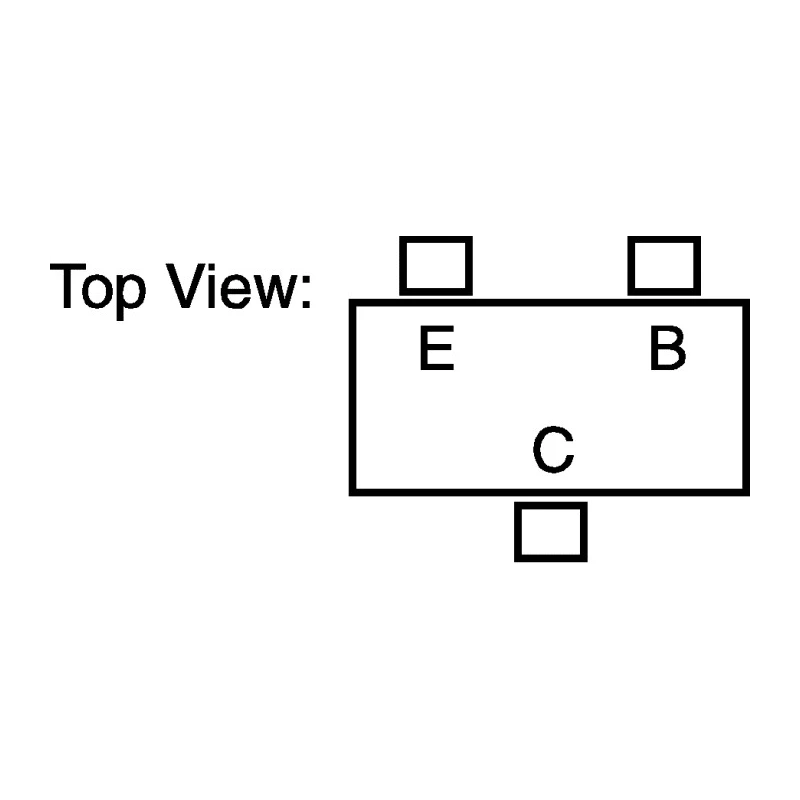

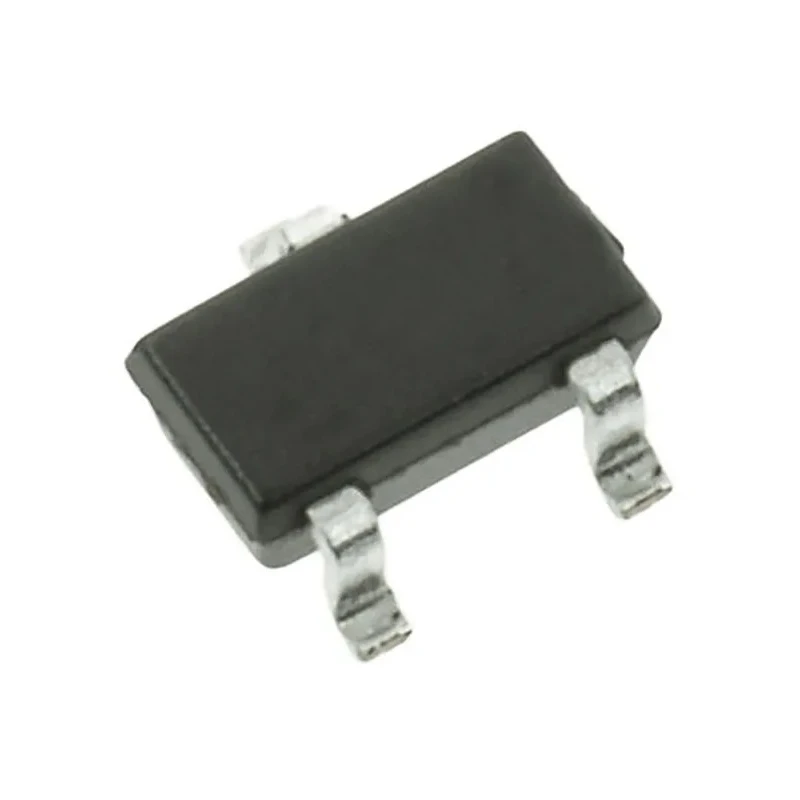

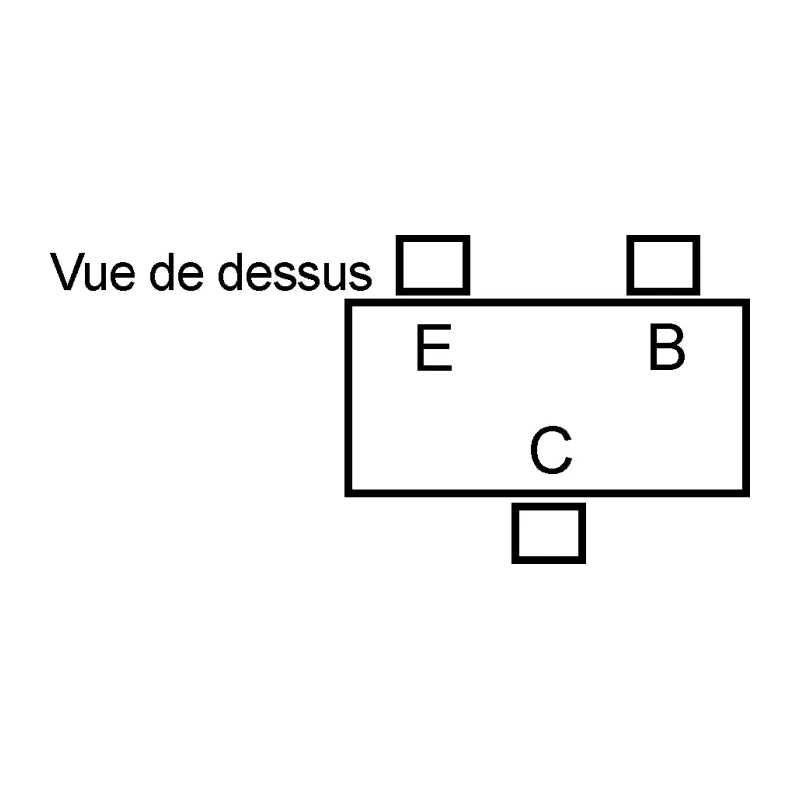

ROHM DTD113ZKT146 Digital Transistor is a high-performance NPN bipolar transistor integrated with dual bias resistors, designed specifically for digital input driving applications. Packaged in the small Surface Mount Technology package SOT-346 (SC-59) featuring 3 pins, this transistor combines compact size with efficiency, making it ideal for electronic components involving switching and amplification.

This transistor supports a maximum collector-emitter voltage (Vceo) of 50 V and a continuous collector current (Ic) rating up to 500 mA, enabling it to handle moderate power loads with a maximum power dissipation of 200 mW. The device is rated for operation at temperatures up to 150°C, ensuring reliability in demanding environments.

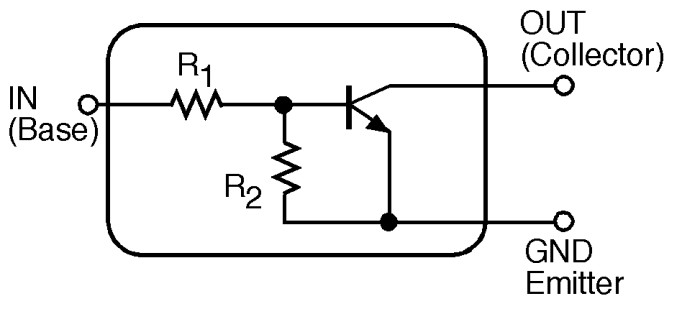

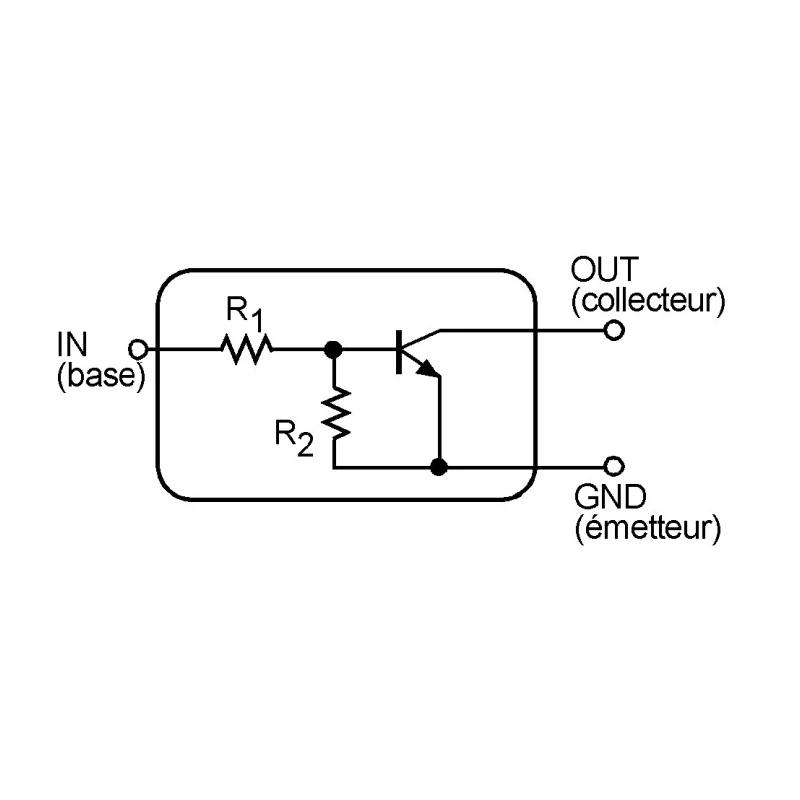

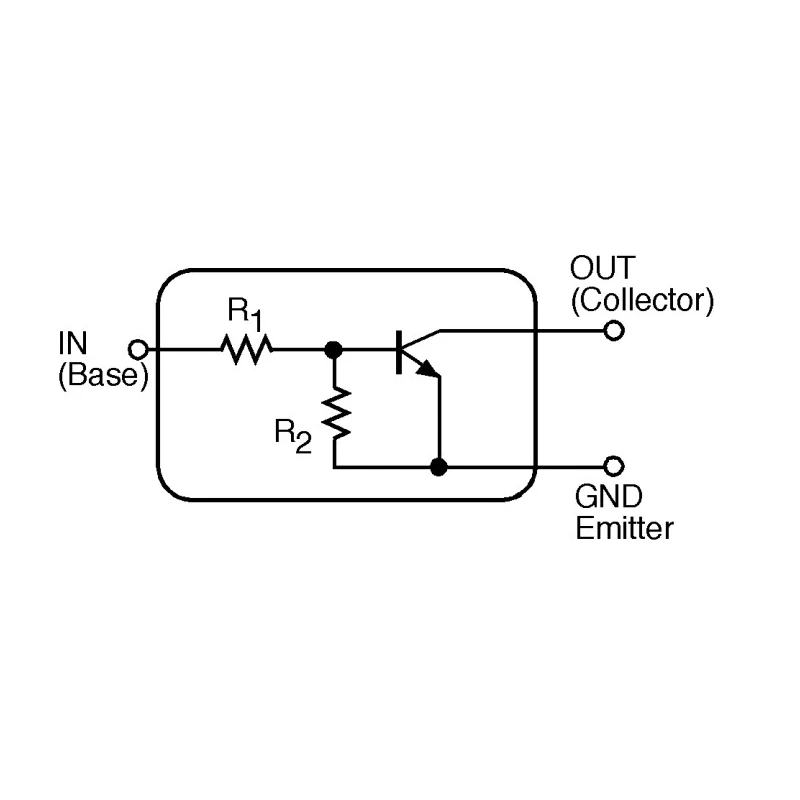

With a minimum DC current gain (hFE) of 56, the DTD113ZKT146 provides consistent and efficient transistor switching characteristics. Its dual resistor integration facilitates direct driving from digital sources without external biasing components, streamlining circuit design and enhancing manufacturing efficiency.

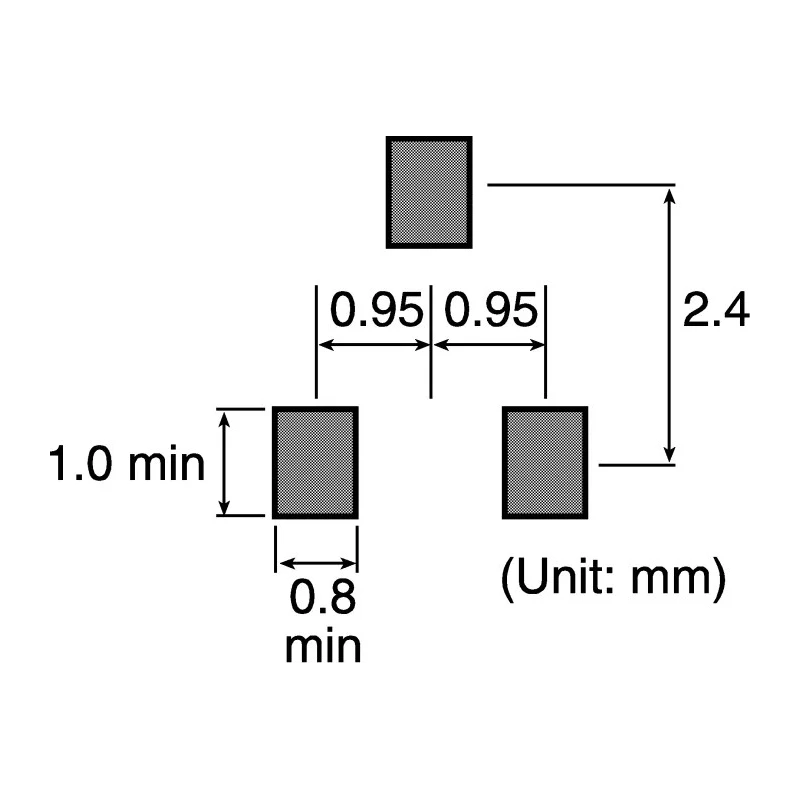

The transistor's compact footprint measures 2.9 mm in length, 1.6 mm in width, and 1.1 mm in height, making it suitable for space-constrained designs. This Digital Transistor is widely applicable in various industrial, laboratory, and electronic equipment requiring precise digital control and switching functions.

This device is recommended for industrial electronics, power management circuits, and general-purpose digital switching applications. The surface mount package optimizes PCB space and supports automated assembly lines. It is not automotive standard certified, and no specific safety approvals are indicated.

Being a new product from ROHM, it comes with assured quality and conformity to semiconductor standards. Explore more digital and bipolar transistors in the semiconductor category at EnvMart for your electronic design needs.
