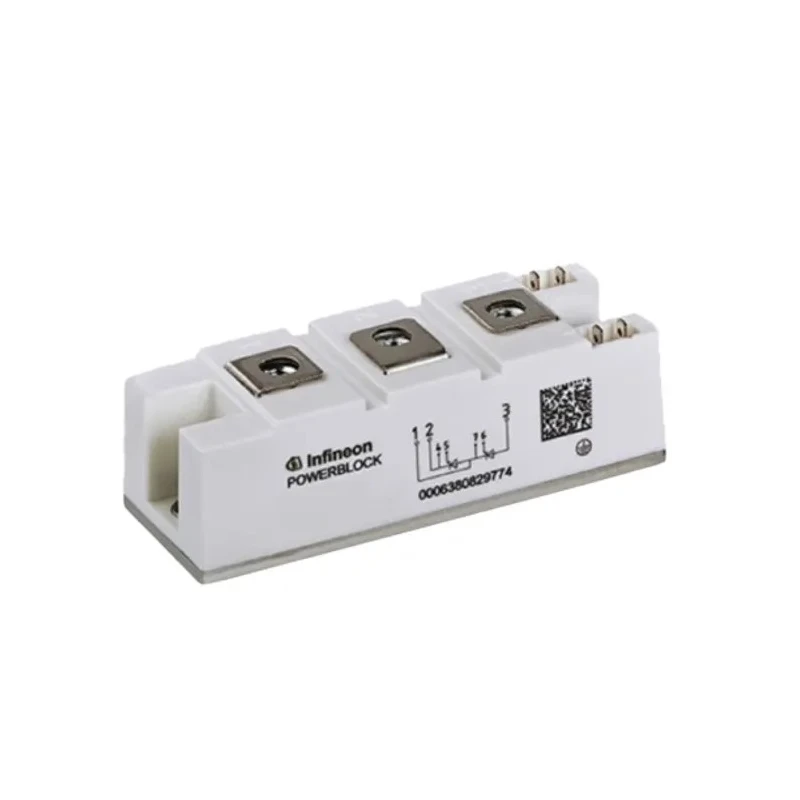

Infineon 2200 V 226 A Diode Module General Purpose 3-Pin Eco Block DD220N22SHPSA1

Infineon DD220N22SHPSA1 is a general purpose diode module designed for demanding high-power applications requiring a maximum continuous forward current of 226 A and peak reverse repetitive voltage of 2200 V. This 3-pin Eco Block module incorporates a dual diode series configuration that ensures reliability and efficiency in rectification processes.

The screw mount design facilitates secure assembly and maintenance in electrical automation and power management systems. The electrically insulated base plate safeguards operational safety and enhances heat dissipation, enabling stable performance at junction temperatures up to 150°C.

With peak non-repetitive forward surge current capacity of 5750 A, the diode module can withstand significant transient current spikes encountered in industrial environments such as UPS systems and battery charging installations.

The Eco Block package is compact, measuring 94 mm in length, 34 mm in width, and 30 mm in height, allowing integration into various power electronic designs with space constraints. The maximum forward voltage drop of 1.39 V ensures efficiency by minimizing conduction losses.

This product finds application in industrial automation, uninterruptible power supplies, battery charging systems, and other general electrical rectification tasks where robustness and reliable high current capacity are critical.

This diode module features a robust dual diode series configuration suited for high-power applications. The device supports a peak reverse repetitive voltage of 2200 V for reliable high-voltage operation. Screw mounting allows secure and versatile installation in various electrical systems.

The diode withstands peak surge currents up to 5750 A for transient overloads. Electrically insulated base plate ensures safe operation and enhanced thermal performance. Designed for industrial automation, uninterruptible power supplies, and battery charging systems.

Operates reliably in extreme environments with a temperature range of -40°C to 150°C. The compact Eco Block package measures 94 mm length, 34 mm width, and 30 mm height for efficient system integration. The maximum forward voltage drop is 1.39 V, optimizing energy efficiency during conduction.

This product does not conform to specific automotive standards but is suited for general industrial use. Explore the Infineon Diode Module category on EnvMart to find reliable components for efficient power electronics and industrial automation solutions.
