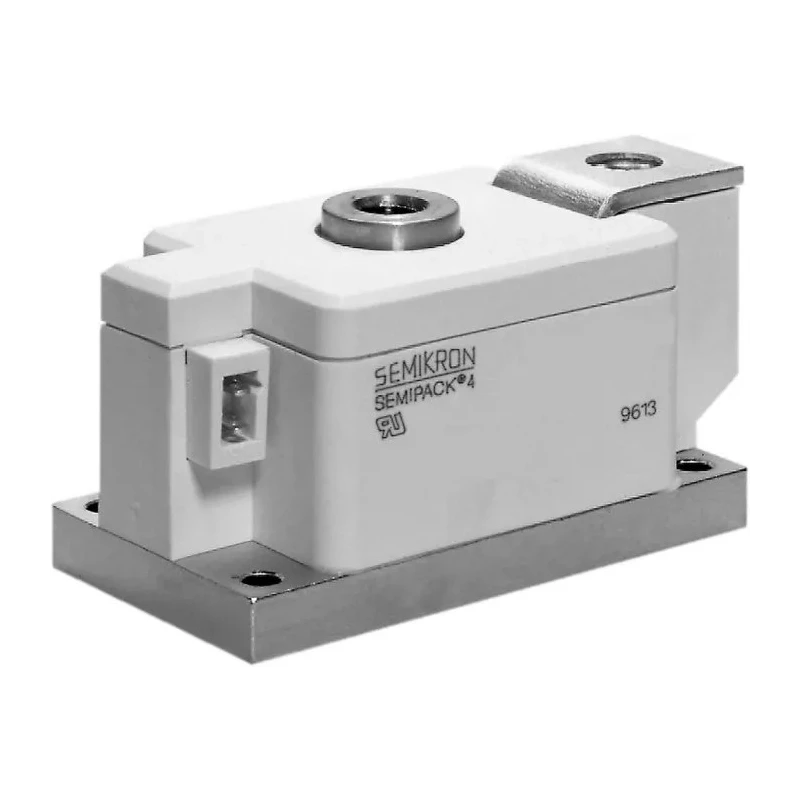

Semikron Danfoss Diode Module 1600 V 600 A General Purpose 7-Pin A-43 SKKE 600/16

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Diode Module 1600 V 600 A General Purpose 7-Pin A-43 SKKE 600/16

Name: Semikron Danfoss Diode Module 1600 V 600 A General Purpose 7-Pin A-43 SKKE 600/16
Brand: Semikron Danfoss
SKU: 386932
Price: 861.15 USD
Availability: InStock



Category Diode Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Slovakia
Brand	Semikron Danfoss
Height	52mm
Length	115mm
Model	SKKE 600/16
Width	50.3mm
Mount Type	Panel
Series	SKKE 600
Maximum Operating Temperature	130°C
Package Type	A-43
Minimum Operating Temperature	-40°C
Pin Count	7
Maximum Continuous Forward Current If	600A
Peak Reverse Repetitive Voltage Vrrm	1600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	100mA
Peak Non-Repetitive Forward Surge Current Ifsm	22kA
Maximum Forward Voltage Vf	1.5V
DIODE MODULE, 600A, 1600V, SEMIPACK 4Brand	Semikron

Key Features

The module features a 7-pin A-43 package type suitable for panel mounting.
It is designed to handle a maximum continuous forward current of 600A.
The peak reverse repetitive voltage is rated at 1600 V for robust performance in various applications.
Maximum forward voltage drop is low at 1.5 V, enhancing efficiency.
The device supports a wide operating temperature range from -40°C to 130°C.
The peak non-repetitive forward surge current rating is 22 kA, suitable for transient conditions.
Constructed with a ceramic isolated metal baseplate for excellent heat transfer and high reliability.
Suitable for industrial, power electronics, and high-current rectifier applications.

Product Description

Semikron Danfoss SKKE 600/16 is a robust diode module designed for high-current rectifier applications requiring reliable performance. This general purpose diode is housed in a 7-pin A-43 package and mounted on a panel, making it ideal for various industrial electronic systems.

It features a maximum continuous forward current rating of 600 A and can withstand peak reverse repetitive voltages of up to 1600 V. The diode configuration is single, optimized for power efficiency with a maximum forward voltage of 1.5 V, minimizing conduction losses. The wide temperature operating range from -40°C to 130°C ensures durability in harsh environments.

The device includes a ceramic isolated metal baseplate that aids in excellent heat dissipation, essential for maintaining stability during heavy-duty operations. Its compact dimensions of 115 mm length, 50.3 mm width, and 52 mm height allow seamless installation in power electronic assemblies. The peak non-repetitive forward surge current is rated at 22 kA, allowing it to handle occasional surge currents safely.

This diode is specifically suited for application in industrial power rectification, power supplies, motor drives, and other systems requiring reliable diode modules. Manufactured with high-quality materials in Slovakia, the SKKE 600/16 provides both performance and dependability.

The module features a 7-pin A-43 package for panel mounting. Maximum forward current of 600 A ensures handling of demanding load conditions. Peak reverse voltage rating of 1600 V provides voltage endurance. Low forward voltage drop of 1.5 V reduces power loss.

Wide operating temperature range from -40°C to 130°C enhances reliability. Peak surge current rating of 22 kA accommodates transient overloads. Compact size enables easy integration in industrial systems. Ceramic isolated metal baseplate ensures efficient heat dissipation.

Suitable for industrial, power electronics, and rectifier applications. New condition product manufactured in Slovakia. Explore more semiconductor and Diode Modules at EnvMart for your electronic component needs.
