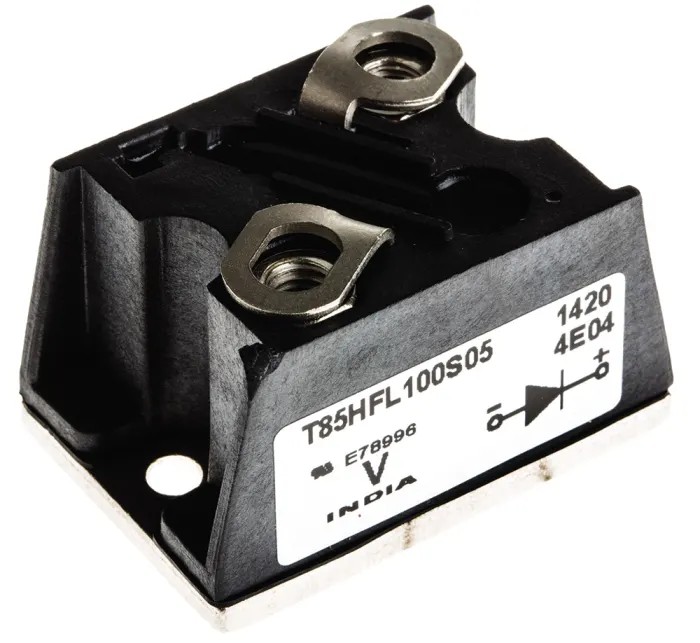

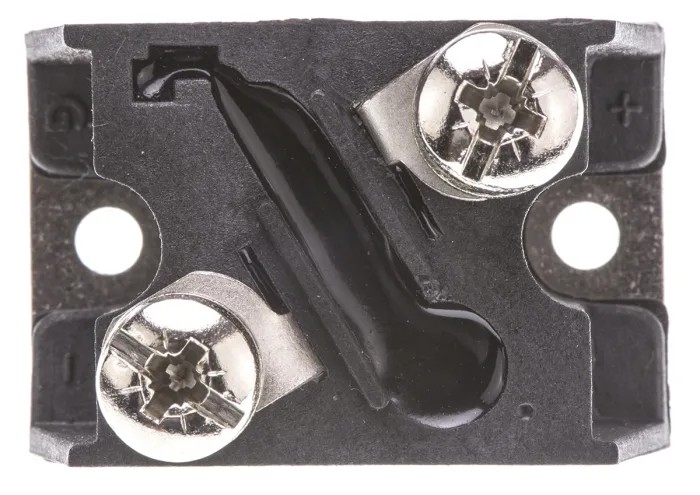

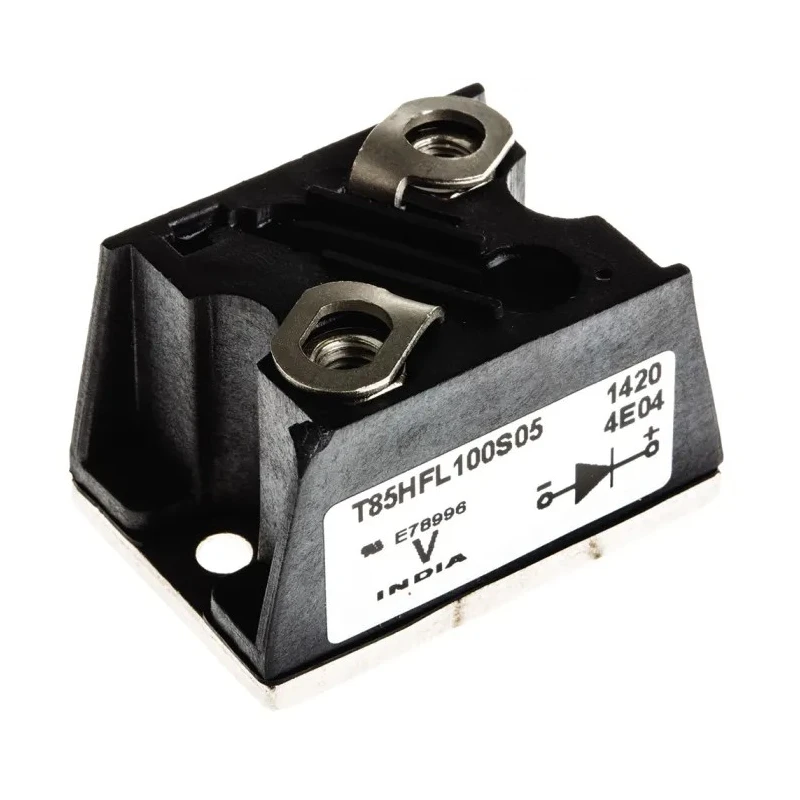

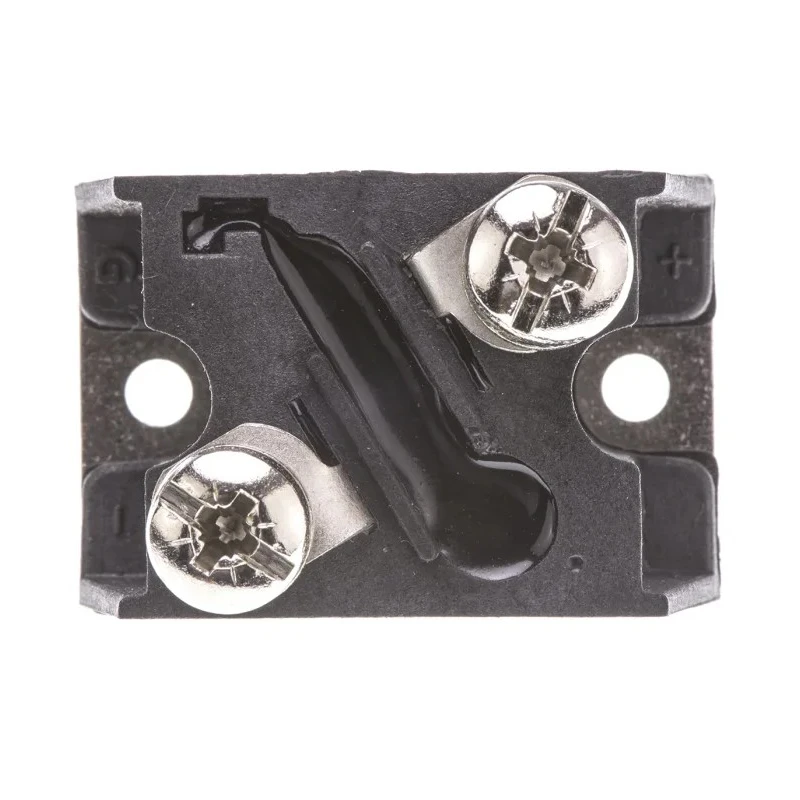

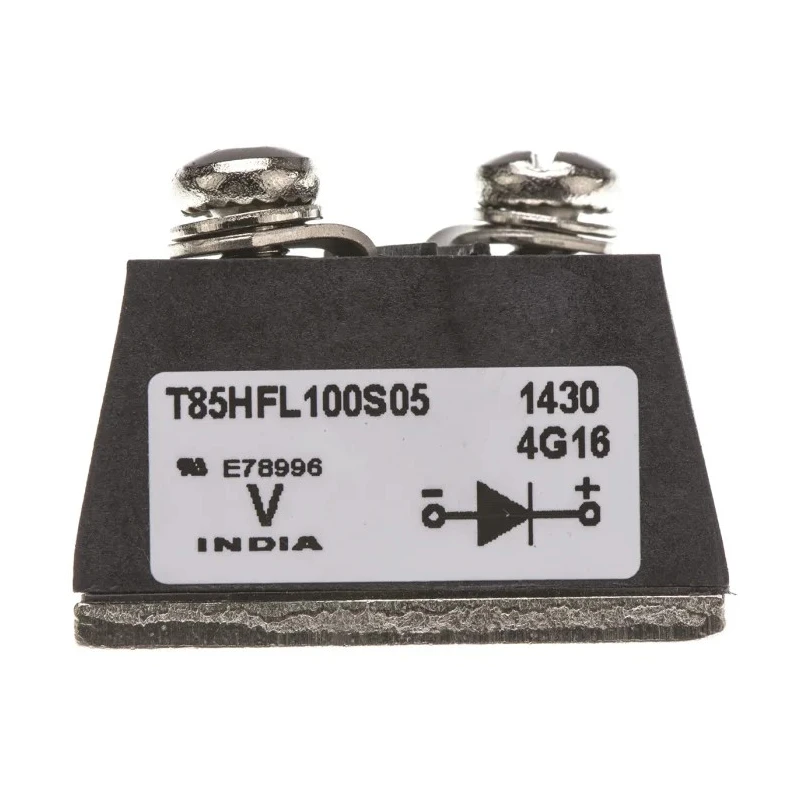

Vishay 1kV 85A Switching Diode 2-Pin Panel Mount T-Module VS-T85HFL100S05
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 25mm |
| Brand | Vishay |
| Height | 25mm |
| Length | 41mm |
| Model | VS-T85HFL100S05 |
| Width | 27mm |
| Mount Type | Panel |
| Series | VS-T85 |
| Maximum Operating Temperature | 125°C |
| Package Type | T-Module |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.4kA |
| Maximum Forward Voltage Vf | 1.55V |
| Peak Reverse Recovery Time trr | 500ns |
| Vishay 1 kV 40 A Diode Switching 2-Pin T-ModuleBrand | Vishay |
Key Features
- Fast recovery time characteristics enable efficient switching.
- Electrically isolated base plate allows common heatsink usage.
- Built with a JEDEC standard T-module package for simplified assembly.
- Peak reverse recovery time is 500 nanoseconds supporting high-speed operations.
- Operating temperature range from -40°C to 125°C suits industrial environments.
- Peak non-repetitive forward surge current capacity of 1.4 kA for surge tolerance.
- Single diode configuration ideal for use as freewheel diode with thyristor modules.
- Applications include inverters, DC choppers, motor control, inductive heating, and electronic welding.
Product Description
Vishay VS-T85HFL100S05 is a high-performance switching diode module designed for industrial and power electronic applications. This single diode T-module offers a maximum continuous forward current rating of 85 A and a peak reverse repetitive voltage of 1 kV, making it suitable for demanding power switching tasks.
The diode features fast recovery time of 500 nanoseconds, ensuring minimal switching losses and improved efficiency in self-commutated inverters, DC choppers, motor controls, and inductive heating equipment. Its electrically isolated base plate simplifies mechanical design and allows for common heatsink integration to manage thermal loads efficiently.
Packaged in a JEDEC standard T-module with dimensions roughly 41 mm × 27 mm × 25 mm, this Diode Module facilitates compact and robust assembly options. The device withstands operating temperatures ranging from -40°C to 125°C, supporting a wide array of industrial environments.
With a peak non-repetitive forward surge current rating of 1.4 kA, the VS-T85HFL100S05 can handle sudden current surges, making it reliable for rugged applications such as electronic welding and motor control.
The module is designed for use both individually and in conjunction with thyristor modules as a freewheel diode, providing flexibility in power electronics designs. Manufactured in India, it meets industrial quality standards but does not carry specific automotive approvals or certifications.
Fast recovery time characteristics. Electrically isolated base plate for common heatsink integration. Standard JEDEC T-module package ensures simplified mechanical design. High surge current capability of 1.4 kA peak non-repetitive forward current.
Wide operating temperature range from -40°C to 125°C. Compact dimensions of 41 mm length, 27 mm width, and 25 mm height. Single diode configuration for switching applications. Applications include inverters, DC choppers, motor controls, and electronic welders.
Manufactured in India maintaining industrial quality levels. Explore more semiconductor modules and power electronics components within EnvMart's Electronics & Electricals catalog to find compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-T85HFL100S05 is 85 A.
This diode module has a peak reverse repetitive voltage rating of 1 kV.
The dimensions of this diode module are approximately 41 mm in length, 27 mm in width, and 25 mm in height.
It has a peak non-repetitive forward surge current capacity of 1.4 kA.
The peak reverse recovery time for this model is 500 nanoseconds.
The operating temperature range for the VS-T85HFL100S05 is from -40°C to 125°C.
It is packaged in a JEDEC standard T-module, which simplifies assembly and design.
This diode module is suitable for applications including inverters, DC choppers, motor control, inductive heating, and electronic welding.
The diode features an electrically isolated base plate that allows for common heatsink usage, facilitating thermal management.
The rectifier type of the VS-T85HFL100S05 is a switching diode.
This model has a pin count of 2.
The Vishay VS-T85HFL100S05 is manufactured in India.
