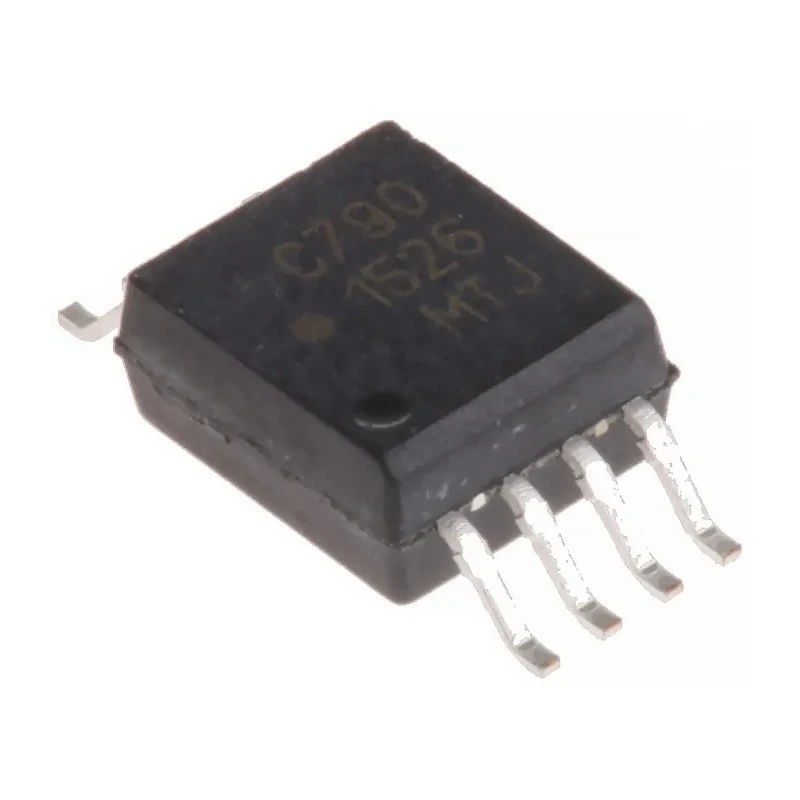

Broadcom Isolation Amplifier Precision Miniature 8-Pin SOIC 3-5.5V ACPL-C790-000E

Broadcom ACPL-C790-000E is a high-performance precision miniature isolation amplifier featuring sigma-delta modulator technology. It integrates isolation and measurement functions within an 8-pin SOIC surface mount package designed to operate at supply voltages from 3V to 5.5V.

This isolation amplifier delivers excellent common mode rejection (CMR), making it highly suitable for industrial environments requiring the separation of voltage and current signals to prevent interference and improve system reliability.

The single channel configuration targets applications such as phase current and bus voltage sensing in motor drives, power inverters, and general isolation circuits. Its low input offset voltage of 2 mV enhances measurement accuracy within demanding electronic designs.

Engineered to operate in harsh environmental conditions, this component supports operating temperatures from -40°C to 105°C, accommodating use in rugged industrial and manufacturing settings.

The compact footprint with dimensions of 5.85mm length and 3.18mm height facilitates dense PCB layouts and integration into space-constrained electronic assemblies.

Compared to Hall Effect isolation amplifiers, the ACPL-C790-000E offers a reliable alternative for current and voltage sensing, providing precision isolation along with built-in safety insulation.

Typical industrial and commercial applications include semiconductor devices, power converters, motor drives, and various power electronics circuits requiring isolation amplifiers for signal integrity.

Designed for industrial and electronic circuit isolation applications. Features a single channel for precise voltage and current sensing. Input offset voltage is low at 2 mV for accuracy. Operates reliably in temperatures ranging from -40°C to 105°C.

Surface mount package with compact dimensions of 5.85mm length and 3.18mm height. Utilizes sigma-delta modulator technology for high common mode rejection. Offers safety insulation ideal for power converters and motor drives.

Suitable alternative to Hall Effect Isolation Amplifiers in power electronics. RoHS compliant with no automotive standards certification. Supplied in tubes ready for PCB insertion. Explore EnvMart’s collection for a wide range of semiconductor amplifiers and electronic components designed to enhance your industrial and electronic projects.
