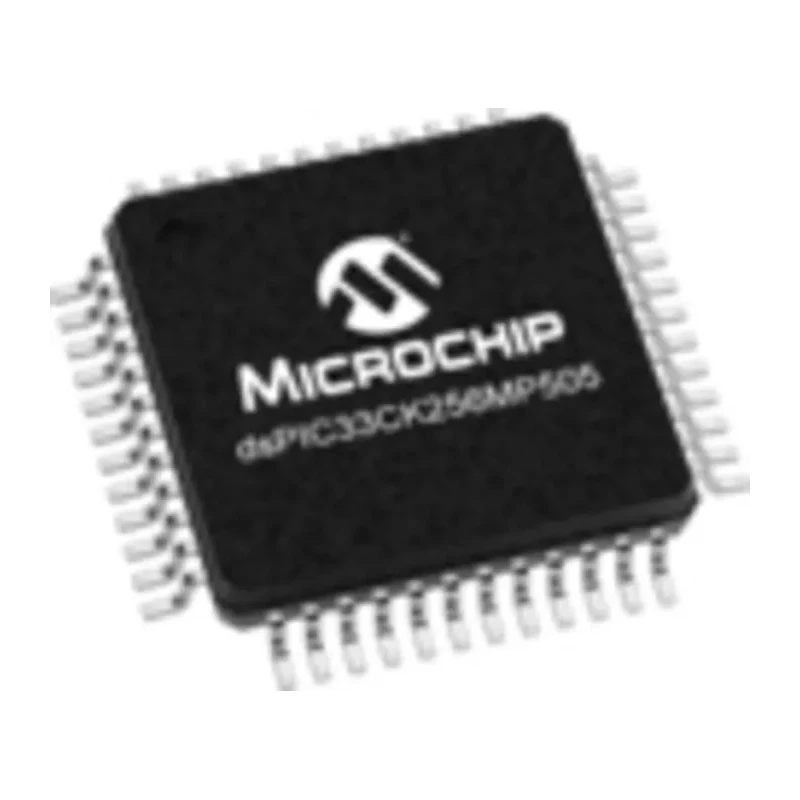

Microchip dsPIC Microprocessor 16 bit MPU 100 MHz 48-Pin TQFP dsPIC33CK256MP508
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.2mm |
| Length | 9mm |
| Model | dsPIC33CK256MP508 |
| Mount Type | Surface |
| Series | dsPIC33CK256MP508 |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 3.6V |
| Device Core | dsPIC |
| Maximum Clock Frequency | 100MHz |
| Instruction Set Architecture | MPU |
Key Features
- Operates at a maximum clock frequency of 100 MHz supporting real-time applications.
- Single 16-bit dsPIC core architecture with integrated DSP for energy-efficient motor control.
- Supports a wide operating temperature range from -40°C to 85°C for robust performance.
- Surface mount type with compact 9mm length and 1.2mm height for PCB integration.
- Compliant with RoHS standards and meets AEC-Q100 automotive standard for reliability.
- 16-bit data bus width with a 48-pin TQFP package ensuring versatile connectivity.
- Designed for controlling BLDC, PMSM, ACIM, SR, and stepper motors in industrial applications.
- Manufactured in the United States ensuring high quality and consistent performance.
Product Description
Microchip dsPIC33CK256MP508 is a highly capable 16 bit microprocessor featuring a single dsPIC digital signal controller (DSC) core that operates at up to 100 MHz. It is designed for applications that demand precise, energy-efficient motor control in industrial, automotive, and manufacturing environments.
This microprocessor integrates advanced DSP functions and enhanced on-chip peripherals to enable quiet and efficient control of motor types including BLDC, PMSM, ACIM, SR, and stepper motors. It supports a supply voltage range of 3.0V to 3.6V and operates reliably over a temperature range of -40°C to 125°C, making it suitable for harsh conditions.
The dsPIC33CK256MP508 uses a modified Harvard architecture with 16-bit data and 24-bit instructions, supporting code-efficient development in both C and assembly languages. Interrupt handling is enhanced with multiple interrupt context saving registers for fast response times. Hardware acceleration for multiplication and division operations provides single-cycle execution, improving processing speed for complex control algorithms.
Packaged in a 48-pin TQFP surface mount, the compact dimensions of 9mm length and 1.2mm height facilitate easy integration into printed circuit boards. The product complies with RoHS environmental standards and meets the AEC-Q100 automotive reliability standard, reinforcing its suitability for automotive and industrial applications.
Operates at 100 MHz clock frequency for high-performance processing. Single dsPIC core with integrated DSP for precision motor control. Extended operating temperature range enables use in automotive and industrial settings.
Compact 48-pin TQFP package suitable for surface mount PCB design. Meets RoHS and AEC-Q100 automotive standards for quality and compliance. Integrated peripherals optimize functionality and reduce system complexity. Manufactured in the United States ensuring premium quality control.
This microprocessor is ideal for designers and engineers developing efficient motor control systems in sectors such as manufacturing, HVAC, automotive, and robotics. It supports the development of quieter and more energy-efficient motors, contributing to extended equipment life and better performance.
Discover a broad range of advanced Microprocessors and microcontrollers designed for demanding electronic component applications in EnvMart's semiconductor section.
