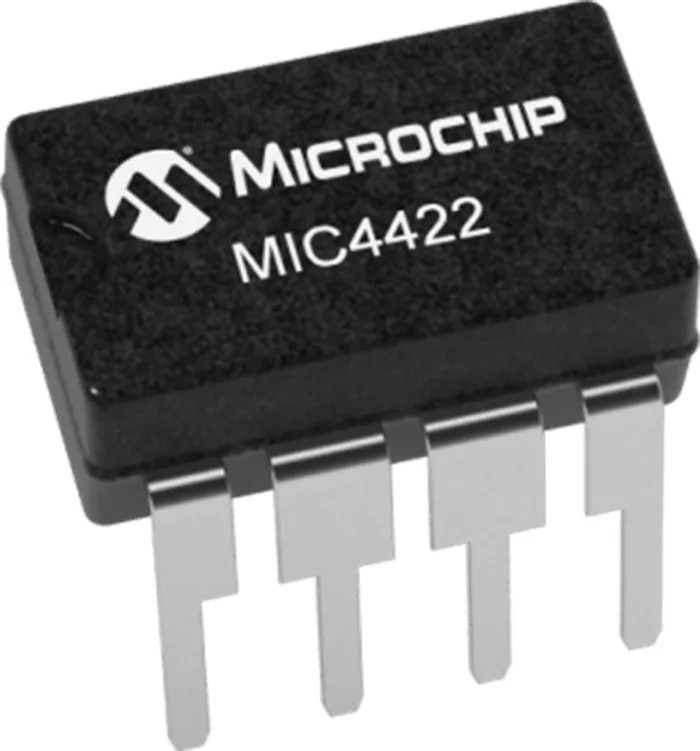

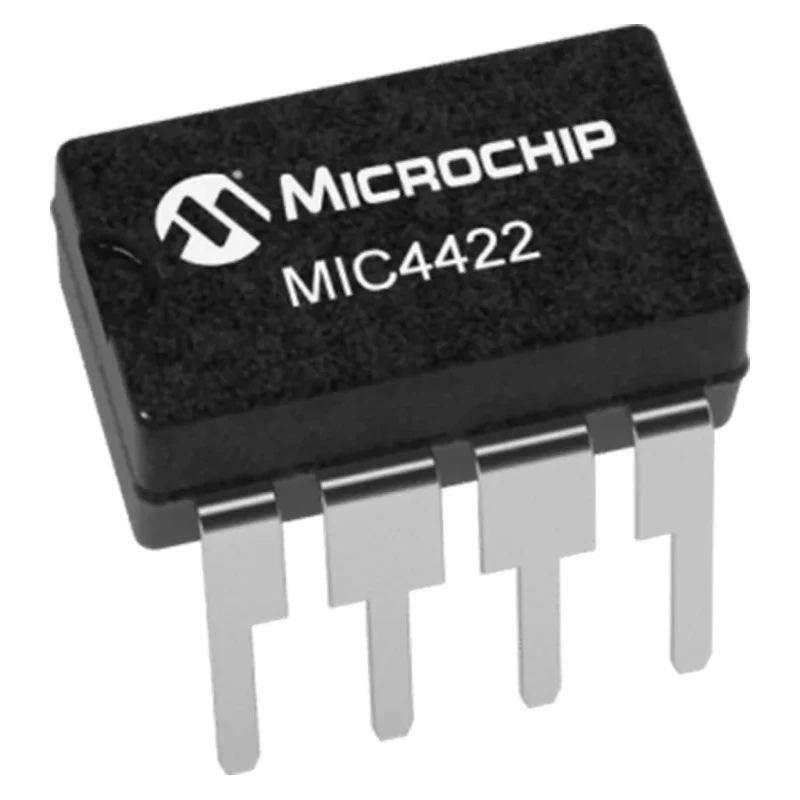

Microchip MOSFET Gate Driver 9A Output Current 8-Pin SOIC Package MIC4422YM

Microchip MIC4422YM is a high-performance MOSFET gate driver specifically engineered to provide reliable and efficient power management solutions in electronic circuits. With a peak output current of 9 amps, it is suitable for driving large MOSFETs in applications requiring high speed and precision.

This device features an 8-pin SOIC surface mount package, enabling compact PCB designs. The MIC4422YM supports an operating supply voltage up to 18 volts and performs optimally over a wide temperature range from -40°C to +85°C, making it ideal for demanding industrial environments.

The gate driver delivers fast switching characterized by rise and fall times of approximately 120 nanoseconds. It incorporates a single driver with five output stages, simplifying integration into complex power designs.

Designed with a fully isolated process technology, the MIC4422YM is latch-up proof, enhancing its durability and reliability under varying electrical conditions. It handles logic input voltages from 2.4V to the supply voltage without the need for external speed-up capacitors or resistor networks. Furthermore, its unique input design tolerates negative voltage swings up to 5 volts, providing protection against transient conditions.

High peak output current of 9A peak (typical) allows driving large MOSFETs effectively. Wide typical operating voltage range from 4.5V to 18V provides design flexibility. Fast rise and fall times of 120ns cater to high-speed switching requirements.

Single driver with 5 outputs enables versatile applications. Temperature range of -40°C to +85°C supports industrial-grade operation. Latch-up proof design ensures robustness against electrical faults. Input logic compatible from 2.4V to supply voltage eliminates extra components.

Enhanced input negative voltage swing tolerance protects the device. Compact SOIC 8-pin package reduces PCB space requirement.

Designed and manufactured in the United States, the MIC4422YM offers quality assurance for power management in electronics, industrial automation, motor drives, and other demanding applications. It is an essential component for engineers seeking high-current, robust gate driver ICs with superior switching performance.
