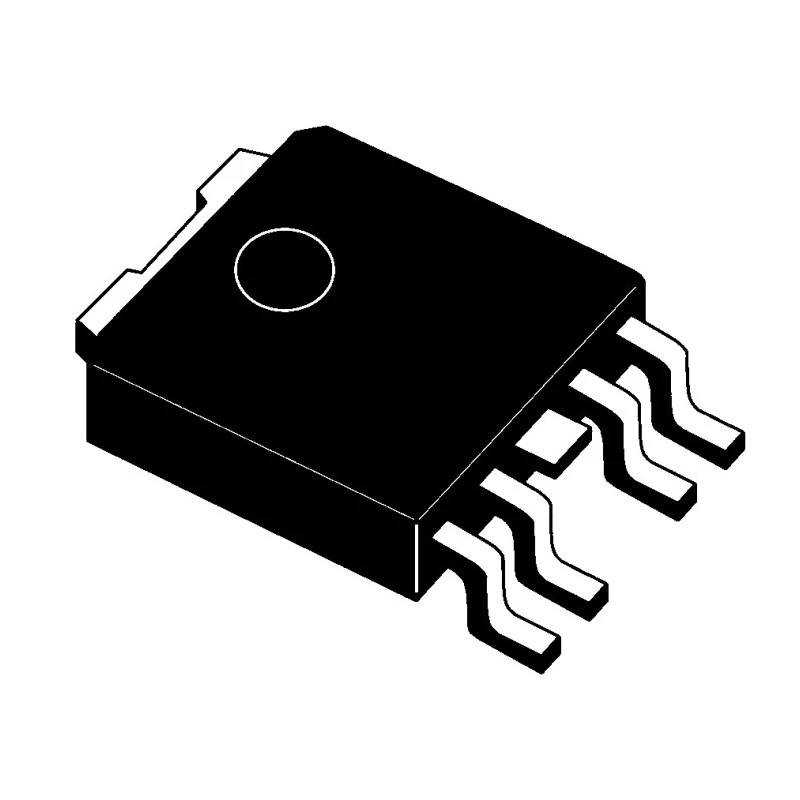

STMicroelectronics MOSFET Gate Driver 36V 2.5A 5-Pin Surface Mount P2PAK VN751PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | VN751PT |
| Width | 6.2mm |
| Mount Type | Surface |
| Output Current | 2.5A |
| Maximum Operating Temperature | 150°C |
| Package Type | P2PAK |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 12μs |
| Pin Count | 5 |
| Minimum Supply Voltage | 36V |
| Number of Drivers | 1 |
| Fall Time | 35μs |
| Driver Type | MOSFET |
Key Features
- This gate driver features a fast rise time of 12 microseconds.
- It offers a fall time of 35 microseconds ensuring efficient switching performance.
- The device operates reliably across a wide temperature range from -40°C to 150°C.
- Its compact dimensions of 6.6mm length, 6.2mm width, and 2.4mm height make it suitable for dense PCB layouts.
- Designed as an intelligent high-side power switch for streamlined power management in electronic circuits.
- Its P2PAK surface mount package aids in easy and secure board mounting.
- No automotive standard compliance, focusing on general industrial and electronic applications.
- Single output driver configuration with 5 outputs supports diverse control needs.
Product Description
STMicroelectronics VN751PT MOSFET Gate Driver is a high-performance power management IC designed to provide an output current of 2.5A with high efficiency and reliability. This 5-pin gate driver operates at a voltage of 36V and comes in a compact P2PAK surface mount package, making it ideal for integration in a variety of electronic assemblies.
It features precise switching characteristics with a rise time of 12 microseconds and a fall time of 35 microseconds, enabling efficient MOSFET control in power circuits. The device is designed to withstand harsh operating conditions across a temperature range of -40°C to 150°C, ensuring robust performance in industrial environments.
The VN751PT includes one driver output and five output pins supporting wide-ranging applications. Its dimensions (6.6mm length, 6.2mm width, 2.4mm height) make it suitable for compact designs. The gate driver is primarily used as an intelligent high-side power switch, integrating logic interface, drivers, diagnostic, and protection features for high-side configurations.
This product finds use in industrial electronics, power management systems, and energy control applications. It is not designed to comply with automotive standards but excels in general semiconductor and power management roles.
This gate driver features a fast rise time of 12 microseconds. It offers a fall time of 35 microseconds ensuring efficient switching performance. The device operates reliably across a wide temperature range from -40°C to 150°C.
Its compact dimensions of 6.6mm length, 6.2mm width, and 2.4mm height make it suitable for dense PCB layouts. Designed as an intelligent high-side power switch for streamlined power management in electronic circuits. Its P2PAK surface mount package aids in easy and secure board mounting.
No automotive standard compliance, focusing on general industrial and electronic applications. Single output driver configuration with 5 outputs supports diverse control needs.
This MOSFET Gate Driver is suitable for applications in electronic manufacturing, industrial automation, and power electronics development. Browse EnvMart’s extensive semiconductor and power management IC catalogs to find compatible components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VN751PT MOSFET gate driver provides an output current of 2.5A.
This model can operate reliably at a maximum temperature of 150°C.
The VN751PT has dimensions of 6.6mm in length, 6.2mm in width, and 2.4mm in height.
The rise time of the VN751PT is 12 microseconds.
The fall time for this gate driver is 35 microseconds.
This model features five output pins.
The VN751PT is packaged in a P2PAK surface mount format.
The minimum supply voltage required for the VN751PT is 36V.
This gate driver operates within a temperature range of -40°C to 150°C.
The VN751PT is suitable for applications in electronic manufacturing, industrial automation, and power electronics development.
The VN751PT includes one driver in its configuration.
This model is designed as an intelligent high-side power switch for streamlined power management in electronic circuits.
