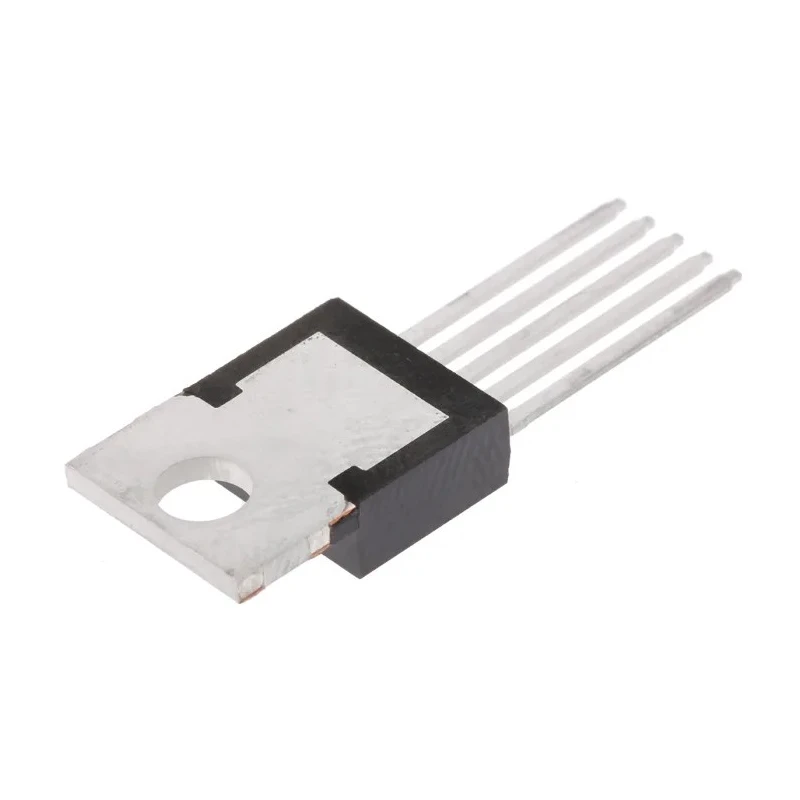

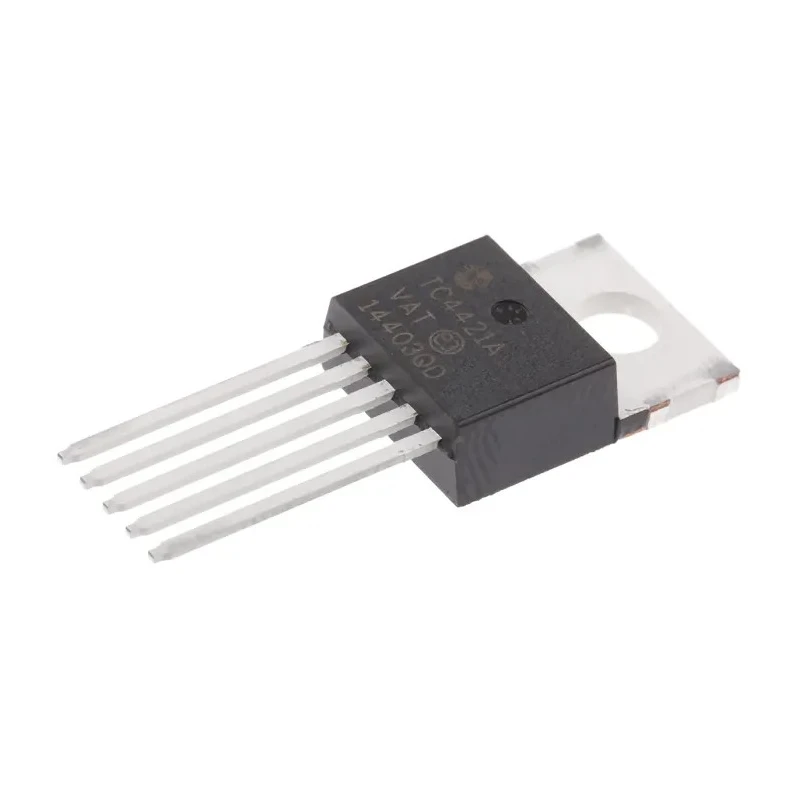

Microchip MOSFET Gate Driver 10 A 5-Pin 20V TO-220 TC4421AVAT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 9.02mm |
| Length | 10.67mm |
| Model | TC4421AVAT |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | TC4421A |
| Output Current | 10A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 28ns |
| Pin Count | 5 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 1 |
| Fall Time | 26ns |
| Driver Type | MOSFET |
| ER - 9A SNGL MOSFET DRVRBrand | Microchip |
| Microchip TC4421CAT MOSFET Gate Driver 1, 9 A 5-Pin 20V, TO-220Brand | Microchip |
Key Features
- Supports a maximum supply voltage of 20V for high power handling.
- Through Hole mount type ensures secure PCB installation.
- Features fast switching with 26ns fall time and 28ns rise time.
- Operates reliably between -40°C and 125°C ambient temperatures.
- Compact dimensions of 10.67mm length, 9.02mm height, and 4.83mm width.
- Designed as a single MOSFET driver with 5 outputs for high-efficiency switching.
- Ideal for industrial, power management, and semiconductor applications.
- Series TC4421A devices for consistent performance in demanding environments.
Product Description
Microchip TC4421AVAT MOSFET Gate Driver is a high-performance power management IC tailored for controlling MOSFETs with output currents up to 10 A. Encapsulated in a durable TO-220 5-pin package with through-hole mounting, this device features a wide operating voltage range from 18V minimum to 20V maximum supply voltage to support robust switching applications.
The driver achieves fast switching speeds with a fall time of 26 nanoseconds and rise time of 28 nanoseconds, enhancing the efficiency of power conversion circuits. It operates reliably over a wide temperature range from -40°C to +125°C, ensuring durability in industrial and commercial environments.
With compact physical dimensions (length 10.67 mm, height 9.02 mm, and width 4.83 mm), the TC4421AVAT integrates seamlessly into space-constrained PCBs. The single driver with 5 outputs makes it suitable for controlling multiple MOSFET gates simultaneously in power management and control systems.
Typical applications include industrial power supply control, motor control, battery management, and semiconductor interface circuits. The device complies with standard quality and reliability expectations, although no specific automotive certifications are applicable.
Maximum output current: 10A. Supply voltage range: 18V to 20V. Fast switching times: 26ns fall time, 28ns rise time. Operating temperature range: -40°C to 125°C. Package: TO-220, 5-pin Through Hole. Single driver design with 5 outputs.
Series TC4421A, known for dependable MOSFET drive performance.
This Microchip MOSFET Gate Driver supports a variety of industrial and electronic use cases, particularly where precise, high-current switching is required. EnvMart categories and Microchip product lines highlight this essential semiconductor component for power control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 20V.
It supports an output current of up to 10A.
The dimensions are 10.67mm in length, 9.02mm in height, and 4.83mm in width.
It operates reliably between -40°C and 125°C.
The rise time is 28ns and the fall time is 26ns.
This model features 5 outputs for controlling multiple MOSFET gates.
It utilizes a through-hole mount type for secure PCB installation.
Typical applications include industrial power supply control, motor control, battery management, and semiconductor interface circuits.
It is packaged in a TO-220 5-pin configuration.
This model is part of the TC4421A series.
The minimum supply voltage is 18V.
The TC4421AVAT is manufactured in India.
