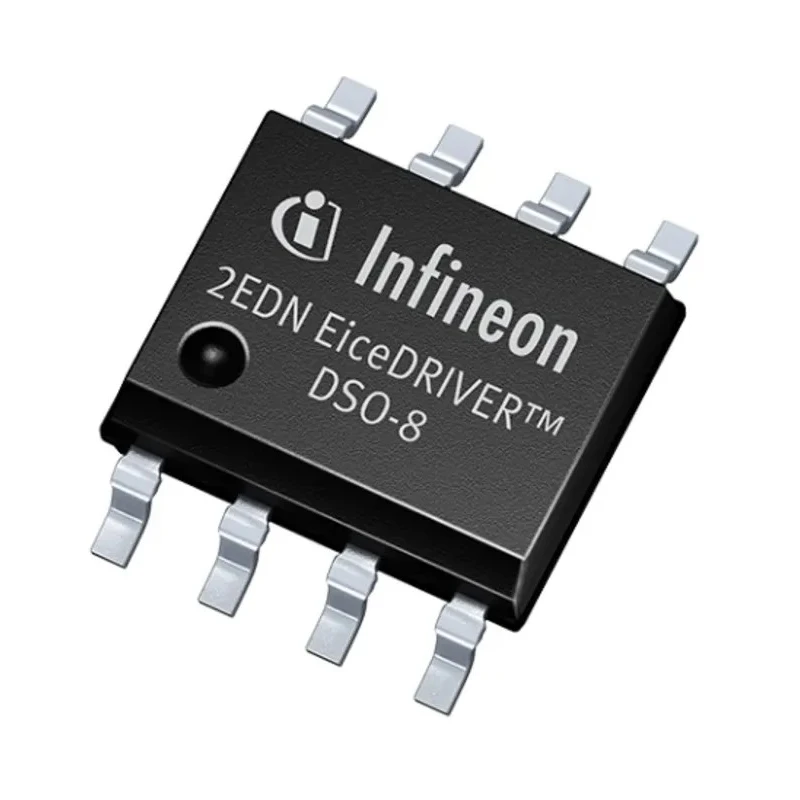

Infineon MOSFET Gate Driver 2 Outputs 5A Current 8-Pin DSO Package 20V Max Supply Voltage 2EDN8523FXTMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.73mm |
| Length | 4.93mm |
| Model | 2EDN8523FXTMA1 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | 2EDN8523F |
| Output Current | 5A |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 5.3ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 4.5V |
| Number of Drivers | 2 |
| Fall Time | 4.5ns |
| Driver Type | MOSFET |
Key Features
- Supports a broad voltage range up to 20V maximum supply voltage.
- Features very fast switching with 4.5ns fall time and 5.3ns rise time.
- Capable of driving two MOSFETs with rail-to-rail output stages ensuring low impedance.
- Compatible with low voltage TTL and 3.3V CMOS input signals including -10V input protection for ground bounce robustness.
- Operating temperature range from -40°C to 150°C for demanding industrial applications.
- Compact surface mount 8-pin DSO package with 4.93mm length, 3.94mm width, and 1.73mm height.
- Sinks and sources up to 5A output current per channel for efficient MOSFET driving.
Product Description
Infineon 2EDN8523FXTMA1 MOSFET Gate Driver offers dual channels capable of sinking and sourcing 5A currents, making it suitable for power management applications in industrial electronic circuits. The device's input signals are compatible with low voltage TTL and 3.3V CMOS logic levels. It supports a wide voltage handling capability from -10V to +20V to protect against ground bounce effects, which enhances reliability in noisy industrial environments.
The gate driver features very fast switching characteristics with a fall time of 4.5ns and a rise time of 5.3ns, ensuring efficient MOSFET turn-off and precise timing for power conversion. Its rail-to-rail output stage provides extremely low output impedance (0.7Ω and 0.55Ω), minimizing power losses and heat generation.
The device comes in a compact 8-pin DSO surface mount package with dimensions of 4.93mm length, 3.94mm width, and 1.73mm height, suitable for space-constrained PCB designs. It is designed for operating temperatures ranging from -40°C to 150°C which supports deployment in harsh environments encountered in automotive and industrial sectors.
This MOSFET gate driver is ideal for use in motor drives, power converters, switching power supplies, and other industrial automation equipment requiring fast and reliable MOSFET control.
Supports dual MOSFET outputs with 5A current capability each. Wide supply voltage range up to 20V for flexible application integration. Robust input protection down to -10V for improved noise immunity. Fast switching times for efficient power management.
Compact surface mount packaging for modern electronic assembly. Wide operating temperature range for industrial reliability.
This product belongs in the MOSFET Gate Driver category within power management ICs of semiconductors, serving vital functions in electronic components for industrial and embedded systems. Browse the Infineon range and power management ICs for varied solutions tailored to demanding electronic designs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 20V.
It is capable of sinking and sourcing up to 5A of output current per channel.
The DSO package dimensions are 4.93mm in length, 3.94mm in width, and 1.73mm in height.
This model operates within a temperature range of -40°C to 150°C.
The rise time is 5.3ns and the fall time is 4.5ns, providing fast switching characteristics.
Yes, it is compatible with low voltage TTL and 3.3V CMOS input signals.
It uses a surface mount type for installation.
This model features two outputs for driving MOSFETs.
The minimum supply voltage required is 4.5V.
It includes input protection down to -10V, enhancing robustness against ground bounce.
The output impedance is 0.7Ω and 0.55Ω, minimizing power losses and heat generation.
