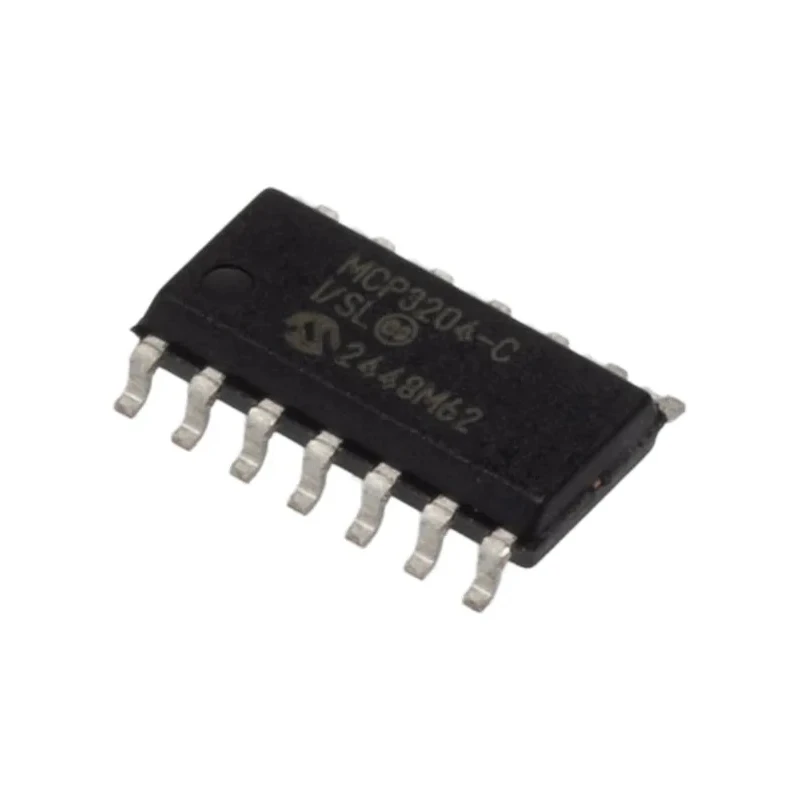

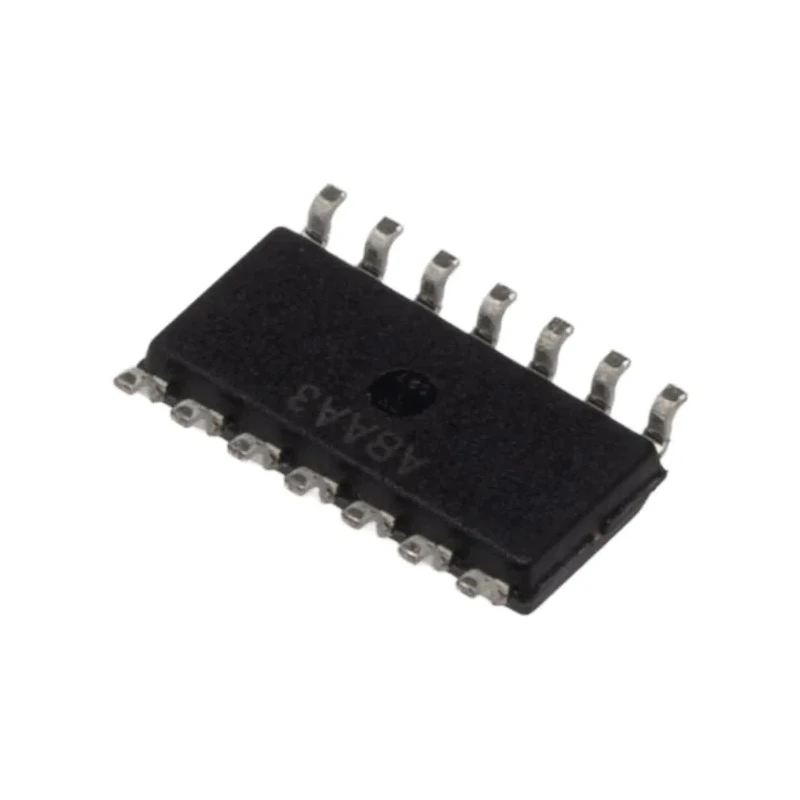

Microchip 4-Channel 12-Bit Successive Approximation Register ADC, 100 ksps, 14-Pin SOIC MCP3204-CI/SL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | MCP3204-CI/SL |
| Mount Type | Surface |
| Sampling rate | 100ksps |
| Series | MCP3204 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
Key Features
- Features 4 ADC channels for versatile analog input processing.
- Utilizes successive approximation register (SAR) architecture for precision.
- Provides 12-bit resolution ensuring accurate voltage conversion.
- Operates with a sampling rate of 100,000 samples per second.
- Compact 14-pin SOIC package suitable for surface mount PCB assembly.
- Wide operating temperature range from -40°C to 125°C for diverse environments.
- Compatible with 5 V minimum supply voltage and maximum supply up to 5.5 V.
- Adheres to automotive standard AEC-Q100 ensuring reliability in automotive applications.
Product Description
Microchip MCP3204-CI/SL is a 4-channel, 12-bit successive approximation register (SAR) analogue-to-digital converter (ADC) designed for high precision and speed. Housed in a 14-pin SOIC package, this surface mount device offers a fast sampling rate of 100 ksps and communicates via SPI interface.
It operates over a wide temperature range from -40°C to 125°C, with a supply voltage range of 5 V to 5.5 V, making it suitable for harsh industrial and automotive environments. This ADC features four inputs capable of converting analog voltage signals into accurate 12-bit digital outputs, ideal for sensor measurement, data acquisition, and embedded controller applications.
The device complies with AEC-Q100 automotive standards, underscoring its quality and reliability for automotive electronics. The compact dimensions, including an 8.65 mm length and 1.75 mm height, enable integration into tight PCB layouts.
Its SAR architecture provides a balance of speed and accuracy, suitable for various electronics projects requiring precise analog-to-digital conversion. It is widely used in industrial instrumentation, automotive sensors, and embedded system designs where reliable data conversion is critical.
4 ADC channels support multiple analog inputs. 12-bit resolution for detailed signal representation. 100 ksps sampling speed suitable for fast data acquisition. SPI interface facilitates easy microcontroller communication.
Compact 14-pin SOIC package for streamlined integration. Wide operating temperature and voltage range for versatility. AEC-Q100 certification for automotive reliability. Small physical dimensions support space-constrained applications.
Ideal for industrial, automotive, and embedded electronics use cases.
This ADC is an essential component for converting analog signals into digital values for processing in various control systems, instrumentation devices, and automotive modules. Explore more Microchip solutions and electronics components at EnvMart for industrial and technical applications.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum sampling rate of 100,000 samples per second (100 ksps).
It operates with a supply voltage ranging from 5 V to 5.5 V.
The dimensions of the MCP3204-CI/SL are 8.65 mm in length and 1.75 mm in height.
Yes, it adheres to the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This ADC accepts voltage as its input type, suitable for various sensor measurements.
It is designed for surface mount PCB assembly, fitting compactly into electronic designs.
