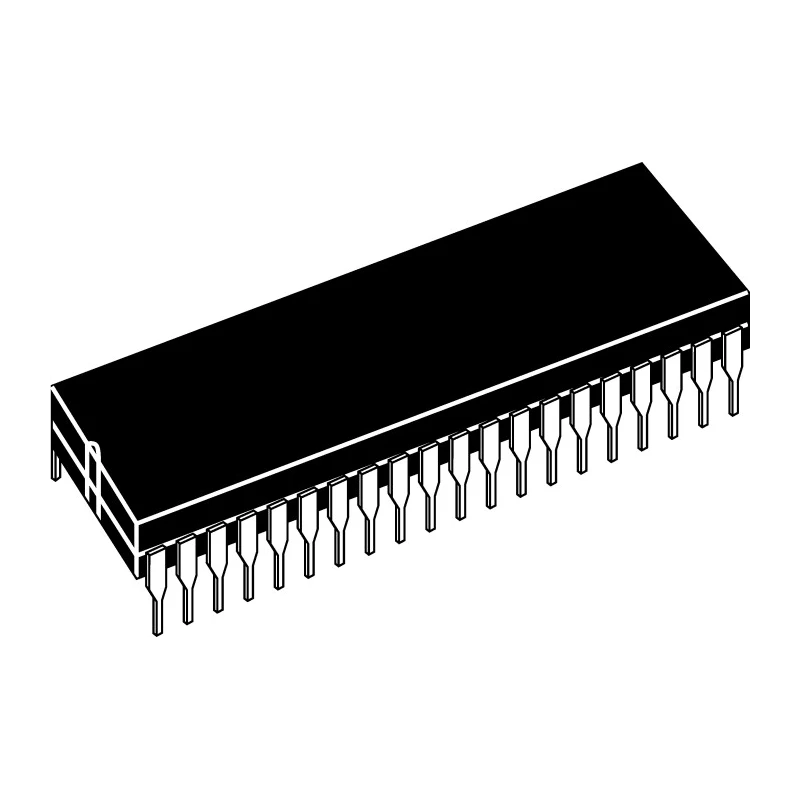

Microchip Dual Slope 12 bit 10 sps Analogue to Digital Converter 40-Pin PDIP TC7109CPL
Specifications
| Country of Origin | Thailand |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 6.25mm |
| Length | 52.38mm |
| Model | TC7109CPL |
| Mount Type | Through Hole |
| Sampling rate | 10sps |
| Series | TC7109 |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel/Serial |
| Architecture | Dual Slope |
| Pin Count | 40 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -5V |
| Number of ADCs | 1 |
Key Features
- Features a dual slope architecture for accurate conversion.
- Operates with a sampling rate of 10 samples per second.
- Mounted through hole in a 40-pin PDIP package for easy integration.
- Works within an operating temperature range of 0°C to 70°C.
- Supports parallel and serial interface types for versatile connectivity.
- Accepts voltage input type and operates on a supply voltage from -5V to 5V.
- Manufactured in Thailand, ensuring quality standards.
Product Description
Microchip TC7109CPL is a high-precision Dual Slope Analogue to Digital Converter (ADC) designed for accurate voltage input measurements in electronic circuits. This 12-bit ADC provides a sampling rate of 10 samples per second, making it ideal for applications that require reliable and steady analog signal conversion with minimal noise interference.
Housed in a through-hole 40-pin PDIP package, the TC7109CPL offers easy handling and integration into PCB assemblies. Its operating temperature range from 0°C to 70°C ensures performance stability in diverse environmental conditions commonly found in industrial and laboratory settings.
The ADC supports both parallel and serial interface types to provide flexible communication options with microcontrollers and other logic circuitry. Operating voltage ranges from -5V to 5V supply, allowing compatibility with a broad range of electronic systems.
The TC7109 series exemplifies Microchip's commitment to delivering robust and reliable semiconductor devices specialized for precise analog to digital data conversion. Manufactured in Thailand, this component meets stringent quality and manufacturing standards.
Features dual slope architecture for optimal accuracy. 12-bit resolution enables fine measurement granularity. Supported interface types: parallel and serial. Compact dimensions suited for electronic design constraints. Wide operational temperature tolerance suitable for industrial applications.
Voltage input type ADC for various sensor and signal processing applications. Single ADC channel integration simplifies system design. Stable performance across supply voltage variation from -5V to +5V.
This Microchip TC7109CPL ADC is suitable for diverse industrial, laboratory, and electronics manufacturing applications where precise analogue to digital conversion is critical. It is ideal for instrumentation, data acquisition, and control systems demanding stable and accurate analog signal measurement.
Explore more semiconductor and Analogue to Digital Converter options in the Electronics & Electricals category at EnvMart to find components matching your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC7109CPL ADC has a resolution of 12 bits, allowing for fine measurement granularity in analog signal conversion.
This model operates at a maximum sampling rate of 10 samples per second (10 sps).
The operating temperature range for this ADC is from 0°C to 70°C, making it suitable for various industrial and laboratory environments.
It accepts voltage input types, making it compatible with various sensor and signal processing applications.
The TC7109CPL supports both parallel and serial interface types for flexible connectivity with microcontrollers and other logic circuitry.
This ADC operates on a supply voltage range from -5V to 5V, allowing compatibility with a broad range of electronic systems.
The TC7109CPL is housed in a 40-pin PDIP package, designed for through-hole mounting in PCB assemblies.
The dimensions of this model are 52.38mm in length and 6.25mm in height.
This ADC integrates a single ADC channel, simplifying system design.
It features a dual slope architecture, which is designed for optimal accuracy in analog to digital conversion.
The TC7109CPL is manufactured in Thailand, adhering to quality standards.
This model is part of the TC7109 series of analog to digital converters.
