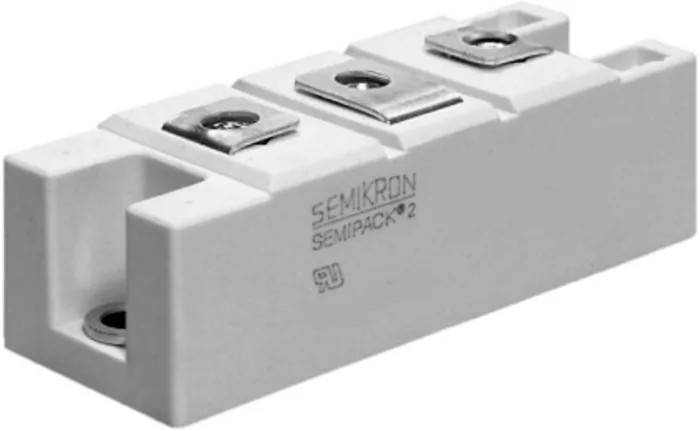

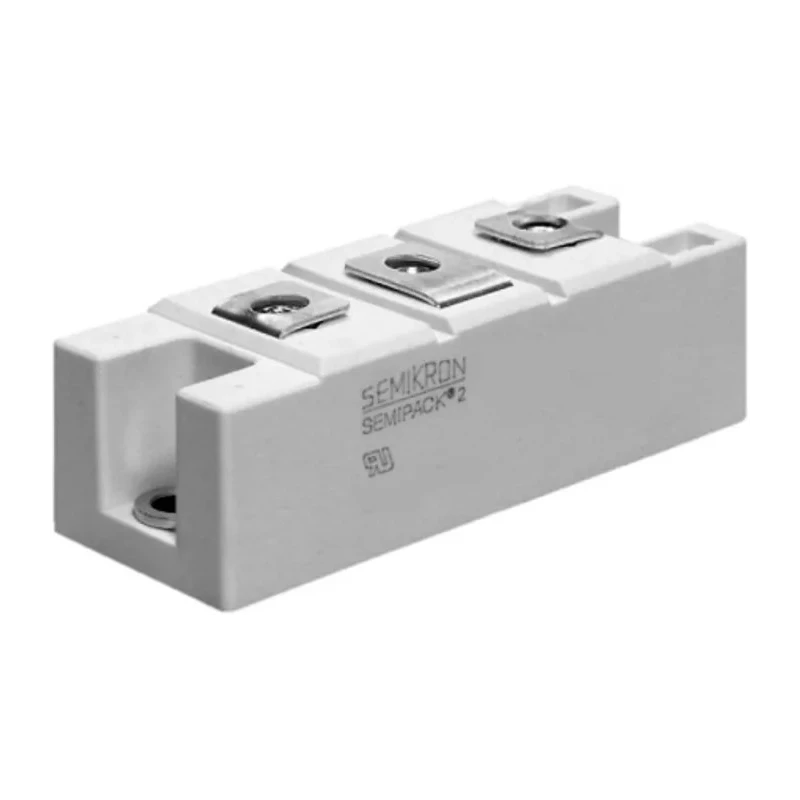

Semikron Danfoss 1600 V 150 A General Purpose 3-Pin Diode Module SEMIPACK2 SKKE 162/16

Semikron Danfoss SKKE 162/16 is a robust general purpose single diode module designed in a SEMIPACK2 package suitable for industrial and power electronics applications.

This diode module offers a maximum continuous forward current rating of 150 Amperes and can withstand peak reverse repetitive voltages up to 1600 Volts, making it ideal for high power rectification circuits.

The device is built for durability and reliability with features such as an aluminium oxide ceramic isolated metal baseplate to ensure excellent heat dissipation and precious metal contacts that provide stable electrical connections and high performance over prolonged operations.

The SKKE 162/16 includes a 3-pin panel mount package, facilitating straightforward installation in power control assemblies and converters. It operates efficiently within a broad temperature range from -40°C to 135°C, guaranteeing operational safety and resilience in industrial environments.

Key technical parameters include a maximum forward voltage of 1.5 V and a peak non-repetitive forward surge current of 6 kA, supporting transient overload conditions without damage. Mechanical dimensions are precisely 94 mm in length, 34 mm in width, and 30 mm in height, compatible with standard industrial system designs.

Heavy-duty single diode module for high-current rectification. SEMIPACK2 package for compact, efficient mounting. Aluminium oxide ceramic baseplate for superior thermal management. Precious metal contacts to ensure high reliability and performance.

Wide operating temperature range from -40°C to 135°C for robustness. Peak reverse voltage of 1600 V suitable for demanding applications. Rated for 150 A continuous forward current capacity. Supports transient surge currents up to 6 kA.

3-pin panel mount package for ease of installation. Exact dimensions: 94 mm (L) x 34 mm (W) x 30 mm (H).

This diode module is suitable for power electronics, industrial automation, manufacturing equipment, and energy conversion systems. Its high current and voltage ratings ensure reliable performance in demanding electrical environments.
