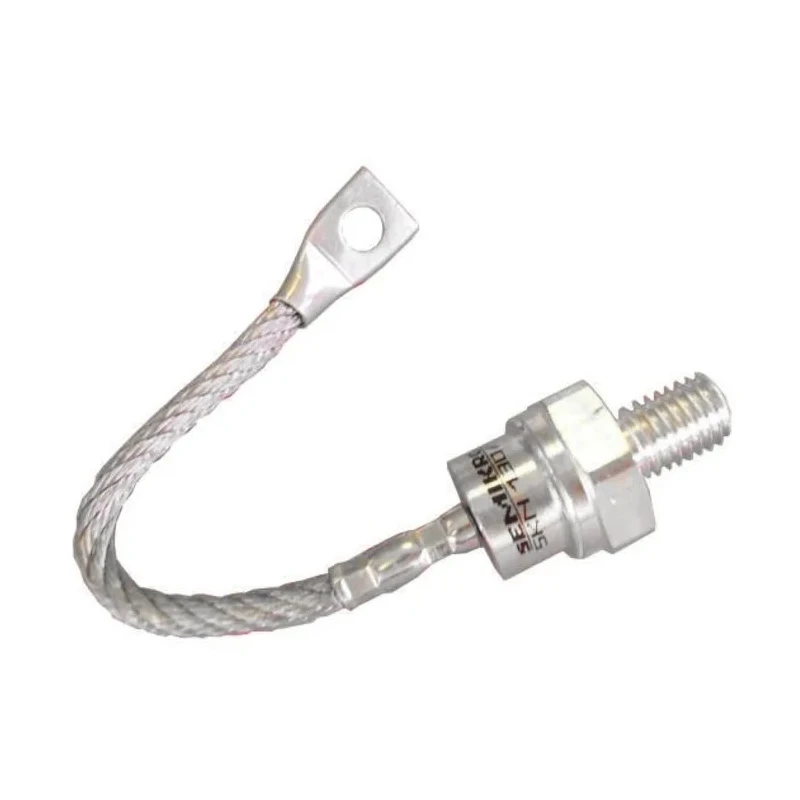

Semikron Danfoss Stud Mount Rectifier Diode 1200 V 240 A 2-Pin E-15 SKN 240/12

Semikron Danfoss SKN 240/12 is a high-current stud mount rectifier diode designed for demanding power electronics applications requiring robust and reliable semiconductor components. It features a maximum continuous forward current rating of 240 A and a peak reverse repetitive voltage of 1200 V, making it suitable for high power rectification tasks in industrial, manufacturing, and electronic systems.

The diode is housed in a durable E-15 package that offers excellent hermetic sealing and thermal coupling to the heatsink, ensuring stable operation under high current loads and elevated temperatures up to 180°C. This stud anode configuration with two pin connectors simplifies mounting and integration into power circuits.

With a maximum forward voltage of 1.4 V and a peak non-repetitive forward surge current of 6 kA, it provides efficient conduction and handles transient high current surges commonly encountered in power systems. The device operates within a wide temperature range from -40°C to 180°C, ensuring reliability in harsh environments.

Its compact dimensions of approximately 37 mm in height and length and 32 mm in width allow it to be incorporated into tight spaces while maintaining performance integrity. The low peak reverse current of 60 mA further enhances electrical stability and reduces losses.

Manufactured in Brazil, this rectifier diode meets industrial quality standards without certifications listed, emphasizing its suitability for critical power conversion and semiconductor applications.

This stud mount Rectifier Diode features a robust and hermetically sealed E-15 package. It has a maximum forward voltage drop of 1.4 V ensuring efficient operation. The diode configuration is stud anode with two pins for easy installation.

Operates reliably within a temperature range of -40°C to 180°C. Designed for high surge currents up to 6 kA peak non-repetitive forward surge current. Its compact dimensions are 36.93 mm in height and length, with a width of 32 mm.

Low peak reverse current of 60 mA maintains performance stability. Suitable for high power rectification applications with excellent thermal coupling. Manufactured in Brazil ensuring quality standards compliance. Ideal choice for industrial, power electronics, and semiconductor applications requiring reliable rectification.
