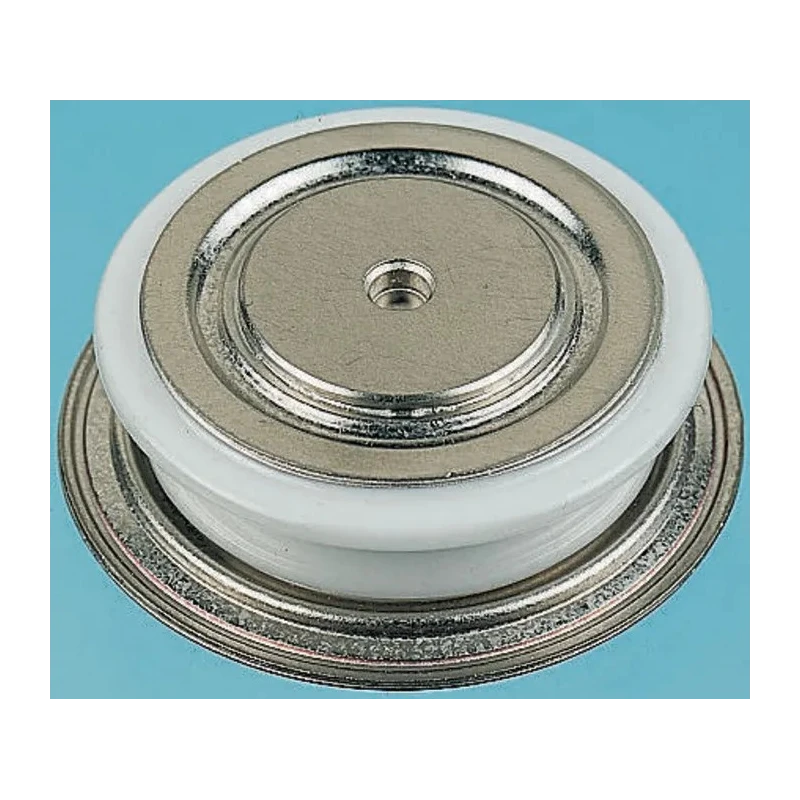

Dynex 1400 V 620 A Rectifier Diode, Rectifying Diode 2-Pin Type T DRD520T14
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 42mm |
| Brand | Dynex |
| Height | 13.5mm |
| Model | DRD520T14 |
| Width | 13.5mm |
| Maximum Operating Temperature | 190°C |
| Package Type | Type T |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 620A |
| Peak Reverse Repetitive Voltage Vrrm | 1400V |
| Diode Configuration | Single |
| Rectifier Type | Rectifying Diode |
| Peak Reverse Current Ir | 30mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5.9kA |
| Maximum Forward Voltage Vf | 1.45V |
Key Features
- This diode is designed with a 2-pin configuration suitable for rectifying applications.
- Maximum forward voltage is 1.45 V to ensure efficient conduction.
- Capable of operating between -40°C to 190°C, making it suitable for harsh environments.
- Supports a peak non-repetitive forward surge current of 5.9 kA for transient load handling.
- Constructed in a Type T package with compact dimensions of 13.5 mm width, height, and 42 mm diameter.
- Meets the automotive quality standard AEC-Q101, assuring reliable performance in automotive contexts.
- Single diode configuration tailored for precise rectification tasks in electronic circuits.
- Manufactured in China with a robust design to withstand up to 30 mA peak reverse current.
Product Description
Dynex DRD520T14 Rectifier Diode Type T is engineered to deliver reliable electronic circuit rectification with a peak reverse repetitive voltage of 1400 V and maximum continuous forward current of 620 A. This single diode component is housed in a Type T package, incorporating a two-pin design to facilitate straightforward integration in power electronic applications.
The diode operates efficiently within a temperature range from -40°C up to 190°C, enabling use in demanding industrial and automotive environments. The maximum forward voltage of 1.45 V ensures minimal conduction losses, while the peak non-repetitive forward surge current rating of 5.9 kA provides robust transient current tolerance during surge events.
Dimensions are precise and compact with a width and height of 13.5 mm and a diameter of 42 mm, making this component suitable for assembly in space-constrained electronic systems. Certified to automotive standard AEC-Q101, this diode meets rigorous quality and reliability requirements essential for vehicle electronics and related industrial sectors.
Applications include power rectification in industrial power supplies, automotive electrical systems, and other semiconductor-based electronic devices requiring durable and high current diode solutions.
This diode features a maximum continuous forward current of 620 A. Peak reverse repetitive voltage capability of 1400 V enhances voltage handling. Temperature endurance from -40°C to 190°C for broad application ranges. High peak non-repetitive surge current of 5.9 kA for transient resilience.
Compact Type T package with 2-pin configuration. AEC-Q101 automotive certification ensures quality standards. Maximum forward voltage drop of 1.45 V for efficient conduction. Manufactured in China with strict quality control.
Explore more from the Dynex semiconductor range to meet advanced electronic component needs in industrial, automotive, laboratory, and manufacturing domains.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating is 1400 V, making it suitable for high voltage applications.
This model can handle a maximum continuous forward current of 620 A, allowing it to manage significant power loads.
It operates efficiently within a temperature range of -40°C to 190°C, suitable for various environments.
The diode supports a peak non-repetitive forward surge current of 5.9 kA, providing robust transient current handling.
The diode has a width and height of 13.5 mm and a diameter of 42 mm, making it compact for integration into electronic systems.
It is housed in a Type T package, featuring a 2-pin configuration for easy integration.
This model meets the automotive quality standard AEC-Q101, ensuring reliability in automotive applications.
The maximum forward voltage drop is 1.45 V, which helps to minimize conduction losses during operation.
The peak reverse current rating is 30 mA, indicating its capacity to handle reverse current conditions.
This rectifier diode is suitable for power rectification in industrial power supplies and automotive electrical systems.
It features a single diode configuration, specifically designed for precise rectification tasks in electronic circuits.
This diode is manufactured in China, adhering to strict quality control standards.
