onsemi 200 V 2 A General Purpose Rectifier Diode 2-Pin Through Hole DO-15 EGP20D

Free Delivery in India | Lowest Global Shipping Charges

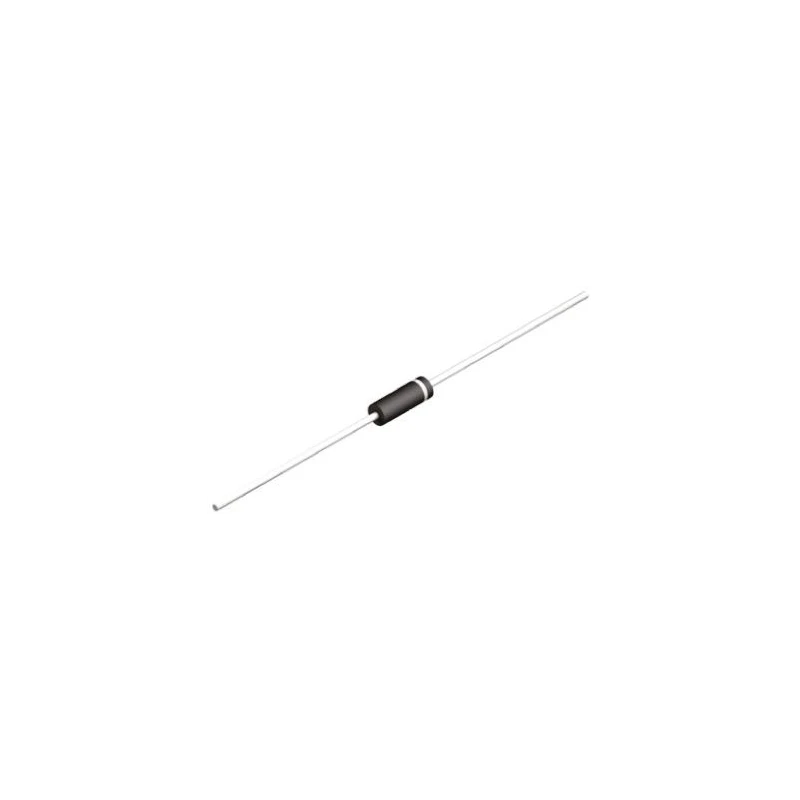

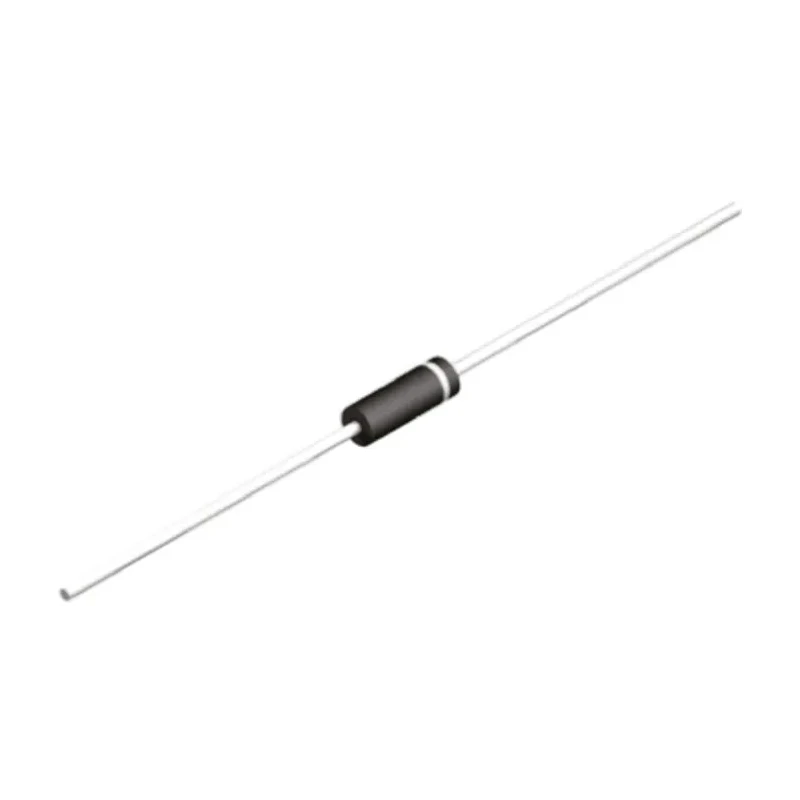

onsemi 200 V 2 A General Purpose Rectifier Diode 2-Pin Through Hole DO-15 EGP20D

Name: onsemi 200 V 2 A General Purpose Rectifier Diode 2-Pin Through Hole DO-15 EGP20D
Brand: onsemi
SKU: 374621
Price: 0.58 USD
Availability: InStock



Category Rectifier Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	3.6mm
Brand	onsemi
Height	7.6mm
Model	EGP20D
Width	3.6mm
Mount Type	Through Hole
Series	EGP20A - EGP20K
Maximum Operating Temperature	150°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Standards/Approvals	JEDEC DO-204
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	950mV
Peak Reverse Recovery Time trr	50ns

Key Features

This diode supports a maximum continuous forward current of 2 amps.
It features a peak reverse repetitive voltage of 200 volts.
The rectifier has a maximum forward voltage drop of 950 millivolts.
Designed with a DO-15 package for through-hole mounting applications.
It operates reliably across a temperature range from -65°C to 150°C.
Fast recovery time of 50 nanoseconds suitable for switching circuits.
Compact size with dimensions approximately 7.6 mm height and 3.6 mm diameter.
Configured as a single diode with two pins for general purpose rectification.

Product Description

onsemi EGP20D is a general purpose Rectifier Diode designed for through-hole mounting in a DO-15 package. It supports a maximum continuous forward current of 2 A and withstands peak reverse repetitive voltages up to 200 V, making it suitable for a variety of electronic circuit rectification requirements.

The device features a low maximum forward voltage of 950 mV which ensures efficient power handling with minimal losses. With a fast peak reverse recovery time of 50 ns, it is well suited for applications requiring high-frequency switching.

The diode operates reliably over a wide temperature range from -65°C to 150°C, making it versatile for industrial, automotive, and commercial electronics environments. The compact DO-15 form factor with 7.6 mm height and 3.6 mm diameter allows for easy integration on printed circuit boards through through-hole installation.

This 2-pin single configuration rectifier is ideal for power supply design, battery charging circuits, inverter protection, and general purpose rectification use cases in laboratory, manufacturing, HVAC, and electronic component assembly industries.

Package contains the EGP20D diode with JEDEC DO-204 standard compliance ensuring quality and compatibility with industry-standard sockets and circuits. This diode supports a maximum continuous forward current of 2 amps. It features a peak reverse repetitive voltage of 200 volts.

The rectifier has a maximum forward voltage drop of 950 millivolts. Designed with a DO-15 package for through-hole mounting applications. It operates reliably across a temperature range from -65°C to 150°C. Fast recovery time of 50 nanoseconds suitable for switching circuits.

Compact size with dimensions approximately 7.6 mm height and 3.6 mm diameter. Configured as a single diode with two pins for general purpose rectification. Explore the Electronics & Electricals category on EnvMart for more semiconductor components and rectifiers by onsemi and other manufacturers.
