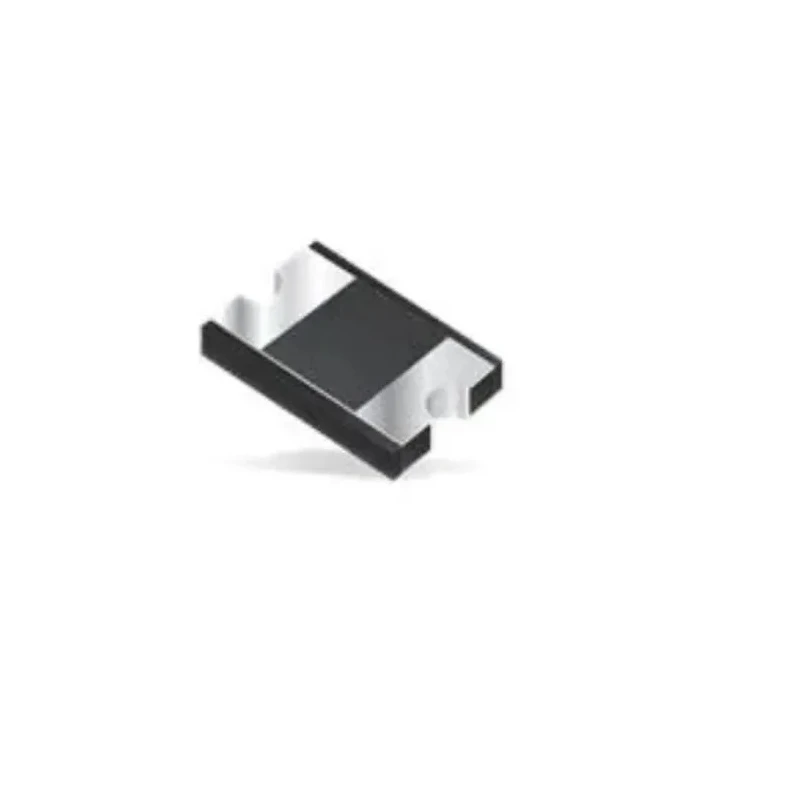

Bourns 400 V 3 A Surface Mount Rectifier Diode DO-214AA Package CD214B-S3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 5.2mm |
| Model | CD214B-S3G |
| Width | 3.6mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 96A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- This diode features a low forward voltage of 1V for efficient operation.
- Offers a peak non-repetitive forward surge current of 96A.
- Minimum operating temperature is -65°C and maximum operating temperature is 175°C.
- Complies with automotive standard AEC-Q101 ensuring reliability.
- Compact dimensions with length 5.2 mm, width 3.6 mm, and height 1.2 mm.
- Glass passivated construction enhances durability and performance.
- Halogen free and RoHS compliant for environmental safety.
- Low profile design supports PCB space optimization.
Product Description
Bourns CD214B-S3G is a high-performance surface mount rectifier diode in the DO-214AA (SMB) package size, designed for rectification applications with a maximum continuous forward current of 3A and peak repetitive reverse voltage of 400V.
This diode features glass passivation technology providing durability, low power loss, and high efficiency. It has a low forward voltage drop of 1V improving system efficiency and thermal management.
The device supports a wide operating temperature range from -65°C to 175°C, making it suitable for harsh automotive and industrial environments. It meets the automotive industry standard AEC-Q101, confirming its quality and reliability for demanding applications.
Its compact package dimensions (5.2 mm length, 3.6 mm width, and 1.2 mm height) make it ideal for space-constrained electronics. Additionally, it is halogen free and RoHS compliant, supporting environmentally responsible manufacturing.
Bourns CD214B-S3G is widely used in power rectification for industrial equipment, automotive electronics, and consumer electronics requiring efficient, reliable diode performance. This diode features a low forward voltage of 1V for efficient operation.
Offers a peak non-repetitive forward surge current of 96A. Minimum operating temperature is -65°C and maximum operating temperature is 175°C. Complies with automotive standard AEC-Q101 ensuring reliability. Compact dimensions with length 5.2 mm, width 3.6 mm, and height 1.2 mm.
Glass passivated construction enhances durability and performance. Halogen free and RoHS compliant for environmental safety. Low profile design supports PCB space optimization. Ideal for rectification in power applications requiring high efficiency.
Explore the full range of semiconductor components and Rectifier Diodes at EnvMart for your industrial, automotive, and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3A.
This diode has a peak reverse repetitive voltage rating of 400V.
The dimensions of this model are 5.2 mm in length, 3.6 mm in width, and 1.2 mm in height.
The operating temperature range for the CD214B-S3G is from -65°C to 175°C.
The maximum forward voltage drop for this model is 1V.
It offers a peak non-repetitive forward surge current of 96A.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
This model uses the DO-214AA package type.
The Bourns CD214B-S3G is designed for surface mounting.
The peak reverse current for this model is 5μA.
Yes, it is halogen free and RoHS compliant, supporting environmental safety.
It features glass passivation technology, enhancing durability and performance.
