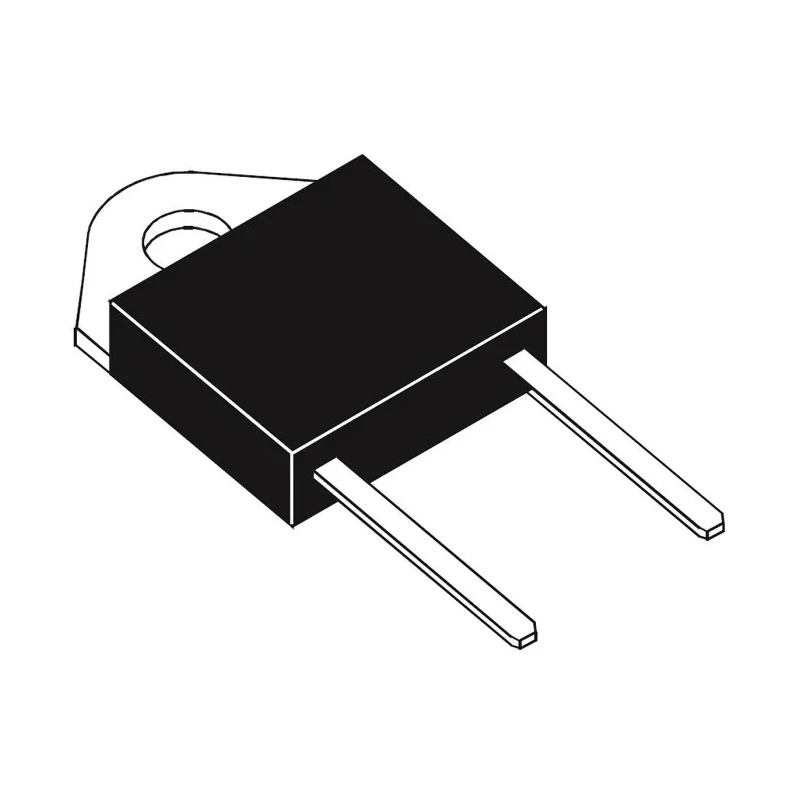

STMicroelectronics 600 V 30 A General Purpose Rectifier Diode Through Hole DOP3I Package STTH30R06PI

STMicroelectronics STTH30R06PI is a high-performance general purpose Rectifier Diode designed for industrial and commercial electronic applications. Featuring a robust Through Hole mount and DOP3I package type, it provides reliable electrical performance for circuits requiring a maximum continuous forward current of 30 amperes and a peak reverse repetitive voltage of 600 volts.

The diode is single configured with 2 pins and optimized for fast switching, evidenced by its quick peak reverse recovery time of 70 nanoseconds, enhancing efficiency in power management and rectification tasks. Operating comfortably within a temperature range from -65°C to 175°C, it is suitable for a wide array of environments including industrial controls, power supply circuits, and automotive electronics.

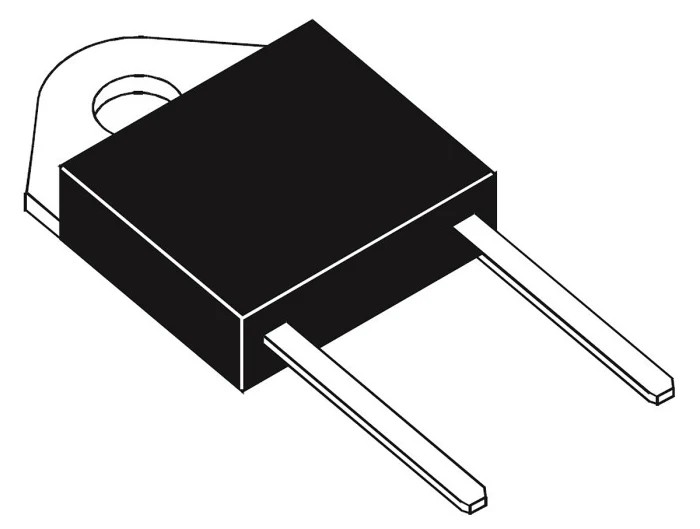

Key physical dimensions include a body length of 15.5 mm, width of 13.1 mm, height of 4.6 mm, and a diameter of 3.55 mm, making it compact for space-constrained PCB layouts. The maximum forward voltage drop of 2.5 V helps to minimize conduction losses, while a peak reverse current of 800 µA ensures reliable blocking characteristics. The diode can withstand surge currents up to 300 A momentarily, ensuring durability against transient overloads.

Manufactured in the Philippines, this component meets the essential demands of semiconductor quality. Its general purpose rectifier classification makes it suitable for a broad spectrum of applications including electronic power conversion, voltage regulation, and as a component in rectifier bridge assemblies.

Maximum continuous forward current: 30 A. Peak reverse repetitive voltage: 600 V. Peak reverse recovery time: 70 ns. Wide operating temperature range from -65°C to 175°C. Peak non-repetitive forward surge current of 300 A.

Low forward voltage drop of 2.5 V for energy efficiency. Compact DOP3I package suitable for through-hole PCB mounting. Two-pin configuration facilitating straightforward integration. Low peak reverse current of 800 µA for stable operation.

Dimensions optimized for space efficiency in electronic designs.

This diode is ideal for use in industrial electronics, power rectification systems, automotive electronics assemblies, and semiconductor applications requiring dependable general purpose rectifier components. EnvMart provides a reliable source to browse and purchase STMicroelectronics' semiconductors and electronic components for diverse engineering needs.
